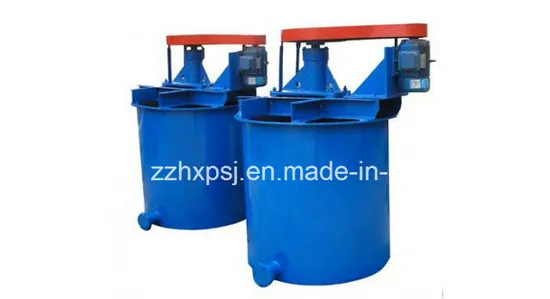

Flotation Usage Agitation Tank for Ore Pulp Mixing

Product Description

Flotation Usage Agitation Tank For Ore Pulp Mixing : Effective Volume: 0.26-30m³ Power:1-40KW Processible Materials:Metals and non-metals. Application:Ore beneficiation, construction materials, road and railway construction. Agitation Tank is the necessary equipment to extend the medicament reaction time and strengthen the drug reaction quality. It is mainly used to mix pulp before flotation in beneficiation process and make potions and pulp fully mixed. Also it can be used for roiling mixing or dilution mixing in chemical industry.
Mixing Tank Agitation Tank Advantages: 1.The blending system adopts single-direction or double-direction wall scraping blending and frequency conversion speed adjustment to satisfy production of different technological requirement. 2.Materials can be heated or cooled according to technological requirement. The heating methods such as steam or electric heating can be selected according to customer requirements. 3.Various forms of blending vanes are suitable for production of different types of products. 4.Made of imported stainless steel. The tank body and pipe are subjected to mirror polishing. 5.Bottom installation type dispersing head and pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials. 6.The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such date as temperature and blending rotating speed etc.
Mixing Tank Technical Parameters:

Model	Internal diameter (mm)	Internal Height (mm)	Volume (m3)	Impeller speed (r/min)	Impeller diameter (mm)	Weight (t)	Motor power		Dimension (LxWxH) (mm)
							Model	Power(KW)
XB-500	500	500	0.098	600	200	0.15	Y90L-6	1.1	600×566×954
XB-750	750	750	0.33	530	255	0.6	Y90L-4	1.5	1131×880×1241
XB-1000	1000	1000	0.58	530	300	0.99	Y100L1-4	2.2	1131×1130×1492
XB-1200	1200	1200	1.4	235	400	1.05	Y132M1-6	4	1500×1480×1800
XB-1500	1500	1500	2.2	355	500	1.2	Y132M2-6	5.5	1750×1640×2190
XB-2000	2000	2000	5.46	230	550	1.6	Y160M-6	7.5	2380×2162×2850
XB-2500	2500	2500	11.2	230	650	3.44	Y160L-6	11	3036×2716×3543
XB-3000	3000	3000	19.1	210	700	4.61	Y225S-8	18.5	3604×3216×4250
XB-3500	3500	3500	30	230	850	7.28	Y225M-8	22	3940×3766×538

Contact: Ms Sara Pang Mobile phone : 0086137 8347 1727

---
