Tianyi Wheel Loaders, Wheel Excavator, Forklifts, Truck, Electric

Product Description

Product Name:
WHEEL EXCAVATOR
Advantages:
.New appearance designed by joint R&D with well-known universities, simple but powerful
·Advanced patent transmission box and axle pass through finite element analysis and fatigue resistance testing to have continuously upgrades in reliability
.Continuously improved hydraulic system to realize more stable, flexible and high efficiency work
.Excellent grade ability and powerful digging force can fit for all kinds of different working conditions
.Heavier operating weight compared to other domestic brands to have much reliable mechanical performance
.Various attachments to working indifferent working places
.Various emissions engine available for European, North America and other countries.

Model No.	TYWE069W	TYWE084W	TYWE110W	TYWE120W		Model No.	TYWE069W	TYWE084W	TYWE110W	TYWE120W
Operating weight	6900kg	8400kg	9800KG	10700kg		G-G-Rotation radius	1842	2130	2130	2305
Bucket capacity	0.23-0.28m3	0.28/0.33m3	0.28/0.33m3	0.35m3		H- H-Tire wheelbase	2400	2400	2390	2400
Engine No.	YC4FA65-T300	YC4FA75-T300	YC4FA85-T300	YC4FA85-T300		I - I - Tire size	825-16	825-16	825-20	900-20
Engine power	48KW/2200rpm	55KW/2200RPM	62.5KW/2200RPM	62.5KW/2200rpm		J- J-Rotation platform width	1910	2015	2200	2240
Fuel tank capacity	120L	120L	120L	160L		K-K-Max.digging height	6768	7568	8055	7800
Walking speed	30 Km/h	30 Km/h	30 Km/h	28 Km/h		L-L-Max.Dumping height	5023	5738	5984	5900
Swiveling Speed	10 r/min	12 r/min	12 r/min	13 r/min		M-M-Max.Digging depth	3419	3558	2969	4050
Grade ability	30°	30°	35°	35°		N-N-Max.Digging distance	6865	7127	7537	7652
Bucket digging force	31.5KN	45KN	48 KN	55KN		Jig Max. Dumping height	4593	5718	5984	5600
Hydraulic pump type	Electro hydraulic Pump	Load-sensitive Plunger Pump	Electra hydraulic Pump	Electro hydraulic Pump		Jig Max.Lifting weight	400Kg	600Kg	600Kg	1000Kg
A- A-Length in transportation	6079	6667	6815	7159		Jig Max.Opening size	1240	1240	1240	1240
B- B-Width in transportation	1910	2130	2200	2240		Jig Min.Opening size	205	205	205	155
D- D-Height in transportation	2830	2850	3170	3150		Jig Max.Lifting height	7262	7984	8300	7865
E-E-Ground clearance for counter weight	1050	1045	1160	1075		Jig Max.Lifting distance	6720	6929	7515	8055
F-F-Min.Ground clearance	351	370	310	310

Product Name:

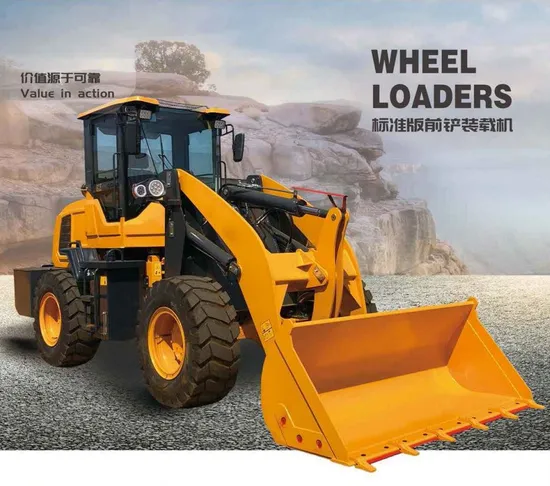

WHEEL LOADERS
AVALAELE AITTACHMENTS:
Log Fork
Pallet Fork
Quick Change
Grass grapple
Sweeper
Circular Clip
2in1 Bucket
Mixing Bucket

Overall Performance/Models			HL916	HL918	HL920	HL926	HL928	HL930	HL936	HL938	HL939	HL946
General Machine Performance	Operating weight	KGS	2150	2800	3100	3400	3500	3700	4750	5800	6000	9300
	Length	mm	4750	5140	5460	5500	5600	6100	6200	6600	6740	7200
	Width	mm	1300	1600	1800	1800	1900	2030	2000	2050	2050	2400
	Height	mm	2500	2670	2700	2700	2720	2720	2780	2860	2960	3300
	Wheel base	mm	2020	2050	2200	2200	2250	2350	2400	2780	2810	3150
	Wheel track	mm	1120	1350	1400	1400	1400	1450	1580	1670	1700	2100
Bucket Performance	Rated load	KGS	800	1200	1500	1500	1600	1800	1800	2000	2500	3000
	Standard bucket capacity	m3	0.3	0.4	0.5	0.6	0.7	0.7	0.8	1	1.1	1.7
	Bucket width	mm	1300	1580	1800	1800	1900	2000	2000	2000	2200	2400
	Dumping height	mm	2400	2800	3200	3200	3200	3500	3500	3600	3600	3800
	Dumping reach	mm	600	650	700	700	800	850	900	950	800	1200
	Max.raising height	mm	3500	3750	4010	4010	4030	4480	5000	5300	5400	5600
Engine Performance	model		ZN390BT-25G	YUNNEI490	YUNNE1490	YUNNEI 490	YUNNEI 490 Turbo	YUNNEI 490 Turbo	YUNNEI4102 Turbo	YUNNEI4102 Turbo	YUCHAI4105 Turbo	DONGFANGHONG 6105T/ WEICHAl Deutz

---
