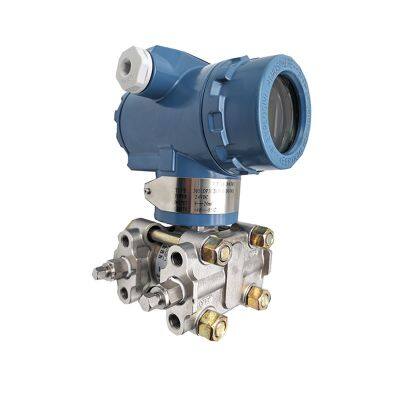

Steam Pressure Transmitter is intelligent pressure transmitter adopts metal capacitance sensor technology and micro silicon solid composite sensor technology, modular design, composed of electronic sensor unit with EEPROM and the push-button and EEPROMDE amplification unit. By the full -range temperature compensation for differential pressure/ pressure/absolute pressure sensor, so the intelligent pressure transmitter has excellent performance and characteristic.
KD3051 pressure or differential pressure transmitter for measuring liquid, gas or steam, as well as measuring the level and density of the liquid. And work with throttling element for measuring the flow rate of liquid, gas, steam .It can be applied to a variety of harsh environments and hazardous corrosive media.
Process Fluid:
| Display:
|
Liquid, Gas or Vapor
| 5 Digits programmable & 0-100% Bargraph
|
Application:
| Display Unit:
|
Absolute Pressure, Gauge Pressure,
| Standard 22 different engineering unit
|
Vacuum
| 5 Digits programmable for special unit
|
Measuring Range:
| Keyboard:
|
0 - 10 Kpa ~ 0 - 30 Kpa ( Minimum )
| 3 internal keys for Programming
|
0 - 32 Mpa ~ 0 - 70 Mpa ( Maximum )
| and output setting
|
Turndown Ratio:
| Current Output:
|
100 : 1
| 4 - 20 mA 2 wires with Hart Signal
|
Accuracy:
| Load：
|
+/- 0.075% of span
| Rohm=(Vdc-9)*50
|
Stability:
| Power Supply:
|
+/-0.15% of URL for 2 years
| 9 ~ 36 VDC
|
Working Temperature:
| Digital Communication:
|
-25 to +95 ℃
| Hart Protocol (Compatible)
|
Max. Pressure:
| Damping:
|
70 Mpa
| 0 - 32 seconds
|
Connection Material:
| Response Time:
|
SUS 304 / SUS 316
| 100mS
|
Diaphragm Material:
| Mounting:
|
SUS 316L / Tantalum
| Direct installation or bracket on 2" Pipe
|
Housing
| Humidity Limit:
|
cast aluminum alloy with color paint
| 0 to 100% Relative Humidity
|
Cable Entry:
| Zero Calibration:
|
M20 Conduit Threads / 1/2" NPT( Female )
| Automatic zero calibration by push-button
|
Process Connection:
| Ambient Temperature:
|
1/2" NPT, 1/2" BSP ,M20X1.5
| -25 to +85 ℃
|
Temperature Effect:
| Dimensions:
|
+/-0.18% ~ +-0.5% of span per 20 ℃
| 102 mm ( W ) * 160 mm ( H ) * 130 mm ( D )
|
Vibration Effect:
| Protection Class:
|
+/-0.05% of URL per g to 200 Hz
| IP65 ( Standard )
|
EMI/RFI Effect:
| Explosion-proof
|
Follow SAMA PMC 33.1 from 20 to 1000
| Intrinsically Safe EEx ia IIC T5 (Standard) Explosion proof Ex D IIB T5
|
