School Laboratory Autoclave Vacuum Autoclave Composite Autoclave Manufacturer

Product Description

Product Description

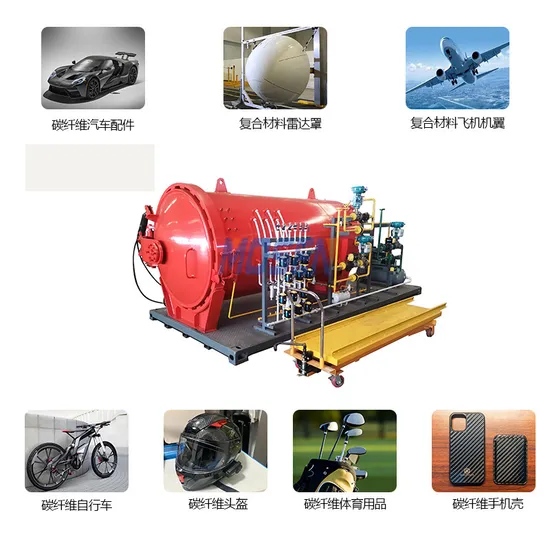

New School Laboratory Autoclave Vacuum Autoclave Composite Autoclave Manufacturer

Our company's main production equipment includes: large autoclave, carbon fiber autoclave, composite autoclave, glass fiber autoclave, prepreg curing autoclave, auto parts autoclave, civil autoclave, small test Autoclave, etc., with complete equipment classification and various models to meet production needs. In response to the needs of different users for different products, we provide customers with comprehensive services such as sample testing and employee training.
With excellent management system and perfect service system, our company's equipment has been exported to all over the world, has been highly praised and recognized by customers, and is widely used in aerospace, Chinese weapons, railways, ships, fishing gear and other fields.
Основное производственное оборудование нашей компании включает в себя: большой автоклав, автоклав из углеродного волокна, автоклав для композитов, автоклав из стекловолокна, автоклав для отверждения препрега, автоклав для автозапчастей, гражданский автоклав, небольшой испытательный автоклав и т. д., с полной классификацией оборудования и различными моделями для удовлетворения потребностей производства. потребности разных пользователей в разных продуктах, а также предоставлять клиентам комплексные услуги, такие как тестирование образцов и обучение персонала.
Благодаря превосходной системе управления и безупречной системе обслуживания оборудование нашей компании экспортируется по всему миру, получило высокую оценку и признание клиентов, а также широко используется в аэрокосмической отрасли, китайском оружии, железнодорожном транспорте, судах, рыболовных снастях и т. д. другие поля.
Product Parameters

Description	Unit	Specifications And Parameters
Max. Working Pressure	bar	18
Max. Working Temperature	ºC	200
Max. Pressurization Rate (Average)	Bar/min	0-1
Max. Depressurization Rate (Average)	Bar/min	0-1
Max. Heating Rate(Air Average)	ºC/min	0-3
Max. Cooling Rate (Air Average)	ºC/min	0-3
Temperature Uniformity At Steady State	ºC	≤±2
External Shell Temperature At Max. Temperature	ºC	≤55
Quick Openning Door Mode	-	Hydraulic Door Opening
Working Medium	-	Compressed Air Or Nitrogen Pressurization
Heating Mode	-	Stainless Steel Electric Heating
Quantity Of Circulating Fan Motor	SET	1
Thermocouple Type	-	Type K Or J
Vacuum Ports	PIECE	8
Min. Vacuum Pressure	bar	-0.85
Standard Control Mode	-	PLC Logic Control
Insulation Form	-	Internal Insulation
Exterior Color	-	Customized

Our company can customize composite autoclaves according to customer requirements. Product Application
Certifications
High quality, safety, easily operation, control and longer serve life are primary design and fabrication considerations. All our industrial autoclaves are integrated as a seamless system by the powerful controlling system with interactive screens and multilevel security.
♦Turn key solution for large, high productive units to lab autoclaves.
♦Integrated system design with over 20 years of industrial experiences.
♦Professional modular manufacturing.
♦Computer control system specifically for composite autoclave use.
Our Advantages
Our company's carbon fiber composite autoclave control system software fully combines process requirements and has the following advantages:
When using the host computer + PLC control mode, a control method developed by our company is adopted that is different from the traditional control method. The control of temperature and pressure is more accurate, the temperature overshoot can be effectively suppressed, and the amount of cooling is small. The pressure valve operates less frequently, saving gas consumption. Equipment energy consumption is reduced.
The control software has a wide range of adaptability to various products, and all types of products can achieve good control. In the prepared product curing process documents, the equipment parameters for the process can be recorded to achieve the best process status.
The control software interface is intuitive and displays the working status of the main components of the equipment. It also sets two states: "automatic" and "manual". That is, the process can be fully automatically executed in the "automatic" state, and it can also be executed in the "manual" state. Adjust the status of each component one by one for control to meet special uncertain test requirements.
The puppet display interface is specially designed. For parts with large size and high requirements, it can visually display the placement position of the thermocouple on the mold, monitor the temperature trend of each position during the curing process, and facilitate timely adjustment when abnormalities occur, thus ensuring product quality. the quality of. This feature is useful for large components in the development stage.
For vacuum control, our company has specially designed the functions of vacuuming and measuring vacuum in different ways. In actual use, due to damage to the vacuum pipeline or process requirements, vacuuming and vacuum measurement need to be combined flexibly. This function is very practical for large products, multiple products that are cured at the same time, and applications that require direct measurement of the vacuum degree in the vacuum bag. Company Profile
Customer Visit
We will deliver an Automatic Industrial Aerospace Prepreg Composite Autoclave For Carbon Fiber Pressure Vesselby LCL/20'FCL/40'FCL depending on your order.
Before delivery, our professional technician will do a trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container. 2024 School Laboratory Autoclave Vacuum Autoclave Composite Autoclave Manufacturer

---
