Multi-Use Automatic Disk Harrow New Farming Equipment for Home Tractors

US$3,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Certification
EU, CE
Color
Customised
Warranty
1 Year
Key Selling Points
High Productivity
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Brand Name
Hr
Dimension(L*W*H)
Standard Size
Transport Package
Standard Packing
Specification
2100 KG
Origin
Shandong, China
HS Code
8432210000
Production Capacity
2000set

Product Description

Product Description

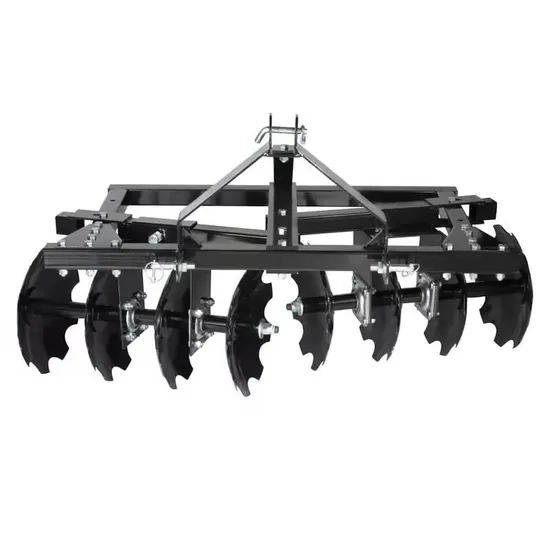

Disc Harrow1BZ series hydraulic offset heavy duty disc harrow has the high working efficiency , strong capability into the soil, and afterplough loosen soil. This harrow can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. It ismade of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydrauliclifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of theharrow is dramatically improved.
Product Parameters
model 1BQDX-1.3 1BQDX-1.6 1BQDX- 2.2 1BQDX-2.6 1BQDX-3.0 1BQDX-3.4
Tillage 1400 1800 2200 2600 3000 3400
Deep cultivation 100-140
Rake blade diameter 460mm/ 18inch
Thickness of rake blade 3
Number of ra ke blades 16 20 twenty four 28 32 36
weight 340 390 440 490 495 530
Supporting power 30-35 35-45 45-55 60-75 75-80 80-95
Mounting form Three - pointed mounted with tractor

Main Technical Features
Main Feature 1)Steel selection of China's best Angang and Lingyuan steel, good quality is guaranteed. 2)Heat treatment process, strict control of temperature and time, high hardness and good toughness of disc blade. 3)Automatic spray equipment, disk surface smooth color uniform beautiful.
Detailed Photos
Packaging & Shipping
