Basic Info.
Application
Home, Communication Electronic Products, Industry, Special Equipment
GSM Bands
850/900/1800/1900mha
Specification

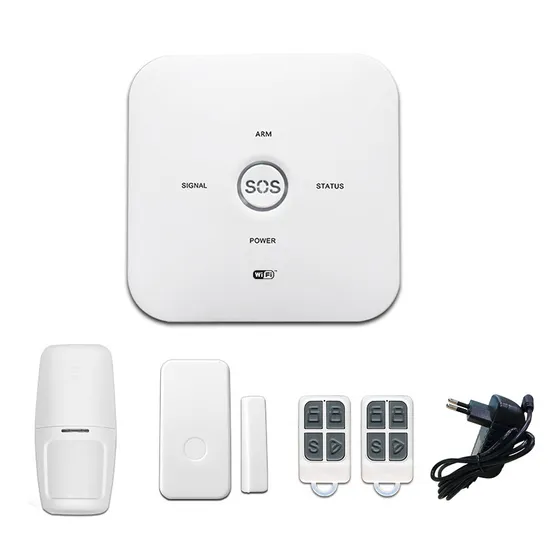

wireless home security alarm system
Production Capacity
50000/Months
Product Description
This system
will provide full protection in 24 hours all around the year for your house and
property.
The wireless alarm system adopts the advanced digital security technology, it
is of high reliability and low false alarm rate. Though the design is simple,
function is very strong. It includes the functions of anti-fire, anti-burglar,
anti-gas, anti-intrusion and SOS emergency, etc. The wireless detectors which
pair with the system have humanized functions of anti-interference, avoiding
the false alarm, etc. This alarm system is widely used in family, factories,
schools, shops, convenience stores, villas, residential areas where needs to be
protected.
To ensure your safety and proper use the system, please read this user manual
carefully before installation. Please contact your local distributor or authorized
technology service center for consulting if you encounter problems during
installation.You also can call the after-sale service phone numbers of our
company, our engineer will help to solve the problems.
1. Main Feature
__________________________________________________________________________________________850/900/1800/1900Mhz GSM Frequency for global use
Support 24 wireless zones
Five zone types for choose: Normal / Stay / Smart /Emergency / Close
Zone
Can store three groups of time arm and disarm function, each group can be
customized by week, avoid manual frequent arm and disarm, to realize
intelligent automatic control
Can set 4 groups of alarm phone numbers and 3 groups of SMS phone
numbers
Voice prompt for all the operations
Low battery alert of the accessories
Build-in rechargeable battery
AC off SMS remind
Built-in siren
Support wireless siren(433Mhz frequency)
Wireless learning code, fast and easy to add new accessories
Can revise zone name
Door Sensor two-way function
2. Technical Parameter
__________________________________________________________________________________________Input Voltage: DC9V-12V
Static Current: <25mA
Alarm Current: <450mA
GSM Frequency: Support GSM850/900/1800/1900MHz
WIFI :2.4G
Back-up battery: Lithium battery, DC7.2V
Siren: 85dB
AlarmHostRF receiving frequency: 433MHz (±75MHz), PT2262/1.5-4.7MΩ;
EV1527/300K
Alarm Host RF Transmitting frequency: 433MHz(±75MHz),PT2262/1.5-4.7MΩ;EV1527/300K
Factory default password: 1234
Working temperature: -10ºC~+50ºC
>>
