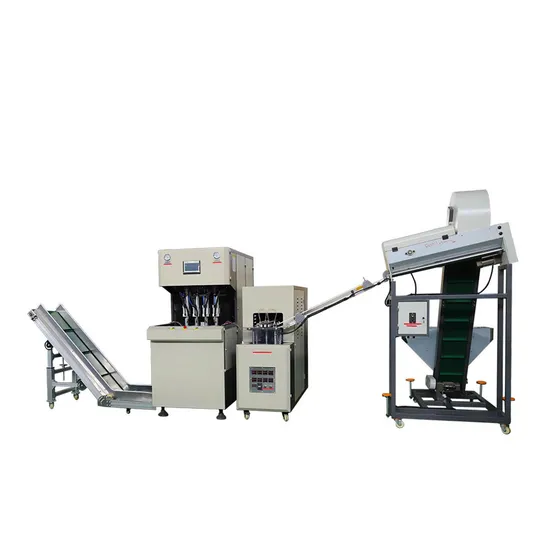

Semi-Auto Small Blow Molding Machine for Pet

Product Description

Description for semi-automatic blowing machine
Product max volume:2L
Suitable for blowing bottles between 150ml to 2000ml
Necessary auxiliary devices:High pressure air compressor, Air filter.

Main machine (blowert + oven)	Model type	Tech data
Product Spec	Max. product volume(L/cav)	2
	Max. preform neck size(mm)	100
	Max. product diameter(mm)	180
	Max. product height (mm)	300
	Cavities	2
Blow molding part	Die force (KN)	100
	Die stroke (mm)	270
	Max. mould size(mm)	390*345
	Mould thickness	Adjustable
	Mould spacing(mm)
	Max. pulling stroke(mm)	400
	Operation pressure(Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	200
	Blow pressure(Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	300
	Output(pcs/h)	1000-1800
	Machine size(LxWxH)(m)	1.46*0.58*1.8
	Machine weight(KG)	650
Oven	Temperature grade(rate)	8
	Heating time(S)	90-200
	Voltage(V)	220 or as your request
	Frequency(HZ)	50/60
	Total power(KW)	16
	Oven Size (LxWxH)	1.35*0.55*1.15
	Oven weight (KG)	300

Semi-automatic blow moulding machine
Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It's the revolutionary product of industrial control.
High responsiveness pneumatic components,action timely and precisely
Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation
Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.

Technology advantage:
Special design,high rigid compound die structure
Wide adaptability, suitable for every type mould thickness
Adjust convenience
No mould rolling out
More energy conservation,no need much air supply
High burnish principal axis, with very precise polishing, light action and low noise.
Short mould stroke,quick action
All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
Hig dead-weigh, ensure the steady during the opeartion

---
