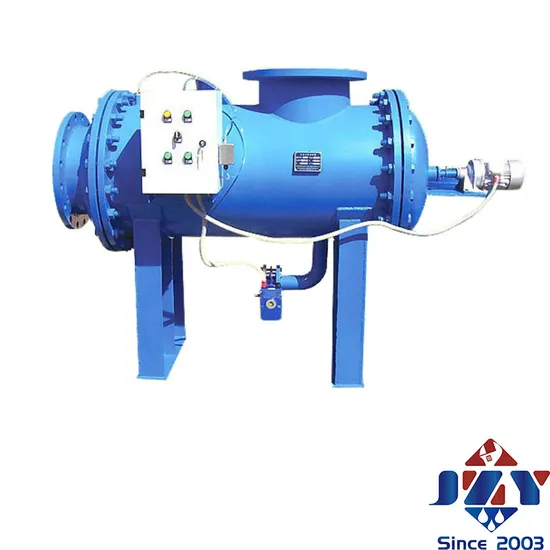

3t/H Differen-Tial Pressure Type Full-Automatic Self-Cleaning Filter Plant

Product Description

Product Description
IntroductionThis products can continuous removal of contamination from liquids.This is an industrial filtration system that requires no human intervention.
Automatic self-cleaning filter generally has two types:
1.Suction nozzle type
2.Brush type self-cleaning filter
Moreover JZY self-cleaning filter according to the two different cleaning methods, the principle is also slightly different. Product ParametersProduct Parameters

Automatic brush filter technical parameters (vertical)
model	Import and export(mm)	Flow rate(m³/h)	Sewage outlet(mm)	Power consumption(KW)	Net weight(KG)
JZY-50	50	30	32	0.5	130
JZY-65	65	35	36	0.5	135
JZY-80	80	50	40	0.5	150
JZY-100	100	70	40	0.5	150
JZY-125	125	125	40	0.5	160
JZY-150	150	160	50	0.6	165
JZY-200	200	280	50	0.6	286
JZY-250	250	400	50	0.8	300
JZY-300	300	650	65	1.2	320
JZY-350	350	860	65	1.2	426
JZY-400	400	1100	80	1.8	460

How it work?Brush Type Self-cleaning Filter& Working Principle:
Filtering :
First:The sewage enters the machine by the water inlet of the equipment, primary strainer first intercepts the larger impurities in the sewage, to prevent these impurities from entering the body and damaging the parts in the body.
Second:After the coarse filter, the water flows to the fine filter at the other end of the body, and Fine filter is the final interception of impurities and dirt in the water.
Automatic Self-cleaning
Because of the blockage of the dirt on the filter screen, there is a pressure difference between the water in the filter screen and the water outside the filter screen. When the pressure difference reaches the set value of the differential pressure switch, the electric control box sends a sewage signal, and the control valve, the motor drive, and the sewage valve on the body are opened at the same time. The motor rotation drives the stainless steel brush in the body to clean the dirt on the filter screen, and then discharge the sewage through the sewage outlet to complete a self-cleaning process. Company Profile
About Hanna

inHengshui Hanna Trading Co.,LTD

Manufacturing Experience	20+ years
Treatment Solutions	120+
Factory Area	300+ Squares
Quality Rate	99%
Exported Countries	50+
Machine Output	8000+pieces/year

Our Office
Factory Profile
Our Factory
FAQFAQ
Q: Are you a trading company or a manufacturer?
We are a professional manufacturer of all kinds of all kinds of water treatment equipment and accessories.We provide you with the total filtration solutions with our years of industry experience.
Q: Where is your factory?
A:Hengshui, Hebei, China
Q: How about the delivery time?
A: Usually 10-15 days for standard model.
Q: Can we undertake EPC projects?
A: Of course, we are a mature company in all aspects, and our aim is to provide one-stop services without any intermediate links.
Q: Can you make customized products?
A: Yes, of course, if you can provide us with detailed specifications or drawings. Our mission is to make customers ideas on the products and provide the customer satisfied solutions.
Q: Can I use our own designed package?
A: Yes, size, color, logo, and packaging style all can be customized.

---
