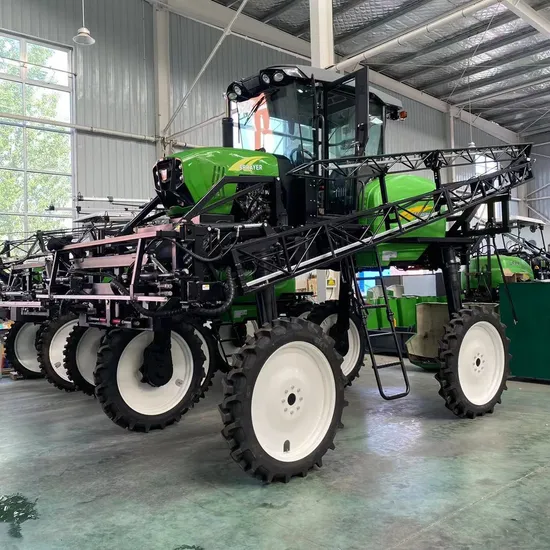

500L 700L 1000L 1300L Long Boom Pesticide Sprayer

Product Description

Advantage of self-propelled power sprayer machine:
1) It can be powered with 50HP to 100HP diesel engines, it is powerful for working.
2) The height of spraying can be adjusted as per request, it can be used to spray all kinds of vegetables, maize, wheat, rice etc.
3) The long spray rod can reach 18m - 20m, the working efficiency is much higher than before.
4) The big water tank can reach 500L 1000L 1500L 2000L 3000L to 5000 Liters, the big water tank greatly increase the working efficiency.
5) The thin tyres and steel wheels not hurt the corn and vegetables, greatly reduce the damage during the course of working.
6) The operation and maintenance is simple, you can learn the operation very easy.

Structure	Model	3WPZ-1000B	3WPZ-1600B
	Type	self-propelled	self-propelled
	working size	4550×11700×3240	4550×11700×3240
	trasnport size	4550×2200×2610	4550×2200×2610
	Weight	1500kgs	1600kgs
	Min ground clearance	1.2m	1.0m
	wheel base	1.70-2.0m adjustable	1.45m or 2.15m
	spraying working pressure	0.3-0.5mpa	0.3-0.5mpa
	spraying working width	12m(Hydraulic cylinder)	12m(Hydraulic cylinder)
Engine	Model	diesel engine	diesel engine
	Type	water-cooling,four-cylinders	water-cooling,four-cylinders
	HP/rpm	100HP/2200	100HP/200
	start method	electrical starting	electrical starting
Driving system	drive type	Four-wheel driving	Four-wheel driving
	steering type	four-wheel steering	four-wheel steering
	break type	Disc brake	Disc brake
	clutch type	Dry multi-plate friction type	Dry multi-plate friction type
medicinal tank box	capacity	1000L	1600L
	stirring method	return flow agitation	return flow agitation
pump	Type	diaphragm pump	diaphragm pump
	working pressure	0-2.5mpa	0-2.5mpa
	rate of flow	60 l/min	60 l/min
spray nozzle	Type	sector	sector
	Qty	23pcs	23pcs
	interval	500mm	500mm
tyre		Solid Tyre 123*8mm	pneumatic tyre 89.5*12mm
working efficiency	ha/h	2.5-4ha/h	2.5-4ha/h
Remarks		Especially for wheat or maize	pneumatic tyre

Features of this sprayers :
Electrophoresis (electroplating) treatment of the whole car accessories, anti-corrosion and more durable! Wide spray width, large capacity, high working efficiency and better performance: forged aluminum anti-corrosion treatment spray rod with good atomization, anti-drift and segmented design. Automatic expansion and contraction, easy operation, unique design and configuration of three-cylinder diverter valve, good controllability, compact structure, elegant appearance and good practicability.
It can be widely used in soybean, wheat, rice, potato and other crops and Chinese herbal medicine, pasture, garden flowers and other plants in large-scale soil treatment before sowing, weed control in seedling stage and prevention and control of diseases and insect pests. This model is suitable for spraying various pesticides and other herbicides.
1. Electric spray boom, soft, simple and convenient control.
2. Four-wheel steering, convenient steering, less pressure on seedlings, more money-saving, unique system, 5 minutes straightening.
3. The fertilizer spreader can be lifted up and down, adding fertilizer is convenient and quick, and the fertilizer is spread evenly.
4. Unique gear shifting mechanism, convenient and easy to operate.
5. Equipped with a unique water filling device, which can easily fill the medicine box in 5-10 minutes, which is more convenient.
6. All parts of the whole car are electrophoretic (galvanized) corrosion-resistant, and the impact resistance is stronger!
Specifications
Main Features of 50hp 700-1000 liters sprayer:
1. with 50hp diesel engine, 700-1000 liters pesticide tank, 1.05m ground clearance, suitable for paddy field and dry field. It is specially aimed at the prevention and control of diseases and insect pests of rice, wheat, soybean,vegetables and other crops.
2. New independent design of the sixth generation of high-end drive axle, front and rear differential lock, which adapt to a variety of harsh environments.
3. All oil pipe of the machine is designed with an impulsive anti-aging automobile imported oil pipe, Korean brand water pipe and an integrated circuit board module.
4.The design of the whole machine has CE ISO9001 certificate,with small turning radius,flexible operation,reasonable Z type structure,Manganese steel frame,convenient maintenance.
5. Working efficiency: 45,000-60,000 m2/hour.

Item	Content	Unit	Model
			3WPZ-700A	3WPZ-700L	3WPZ-700K
Overall Size	Dimensions	mm	5950×2010×2980	4850×2450×3070	4700×2050×2900
	Boom Length	mm	14350	17350	11200
	Boom Lifting Height	mm	500-1800	500-1800	500-1800
	Ground Clearance	m	1.1	1.05	1.02
	Wheel Base	mm	2050	2050	2050
	Wheel Track	m	1.5 / 1.8	1.8	1.5
	Cab type	/	canopy	canopy	canopy
Spraying System	Working Pressure	Mpa	0.2-0.5	0.2-0.5	0.2-0.5
	Tank Capacity	L	700 (LLDPE)	700 (LLDPE)	700 (LLDPE)
	Mixing Mode of Pesticide	/	Jet Flow+Back Flow	Jet Flow+Back Flow	Jet Flow+Back Flow
	Spraying Width	m	15	18	12
	Working efficiency	m2/h	45000-56000	50000-60000	40000-50000
	Fuel consumption	liter/h	6	6	6
	Nozzle Type	/	Cone Spray/32 pcs	Cone Spray/38 pcs	Cone Spray/24 pcs
	Material of Boom	/	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy
	Position of Boom	/	Front	Front	Front
	Structure Type of Liquid Pump	/	Three Cylinder Plunger Pump	Three Cylinder Plunger Pump	Three Cylinder Plunger Pump
	Driving Mode of Liquid Pump	/	Hydraulic	Hydraulic	Hydraulic
Engine System	Rated Power	kw/rpm	36.8/2400	36.8/2400	36.8/2400
	Battery Capacity	/	24V 60AH	24V 60AH	24V 60AH
Driving System (3+2)x2	Driving Type	/	4WD	4WD	4WD
	Steering Type	/	4WS	4WS	4WS
	Tire Type	/	Pneumatic	Pneumatic	Pneumatic
	Tire Outer Diameter	mm	1200	1400	940
	Tire Width	mm	130	130	120
	Drive Axle Style	/	Front and Rear Differential Lock	Front and Rear Differential Lock	Front and Rear Differential Lock
	Turning radius	mm	3000	3500	2900
	Driving speed	km/h	0-24	0-24	0-24
Fertilizer spreader	Spreading width	m	15	18	15
	Fertilizer tank	liter	350	350	350
Optional	1000 liter pesticide tank, Cab, Double disc type fertilizer spreader
Remarks	The Above Parameters are subject to change without notice.

Main Features of 100hp 1300 liters sprayer:
100 hp diesel engine, 1300 liters pesticide tank, good for big dry field. New design high-end drive axle, with thick bigger gear and axle shaft, ensure our sprayer works well in various harsh environment. 3 cylinder pump and double battery design, ensures better performance, better atomization and better start-up. Light self-designed 20m boom, lighter, more stable and more efficient,automatic balance is no.1 in China. The design of the whole machine has CE ISO9001 certificate, with small turning radius, flexible operation,reasonable Z type structure,Manganese steel frame, convenient maintenance. Hydraulic folding ladder can reduce the damage to crops during operation. Working efficiency: 55000-66600 m2/hour.

Item	Content	Unit	Model
			3WPZ-1300C	3WPZ-1300CJ	3WPZ-1300BJ
Overall Size	Dimensions	mm	5450×2350×3300	5450×2350×3300	5500×2700×3700
	Boom Length	m	20	20	20
	Boom Lifting Height	mm	500-1900	500-1900	1450-2900
	Ground Clearance	m	1.2	1.2	1.75
	Wheel base	mm	2300	2300	2620
	Wheel track	m	1.8	1.8	2.54m / (2.3-2.6m adjustable axle optional)
	Cab type	/	canopy	cab	cab
Spraying System	Working Pressure	Mpa	0.2-0.5	0.2-0.5	0.2-0.5
	Tank Capacity	L	1300 (LLDPE)	1300 (LLDPE)	1300 (LLDPE)
	Mixing Mode of Pesticide	/	Jet Flow+Back Flow	Jet Flow+Back Flow	Jet Flow+Back Flow
	Spray Width	m	20	20	20
	Working efficiency	m2/h	55000-66000	55000-66000	66000-99900
	Fuel consumption	liter/h	13	13	13
	Nozzle Type	/	Cone Spray/42 pcs	Cone Spray/42 pcs	Cone Spray/42 pcs
	Material of Boom	/	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy
	Position of Boom	/	Front	Front	Front
	Structure Type of Liquid Pump	/	Double Three Cylinder Plunger Pump	Double Three Cylinder Plunger Pump	Three Cylinder Plunger Pump
	Driving Mode of Liquid Pump	/	Hydraulic	Hydraulic	Hydraulic
Engine System	Rated Power	kw/ (rpm)	74/2400	74/2400	74/2400
	Battery Capacity	/	24V 60AH	24V 60AH	24V 60AH
Driving System (3+2)x2	Driving Type	/	4WD	4WD	4WD
	Steering Type	/	4WS	4WS	2 \4 wheel\oblique walking
	Tire Type	/	Pneumatic
	Tire Outer Diameter	mm	1400	1400	1350
	Tire Width	mm	130	130	200
	Drive axle style	/	Differential Lock,double deceleration at the end	Differential Lock,double deceleration at the end	Differential Lock,double deceleration at the end
	Turning radius	mm	3600	3600	4000
	Driving speed	km/h	0-24	0-24	0-24
Fertilizer spreader	Spreading width	m	25	25	no
	Fertilizer tank	liter	700	700	no
Optional	Double disc type fertilizer spreader				no
Remarks	The Above Parameters are subject to change without notice.

---
