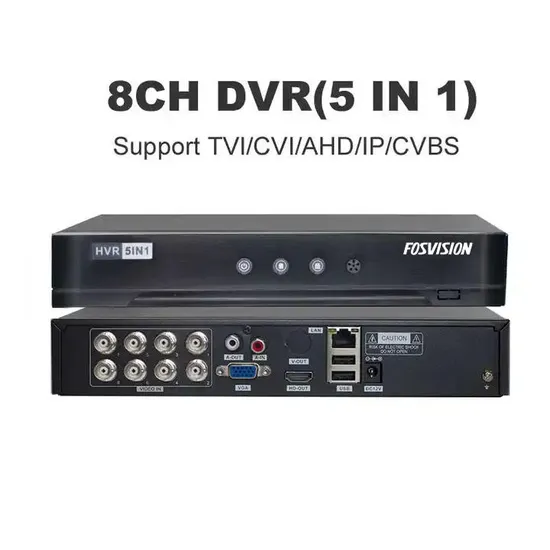

8CH DVR Ahd Tvi Cvi IP CVBS 5MP CCTV DVR

Product Description

fosvision High Quantity AHD TVI CVI IP CVBS 5 in 1 265 5MP CCTV DVR 8 Channel Digital Video Security Recorder DVR 8CH Specification

System	Main processor	FS-6308PLUS
	Operation system	Embedded LINUX operation system
	System resources	Multichannel real time record
		Multichannel real time playback
		multichannel multi-user on network operation
Interface	Operation system	graphic menu operation interface, support mouse to operate
	Image display	1/4/9 screen
	Language	English, traditional Chinese, simplified Chinese, Japanese, Russian, German, Italian, Turkish, polish, Spanish, Korean, Indonesian, Thai, Arabic, Persian, Vietnamese, French, Portuguese, Greek, Czech
Video	Image coding	264/265
	Surveillance quality	VGA(Max 1080P);HDMI(Max 1080P), CVBS optional
	Preview	8*5MP-N@20fps/8*4MP-N@25fps/8*1080P@25fps
	Code capacity	8*5 MP-N@12fps/8*4MP-N@17fps/8*1080P@15fps
	Decode capacity	8*5 MP-N@12fps/8*4MP-N@17fps/8*1080P@15fps
	Various mode input	Coaxial: 8*5MP-N
		Mixed: 4MP-N(coaxial)+1080P (IP) Arbitrary combination for coaxial and IP hybrid mode
	Recognize method	Automatic Identification,All AHD,All TVI,All CVI,Customized
	Motion detection	192(16*12) testing areas can be set for each image;
		can set multi-sensitivity (only for local channel and P6S IP camera)
Audio	Audio compression	G.711U
	Audio output	HDMI, support extended audio output.
	Audio Input	Can extend to 4ch audio In.
	intercom	Support extend audio in and out intercom
	coaxial audio	Support 4ch coaxial audio
Record & Playback	Video mode	manual>alarm>dynamic testing>timing
	Local playback	1CH (5MP-N coaxial input)/4CH (4MP-N coaxial input)
		2CH (Coaxial or Hybrid mode);
		4ch IP mode
	Record retrieval	Time retrieval, event retrieval, Timeline retrieval, channel retrieval,Face playback, Intelligent playback(Motion detection playback)
Storage& Backup	Occupation	1080P 10-15G/day*channel; 720P 10G/day*channel; 960H 6-10G/day*channel;
	Record storage	Local hard disk; network
	Backup mode	Network backup,USB , SATA record
Port	Video input	8ch BNC; support coaxial audio in
	Video output	1ch VGA,1ch HDMI; 1ch TV output(Optional)
	Audio output	HDMI output
	Network port	RJ45 10M/100M Self-adapt to Ethernet interface
	USB port	2 USB 2.0 port
	HDD port	1 SATA Port(Can support 8T HDD)
	Wifi port	NO
	Remote control	Optional
Others	Power	12V/2A(Sufficient amperes)
	Consumption	< 15W(exclusive hard disk)
	Temperature	-5 °C~ +55 °C
	Working humidity	10%~90%

Product Description Product characteristic
1. 5 in 1 HVR product solution, supports HD analog video coding, HD analog + HD network video input, and pure HD network video
input
2. Support VGAHDMI output;3.Support a variety of cloud technologies, realize network penetration for camera
and DVR docking, and support the functions of pushing alarm information to mobile phones
4.Support remote access, DDNS to realize one-key remote monitoring;
5.With UTC function, camera menu parameters can be adjusted via UTC function
6.Support 264/265(HEVC) IP camera
7.Support IP camera address modifying in bulk, and camera device added remotely
8.Support AHD/TVI/CVI/CVBS/IP 5-in-1 and self-recognition
9.Can connect with mainstream IP camera brands in the market(private protocol or
Onvif)
10.Support other third-party products based on ONVIF2.4 (IP mode)
11.upport VGAHDMI simultaneous displayMax resolution is up to HDMI 1080P.
12.Record playback can be shown by time, record type showed by color, to search
and retrieve conveniently and efficiently
13.Record backup can be arranged according to the time and duration, accurate to
seconds
14.Preview screen can be exchanged randomly. Picture position changed without
physical address changing, it's convenient for construction
15.Support multiple languages
16.Provide mating WebCMS SDK service
17.Support multiple playback modes: fast forward, slow playback, fast reverse, etc.
Max 16 times fast forward or fast reverse
18.Support WEBVMS, support android/IOS mobile system
19.Support P2PQR code scanning, and playback via APP
20.Support TVI coaxial audio input, and also AHD coaxial audio input. Packing & Delivery 10PCS per Carton FOSVISION Box packing Port Guangzhou Company Profile FAQ

---
