Continuous Filament Winding Process GRP Pipe FRP Storm Water/Agriculture Irrigation Pipe

Product Description

Product Description

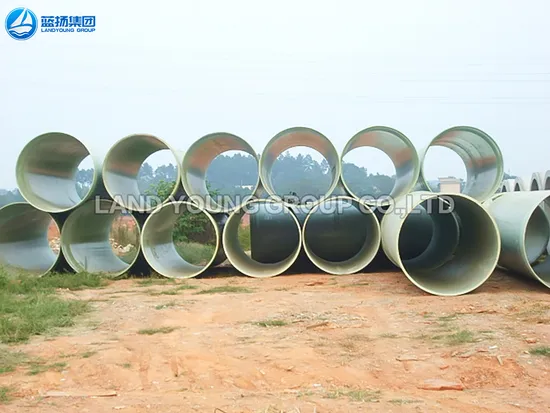

LANDYOUNG GRP pipe is manufactured in accordance with international standard using Helical FILAMENT winding process and Continuous FILAMENT winding process on computer controlled machines.
Helical FILAMENT winding process (Bell and spigot joints)
GRP Pipe is manufactured using the helical (reciprocal) filament winding process by which impregnated glass fiber reinforcement with resin are applied onto a precision steel mandrel in a prescribed pattern. Repeated application of wetted fibers results in a multi-layered structural wall construction of the required thickness.
Continuous FILAMENT winding process (Coupling joints)
GRP Pipe is manufactured on a continuous filament winding machine. This machine consists of a mandrel composed of a helical wound continuous steel band, supported by beams forming a cylindrical shape. As the formed mandrel turns creating a multi-layered structural wall of the required thickness.
Production Process
Applications
Infrastructure &Municipal Industrial Water Diversion Desalination Power Plant Petrochemicals Oil & Gas and Marine Agriculture Irrigation Storm Water Cooling Water Hydropower penstock Advantages
Minimum 50 years service life
LANDYOUNG GRP pipes are manufactured with corrosion resistant non-metallic raw materials. Since corrosion is not a problem, cathodic protection and extra insulation against corrosion are not needed. Thus, operational expenses and difficulties do not exist.
Light weight
Weight of GRP pipe:1/4 of steel pipes; 1/10 of concrete pipes
Can be transported as nested, providing great savings
Quick and easy installation, no need for heavy and expensive equipment
Excellent hydraulic properties
Hazen Williams flow coefficient is 150(c=150). Due to the low friction losses, less pumping energy is required. Compared to steel and concrete pipes, same flow rates can be ensured using smaller diameters.
No lime or deposit formation inside.
Unlimited service area-application in every environment
Can be installed underground, aboveground, and also underwater.
Bell and spigot joints and coupling joints ensure total leak-tightness.
Flexible: successful experience in earthquake regions.
Can be installed inside old lines for relining.
LANDYOUNG GRP pipes are environmentally friend.
Product Range and properties
LANDYOUNG offers a wide product range of GRP pipes and fittings to meet Specific requirements of any project.
Length: 6m,12 m(standard) / 2 m-18m (with request)
Diameter (DN): 15mm-4000 mm
Rigidity (SN): 2500 N/m2-10000 N/m2
Pressure (PN): Gravity-32 bar


Company Profile
LANDYOUNG GROUP CO., LTD. (Abbr.LANDYOUNG GROUP)is a comprehensive building materials industry group in China, a leading new material developer and integrated service provider in China.
LANDYOUNG GROUP is a high-tech enterprise integrating R&D, design, production and service of wire mesh products, FRP products, concrete pipes and related production equipments.
LANDYOUNG GROUP has advanced automated production equipments, strong technical capability, scientific process flow, perfect quality inspection system, high-quality raw materials, and strict quality control.
Wire mesh products include: galvanized iron wire, black iron wire, stainless steel wire mesh, gabion wire mesh, welded wire mesh, hexagonal wire mesh, fence wire mesh, barbed wire, etc.;
FRP products include: GRP pipes, FRP tanks, SMC GRP water tanks, FRP grating, cooling towers and fills, cable trays, septic tanks, various pultrusion&molded profiles, etc.;
Concrete pipe products include: PCCP, RCCP, etc.
Related production equipments include: wire mesh manufacturing machine, GRP pipe winding equipment, FRP tank winding equipment, PCCP production equipment and moulds, etc.
Our company can customize wire mesh products, FRP products and related production equipment with different requirements according to customer requirements. Products are widely used in water conservancy, municipal water supply and drainage, water treatment, agriculture irrigation, power plants, chemical and chemical industries, seawater desalination, roads and railways, environmental protection, construction and other fields. Products are exported to more than 100 countries and regions in Europe, Southeast Asia, South Asia, the Middle East, South America, Africa, etc., and have gained a good reputation in the international market.
Customers include France Vinci,DL E&C,SAMSUNG C&T,Doosan Heavy Industries & Construction,Daewoo E&C,Bangladesh Army, etc.
Company philosophy: Pursue excellent quality and create a world-famous brand!
Business philosophy: unity, hard work, dedication, innovation, pragmatism, and efficiency!
Management philosophy: caring about employee growth, strengthening execution capabilities, pursuing efficiency and harmony, and perfecting incentives and constraints!
Marketing philosophy: Pursue excellence and strive for perfection!
Service philosophy: based on service, survive on quality, and develop on science and technology!
Why choose us?
More than 30 years of rich experiences
More than 20 kinds of products range
Minimum 50 years of service life
Business in more than 60 countries and areas

---
