Product Description
Product Description

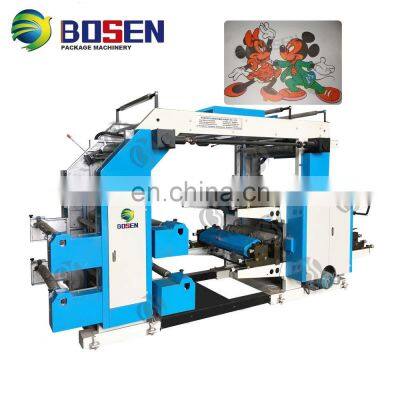

Product DescriptionApplicationPrinting machine could be used for printing materials as following:1.Polyethylene, polyethylene plastic film. 2.Bag(packing bag for food, supermarket handbag, vest bag and clothes bag),3.Roller paper and craft paper4.Pp woven bag , pvc film, bopp film, 5.Laminated bag ,6.Non woven bag,7.Rice bag 8.Paper cup etc Model BSYT-2600 BSYT-2800 BSYT-21000 Max. Material Width 600mm 800mm 1000mm Max. Printing Width 560mm 760mm 960mm Printing Length 200-914mm,or customied Print Colors 2 colors (also we have 1, 3, 4, 5, 6, 8 colors for your choices) Mechanical Speed 80m/min 80m/min 80m/min Printing Speed 5-60m/min 5-60m/min 5-60m/min Diameter of Material Φ450 mm-Φ1000mm Total Power 8kw 8kw 10kw Plate Thickness (including two-sided glue paper) 2.38mm, or customied Machine Weight 2000kg 2400kg 2600kg Overall Dimension 2.2×1.5×2.2m 2.2×1.7×2.2m 2.2×1.9×2.2m Working Voltage 380V 3-phase 50Hz, or customied such as 220V, 410V, 440VMain Features1. Easy operation, flexible starting, accurate Ppcolor register.2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.3. Printing cylinder lift and lower, it will stir the printing ink automatically after lifting.4. The printing ink is spread by the anilox cylinder with even ink color.5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.6.360°continuous and adjustable longitudinal register device.7. The motor has inverter controller with different speed.8. The electric board with buttons let machine operation be easy and effective.9. Automatic laoding material, computer control is available.Extra Optional Devices: 1) EPC web guider + Auto tension controller2) Digital Corona Treater3) Air Shaft4) Computer control system for colour register 5) High speed 6) High exported brands parts7)Ceramic anilox roller8) Automatic material laoderBAG PRINTING MACHINEPrinting bag one by one1, 2, 3, 4 colors for you choice.High speed Automatic controller systempp woven bag non woven bag paper bag 2 COLORS PRINTING MACHINE Economic type roller to rollerWinder rolling diameter Dia 600mm to 1000mmRewiner Dia 450-600mmManual or auto tension controllerWeb guide photo for auto web deviationInverter controlPP woven printing Film printing Non woven roller printing4 COLORS PRINTING MACHINEWinder could be manual or automatic tension contoller Rewinder be tension controller or torque motorWeb guide automatic correction.Automatic tension controllerComputer regisiter optionBlades optionCorona treatment optionAir shafts or steel roller6 COLOR PRINTING MACHINEAutomatic material laoder winder unit optionRewinder could be tension controller or torque motorWeb guide automatic correction.Automatic tension controllerComputer regisiter optionBlades optionsSinge rewinder or double rewinder optionsSpeed could be middle speed.high speed optionDetailed ImagesSample Photo 2 colors print machine for printing non woven roller, plastic film, craft paper see following:4 colors Automatic type for printing non woven, plastic film, rice bag, woven bag, paper material see following:Control system Print unit Photo web guide 4 colors Our ServicePre-Sales Service* Inquiry and consulting support. * Sample testing support. * View our Factory.After-Sales Service* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.CertificationsPacking & DeliveryFAQ
>>
