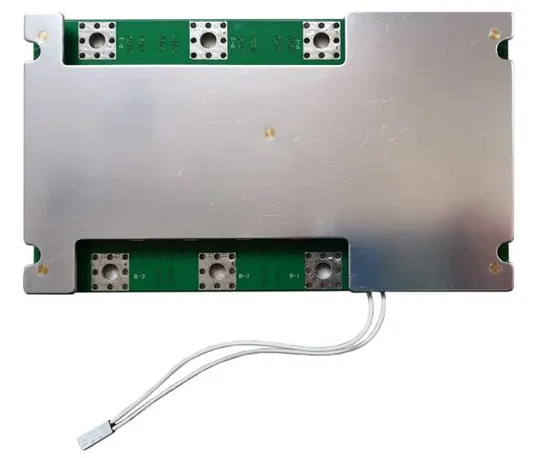

Smartec BMS LiFePO4 4s 12V 100A BMS with Bt APP for Solar Storage Use on Phone

Product Description

LiFePO4 Battery/Li-ion Battery Circuit Board BMS/PCM/PCB BoardProduct Description 1. True lithium battery pack BMS factory
2. Supply OEM/ODM and custom service
3. High quality with smart balance function
4. Wholesale price
5. ISO9001/ISO14001/CE/ROHS certificates
6. Fast deliverySmarTEC - Your professional and reliable battery partner, specializing in Lithium-ion batteries, LiFePO4 batteries, and Smart Software BMS.

Shenzhen Smartec Technology Co., LTD
PCM Specifications (4S) LiFePO4 Battery Packs
Model: PCM-4S100A-G20
Available for 1-4 series battery packs, working current adjustable!
No.	Test item		Criterion
1	Voltage	Charging voltage	DC: 24V 3.6/Cell
		Balance voltage for single-cell	3.6±0.025V
2	Current	Balance current for single-cell	36±5mA
		Current consumption	50μA
		Max continuous charging current	10A
		Max continuous discharging current	10A
3	Overcharge Protection	Overcharge detection voltage for single-cell	3.75±0.025V
		Overcharge detection delay time	0.5S-1.5S
		Overcharge release voltage for single-cell	3.55±0.050V
4	Over-discharge protection	Over-discharge detection voltage for single cell	2.20±0.080V
		Over-discharge detection delay time	10mS-150mS
		Over-discharge release voltage for single-cell	2.70±0.100V
5	Over current protection	Over-current detection voltage	100±25mV
		Over-current detection current	300±20A
		Detection delay time	0.5-1.5S
		Release condition	Cut load
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Cut load
7	Resistance	Protection circuitry(MOSFET)	≤50mΩ
8	Temperature	Operating Temperature Range	-20~+70ºC
		Storage Temperature Range	-40~+125ºC
		Temperature Sensor	75ºC

Our Advantages for BMS
1. Complete Function: Detect and protect the battery from: over-charge, over-discharge,over-current, short-circuit, temperature detecting protection, and auotmatically voltage balance function.
2. Build with high-end electronic components (High-End IC and MOSFET ).
3. A simple structure design will let it have a more stable quality working performance.
4. Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ).
5. A full set of protection measures let it work well.
6. Without any influence from external unexpected accidents.
About your products, just tell us the relative voltage/ cells/ current A or equipment, etc,
we will help to recommend the most suitable products for you. or we design for you!
Similar products (1~35 series)
Product Features:1. Have the Basic Functions of a normal battery protection circuit:
2.Have more Intelligent functions to monitor the batteries : How to produce? Company Profilewho we are?
Our Services1. After-sales services
2. OEM, ODM, Customized Design
3. We can provide 24-hour service for you. We pride ourselves on our ability to custom tailor programs around our customers needs. We take time to listen to your unique business needs and then set out to surpass them.
Can provide variouse capacity and size is per your requirements.
Packaging & ShippingInner packing: Vaccum packing/Plastic bag.
Outer packing: Standard carton packing or packing per customer's requirements.
Delivery type: by air such as TNT, UPS, FEDEX, or by sea, just depends on your convenience.
Payment: L/C, T/T, Western Union, PAYPAL etc.
FAQQ: Is an OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. We have a professional R&D Team to provide you with technical support.
Q: What information do you need before making a customized battery pack?
1. Size of the battery pack
2. Voltage of the battery pack
3. Capacity of the battery pack
4. Max continuous discharge / working current
5. Cable and connector types
6. Whether communication or Bluetooth APP is needed.
Q: Can you print my logo on the battery cover?
A: Yes, a custom logo is available.
Q: Is the sample order acceptable?
A: Yes, sample orders for quality tests is acceptable.
Q: How should I place an order?
A: We will issue a formal invoice to you and you just make the payment. Then your order will be processed at once after you get it.
Q: How should I pay? Which terms of payment do you accept?
A: T/T, Paypal, Western Union, D/P, L/C
Q: How to ship out the batteries?
A: We have good partners to arrange the shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3 for single cells, and other special files needed for shipments to some regions can also be applied for you.

---
