Farming Machinery Mini Backhoe Excavator 3 Ton Crawler Excavators with Different Attachments

US$20,200.00-21,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
WE30
Type
Crawler Excavator
Usage
GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.025
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Overral Weight
3000
Overall Size
4627X1600X2560mm
Engine
Yanmar Tier4/Euro5
Swing Speed
11.5
Travelling Speed
2.0/3.2km/H
Bucket Digging Force
24.5kn
Arm Digging Force
14.8kn
Working Pressure
16 MPa
Max. Digging Depth
3046mm
Max Digging Height
4591mm
Max. Digging Radius on Ground
5121mm
Mini Ground Clearance
320mm
Track Width
1600mm
Track Shoe Width
300mm
Grade Ability
58%
Transport Package
6 Sets/40hq
Specification
4627x1600x2560mm
Trademark
WOLF
Origin
China
HS Code
84295212
Production Capacity
2000 Sets/Year

Packaging & Delivery

Package Size
403.00cm * 145.00cm * 216.00cm
Package Gross Weight
3000.000kg

Product Description

Product Description

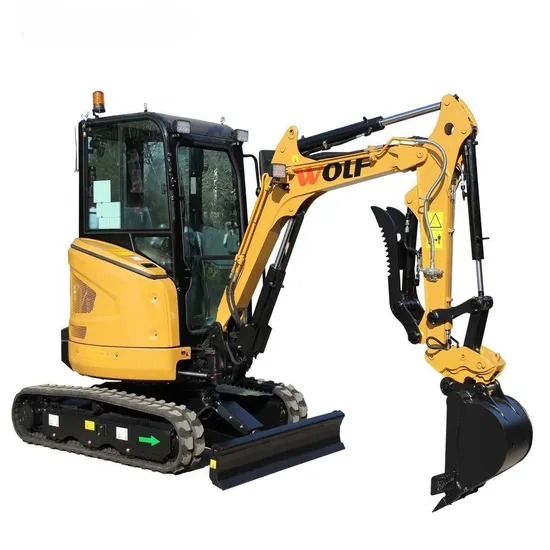

WE30 is one popular 3 ton mini excavator equipped with Japanese Yanmar engine, meeting Euro5 and EPATier4 emission standard.It has the advantages of fast response, low energy consumption, higher control accuary and more stable system performance.

Standard Configurations:
Kubota D722 10.4KW/2500rpm
3 cylinder EPA/E5 engine,
Bucket capacity:0.025m3
Machine weight: 1400kg
Rubber track.
Standard bucket
Swing boom included

Detailed Photos


Product Parameters
Specifications:
Engine Model Yanmar 3TNV80F 15.2KW/2500rpm
Max. Turque 45N.m/2500RPM
Type In-line, water cooled, 4 stroke, Mechanical pump, normally aspirated
Displacement 0.719
No. of cylinder 3

Swing Speed r/min 11.5
Traveling Speed(high/low) km/H 2.1/3.2km/h
Grade ability ° 58%
Max. Bucket Digging Force kN 24.5
Arm Digging Force kN 14.8
Ground Pressure Kpa 22
Hydraulic system pressure Mpa 20
Machine Weight KG 3000
Fuel Tank capacity L 35
Hydraulic Tank capacity L 28
Engine oil capacity L 7

Overall Length mm 4627
Overall Width mm 1600
Overall Height mm 2560
Mini Ground clearance mm 320
Track width mm 1600
Axle base(Track length on ground) mm 2040
Track Gauge Mm 1250
Swing radius at tail Mm 775

Bucket Capacity m3 0.08
Max. Digging Reach mm 5220
Max. Digging Depth mm 3046
Max. Digging Height mm 4591
Max. Dumping Height mm 3206
Max. vertical digging depth mm 2723

Attachments
WE30 mini excavator can be with different attachments, help you solve many works.
Shipment
Shipping:
2 sets/20GP; 6 sets/40HQ

Wolf machines in abroad
Now you can find WOLF mini excavators work in different countries.
After-sale service

Workshop
After assembling, the inspectors will check and test each excavator, then ready for shipment.
Customers from different countries prefer wolf excavator and wolf loader.
You can contact with me anytime to learn more.
Or you can tell me your detail requirement, i would like to recommend suitable machine for you.
Welcome to visit WOLF!
