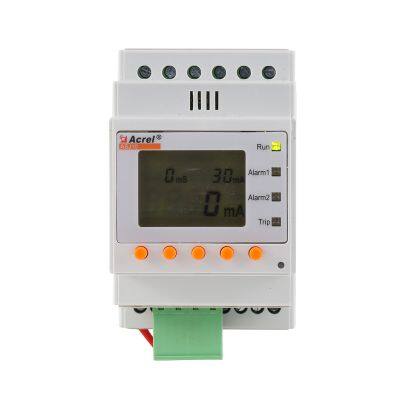

ASJ Series Residual Current RelayACREL ASJ Series of action relay of after-current, low-voltage circuit break or low-voltage contactor can be made up for combined after-current production device, which is mainly applied for the TT and TN system distributing circuit with the alternating current 50Hz, the rated voltage 400V or below. ASJ Series of action relay of after-current is applied in the earth fault protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.
* The measurement of A-type after-current; * The streamer display of current percentage; * The setting of rated residual action current; * The setting of non-driving time of limitation; * Two-pair relay output; * Possessing the function of on-the-spot and long-distance testing and resetting. * LCD display * RS485 Modbus-RTU
Frequency50Hz±5HzAuxiliary power supplyAC110V, AC220V, DC85 ~270V (permissible error ±10%)Consumption≤5W
Installation
DIN rail 35mm
Dimension(L*W*H)
85×54×64mm
Function & Parameter
Function
Model
| ASJ10L-LD1A
|
Dimension
| 85x54x64mm
|
Measurement
| A-type residual current
|
Display
| LCD
|
Function
| Prossessing the function of on-the-spot and long-distance testing and resetting
|
Rated residual current
| 0.03, 0.05, 0.1, 0.3, 0.5, 1, 3, 5, 10, 30A
|
Frequency
| 50Hz±5Hz
|
Contact
| 1normal close or normal open,1 change
|
Reset type
| locally, remote and automatically
|
Parameters
Dimension and Packaging
The outline of ASJ10 series and the dimensions of mounting holes are shown below. (Unit: mm)
