2/2 way miniature plastic pneumatic air solenoid valve 2P025-08

Product Details

Product Description

Product Description

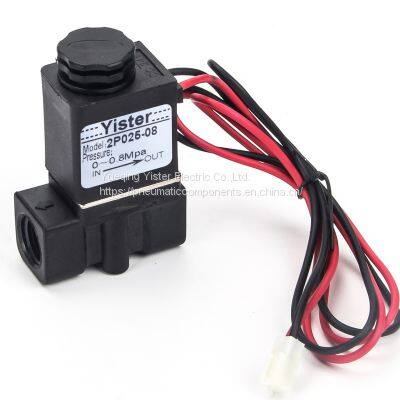

2/2 way miniature plastic pneumatic air solenoid valve 2P025-08
Order code for 2P025-08
2 Way Solenoid valves Symbol for 2P025-08
Technical parameter

Model	2P025-06	2P025-08
Fluid	Air. Water. Oil
Acting	Direct acting
Original state	Normally closed
Initial state	2.5
CV Value	0.23
Port size	G1/8''	G1/4''
Viscosity limit	Under 20CST
Pressure range	0-0.7MPa(0~100psi)
Proof pressure	1.5MPa(215psi)
Material of body	Nylon 66
Seal material	VITON
Response speed	<0.05s

Dimension
Feature
. Direct acting type normally closed 2/2 way pneumatic air solenoid valve.
. 2P025-06/08 Can be used to control On/Off of air, inert gas, liquid, and water.
. This miniature solenoid valve has 1/8 inch,1/4 inch inlet and outlet port size
. The valve stays closed when the coil is de-energized, and it opens when energized.
. Compact size and light weight, easy to assemble and disassemble.

---
