HAWKER EV48-160 LiFePO4 1C Charger
Introduction
Hawker HuaDa EV series of power battery, is the international advanced level of lithium iron phosphate (LiFePO4) power battery system. With high energy density, long cycle life, excellent charge and discharge performance, good temperature performance, is a new generation of high security and high reliability of the green power supply.
This series of batteries is the use of the latest development of the battery management system (BMS), specifically for mobile mechanical equipment, online charging and wireless charging and design and production of power batteries, with advanced battery self-management, communication, alarm and short-term fast charge Complete function.
Product Features
● Excellent charge and discharge overvoltage and undervoltage protection
● provide analog output AO, SOC analog output 0 ~ 5V, user-friendly power monitoring
Note: SOC can only be used as a reference, can not be used as a decision.
● Provides a highly efficient passive equalization system
● Charge / discharge are all with short circuit insurance
● Panel LED power, system status display
● Rich interface, through the digital IO and 485 interface to achieve information exchange
● professional industrial design and material selection, sustainable work in the harsh industrial environment
● support high-power charge and discharge, to meet the needs of a variety of different industrial conditions
● wide temperature working environment conditions, -20 degrees -60 degrees
● small size
Dimensions specifications
Types
| Battery size
Long*wide*high（mm）
| Charge continuous current
| Discharge continuous current
|
EV24-40
| 315*237*165mm
| 80A
| 20A
|
EV24-60
| 315*240*215mm
320*237*188mm
460*220*150mm
| 120A
| 30A
|
EV24-80
| 355*330*215mm
| 160A
| 40A
|
EV24-100
| 355*330*215mm
| 200A
| 50A
|
EV24-120
| 400*275*245mm
| 180A
| 60A
|
EV24-200
| 550*210*425mm
| 200A
| 100A
|
EV48-30
| 345*238*200mm
| 60A
| 30A
|
EV48-60
| 590*240*240mm
| 120A
| 30A
|
EV48-80
| 585*345*230mm
| 160A
| 40A
|
EV48-100
| 585*345*230mm
| 200A
| 50A
|
EV48-160
| 605*435*255mm
| 160A
| 80A
|
EV48-200
| 615*650*250mm
| 160A
| 100A
|
EV48-250
| 605*290*480mm
| 200A
| 125A
|
Performance specifications
project
| Features
|
Overvoltage protection
| 3.7V (single string)
|
Undervoltage protection
| 2.8V (single string)
|
Charging parameters
| Maximum 2C lasts for 10 minutes, 1C continues
|
Discharge parameters
| Up to 1C continuous
|
Charge and discharge port form
| Charge and discharge
|
fuse
| Have
|
RS-485 communication
| Have
|
Analog output AO
| Have
|
Configurable DO output
| Have
|
Power LED display
| Have
|
Master switch
| Have
|
Operating temperature
| -20℃~60℃
|
Storage temperature
| -20℃~70℃
|
Working humidity
| Relative humidity of 10% to 80%, no condensation
|
cooling system
| Passive natural cooling
|
Charger requirements
| Lithium iron phosphate battery charger
|
Battery shell color
| Toyota White (customizable)
|

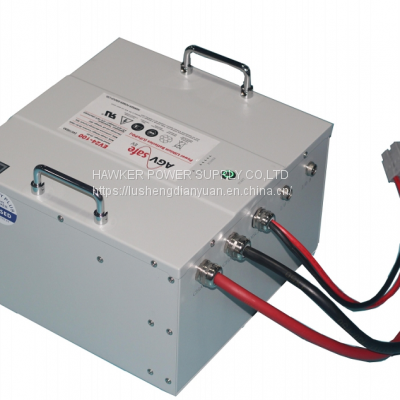

Product Image
Product Features
This product is designed for automatic guided / pure electric passenger / electric forklift applications. Products from the basic power module N + 1 parallel combination, the maximum to meet the 24V120A power applications. The machine adopts the controller specially developed for AGV car application demand, realize the function of logic control, system protection, parameter setting, charger management, upper communication and so on, and adopts 7-inch full color touch screen to realize human-computer interaction.
The system has the following features:
●DC output 24V60A and 48V50A modular power supply, support current expansion upgrade.
●hot-swap mode, N + 1 redundant structure protection
●ultra-high power density, compact size
●Standard efficiency up to 92%
●variety use mode (independent charge, interactive charge, maintenance charge)
●With industrial communication bus (CAN / MODBUS / PROFIBUS DP)
●High protection safety rating (IP54), designed for industrial applications
This product is designed for automatic guided vehicles / electric forklifts and other applications. Products from the basic power module N + 1 parallel combination, the maximum to meet the 24V240A / 48V200A power applications. The machine adopts the controller specially designed for the AGV trolley application for the automatic production line. It realizes the functions of logic control, system protection, parameter setting, charger management, upper communication and so on, and adopts 7-inch full color touch screen to realize human-computer interaction.
The system has the following features:
●Ultra-high power, 240A @ 24V / 200A @ 48V
●hot-swap mode, N + 1 redundant structure protection
●ultra-high power density, compact size
●support current expansion upgrade
●Standard efficiency up to 92%
●Variety use mode (fast charge, interactive charge, balanced charge, maintenance charge)
●provide IO port for system interlock protection
●With industrial communication bus (CAN / MODBUS / PROFIBUS DP)
●High protection safety rating (IP54), designed for industrial applications
Product specifications
Voltage level
| 24Vsystem
| 48Vsystem
|
model
| LPC120-24
| LPC180-24
| LPC240-24
| LPC100-48
| LPC150-48
| LPC200-48
|
power
| 3600W
| 5400W
| 7200W
| 6000W
| 9000W
| 12000W
|
recharging current
| 5~120A
| 5~180A
| 5~240A
| 5~100A
| 5~150A
| 5~200A
|
Input voltage
| 220VAC±10%，50/60Hz（Optional 380VAC±10%）
|
Power factor
| ≥0.99@220Vac/50A, ≥0.98@220Vac/25A（Single module）
|
Dynamic adjustment rate
| ±5.0% for 10-90% or 90-10% Load change, Adjust the time | Load Regulation
| ±0.5% from 10% to 100% load
|
Charging voltage
| 16～30VDC
| 43～58VDC
|
Steady flow accuracy
| ≦±0.5%
|
Noise voltage
| <200 mV Peak peak, 30 MHz bandwidth, | Regulation accuracy
| ≦±0.5%
|
Time accuracy
| ≦±10S/24h
|
Charging parameter settings
| Voltage
| 0.01V
|
Current
| 0.1A
|
time
| 1S
|
Dimensions
| According to power
|
weight
| According to power
|
Operating temperature
| 0℃~45℃
|
Storage temperatur
| -10℃~40℃
|
Working humidity
| Relative humidity 10%~80%，No condensation
|
protection
| Overcurrent, overvoltage, overtemperature, reverse, missing, short circuit, cut off
|
communication
| CAN/MODBUS/ PROFIBUS DP Optional
|
Interaction DIO
| Dry contact DIO, Battery contact informs, standby, charging, charging is complete, faulty
|
safety standard
| IEC 60950-1
|
Electromagnetic compatibility standards
| EN 61000-6
|
environment
| ETSI EN 300 019-2 RoHS compliant
|
Insulation and pressure
| 3.0 KVAC –Input pair output 1.5 KVAC –Input to ground 0.5 KVDC –Output to ground
|
Average trouble-free working hours
| 5 Million hours
|
noise
| 50DB
|
LPC120-24 charging station dimensions:
