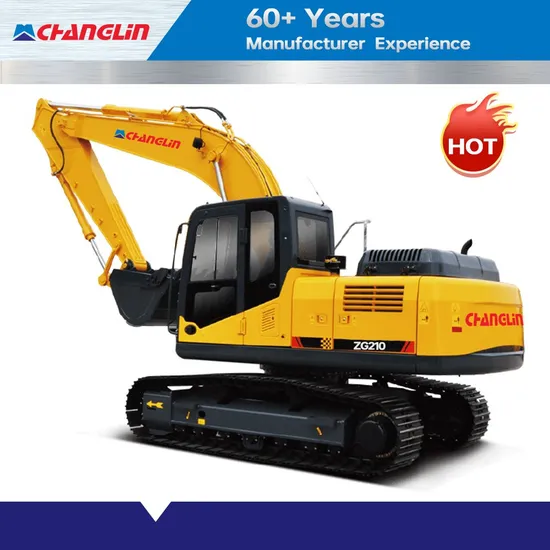

Sinomach Middle Size 21 Ton Crawler Excavator Zg210 New Hydraulic Engine for Mining Machinery

Product Description

Product Description
CHANGLIN ZG210 Equipped Top engine, strong power, high efficiency, energy saving, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different working conditions; stepper motor accurately controls the throttle , Significantly reduce fuel consumption; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts. Based on the above advanced technology, CHANGLIN ZG210 has been widely using in construction sites such as building construction, mining engineering, water conservancy project and etc.
•Equipped Top engine, high load resistance, high horsepower output, high reliability, low fuel consumption, significantly reduce the use and maintenance costs
•Advanced negative flow hydraulic system is adopted, which has better system stability and reliability, faster compound action speed and higher operating efficiency.
•High-strength reinforced box-type side beams and X-shaped middle frames, high-reliability towline wheels and track rollers, can withstand the impact caused by excessive loads.
•Intelligent electronic monitoring system, real-time monitoring, self-diagnosing fault alarm, maintenance information prompt. Product Parameters

	ITEM		Specifications
Dimensions	Operating weight	Kg	21000
	Rated bucket capacity	m3	1.0
	Overall length	mm	9520
	Overall width(600mm track shoe)	mm	2800
	Overall height	mm	3030
	Trunable width	mm	2700
	Cabin height	mm	2958
	Groundclearance of counterweight	mm	1025
	Engine cover height	mm	2338
	Min. ground clearance	mm	470
	Tail length	mm	2800
	Turning radius of turnable	mm	2800
	Wheel base of track shoe	mm	3370
	Chassis length	mm	4160
	Chassis width	mm	2800
	Track shoe gauge	mm	2200
	Standard track shoe width	mm	600
Performance	Max. traction	KN	204
	Travelling speed (H/L)	Km/hr	5.8/3.3
	Swing speed	rpm	13.9
	Gradeability	Degree(%)	35(70%)
	Ground pressure	Kgf/cm2	0.47
Working Range	Maximum digging radius	mm	9953
	Ground maximum digging radius	mm	9794
	Maximum digging depth	mm	6690
	Ground maximum digging depth	mm	6505
	Maximum vertical digging depth	mm	6104
	Maximum digging height	mm	9642
	Maximum dumping height	mm	6813
	Min. front turning radius	mm	3560
	Bucket digging force	kN	137
	Stick digging force	kN	102
Engine	Model		6B5.9-C150
	Type		6-cylinder in-line, four-stroke turbocharger
	Emission		Tier II
	Displacement	L	5.883
	Rated power		112KW(150PS)@1950rpm
	Max. torque	N.m	614N.m@1500rpm

Company Profile
Our Advantages
After Sales Service

FAQ
Q1:Are you original manufacturer?
A: Yes, we CHANGLIN are an official leading manufacturer in construction machinery. We set up juint venturers in 1990s.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms 2022 can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, EAC, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,

---
