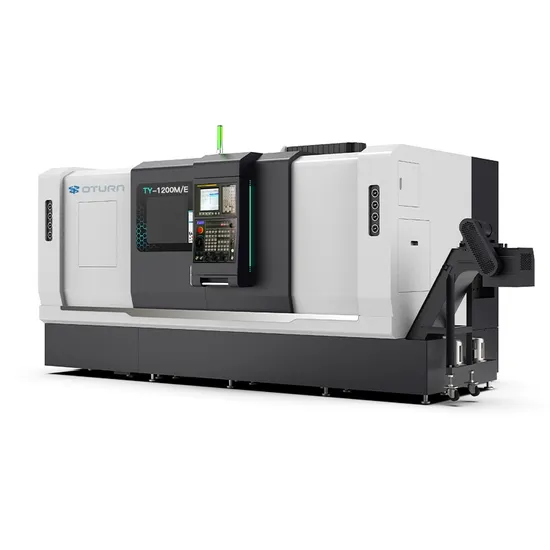

Thermal Stability CNC Lathe Ety1200m with Precision Ball Screw

Product Description

Product Description
The High-Quality Auto CNC Lathe Machine boasts an advanced 30-degree inclined structure, ensuring unparalleled precision, supreme rigidity, and exceptional cutting efficiency.
stability. Constructed with high-strength HT300 cast iron in a one-piece solid structure, this lathe leverages finite element analysis to enhance overall machine
Its outstanding rigidity and stability enable long-term accuracy, superior processing stability, extended tool life, and effective stress elimination.
In addition to precision and stability enhancements, the high-strength roller linear rail design and pre-tensioned screw transmission system further enhance
Demonstrating rigid performance, the machine's sleek and sophisticated design aligns with contemporary trends.
Main features of this machine tool:
1. The 30° inclined layout and integrated bed base structure significantly enhance the machine's bending and torsional rigidity during operation, ensuring high precision and stability.
2. Equipped with a direct drive synchronous spindle device featuring a magnetic ring incremental encoder with 20 arc seconds positioning accuracy and 40 arc seconds C-axis indexing accuracy. This setup effectively eliminates spindle vibration, achieving nose deflection accuracy within 0.002MM for superior workpiece surface finish. The rear-mounted rotor allows for quick installation and maintenance, while the spindle motor's cooling system maintains a constant operating temperature. The spindle system undergoes rigorous dynamic balance testing, ensuring excellent accuracy retention, high rigidity, and efficiency. This enables thorough finishing, rough machining, and heavy cutting, ideal for mass-producing complex and smooth products.
3. High-rigidity servo turret design with a high-precision clutch ensures positioning accuracy and repeatability. The servo motor drives bi-directional or arbitrary tool selection on the cutterhead, utilizing a hydraulic system for quick and precise tool changes, with proximity switch feedback for clutch action.
4. Featuring roller linear guides and precision-ground ball screws, which are heat-treated for optimal accuracy and durability. Each axis employs a direct transfer structure and double-anchor pre-relay method to ensure thermal stability and minimal displacement. The robust, large-sized, heavy-duty linear slide rails maintain accuracy during impacts, ensuring smooth, low-noise displacement and prolonged service life.
5. The programmable hydraulic tailstock and high-rigidity integral tailstock minimize vibration and provide excellent stability. Control options include programmable or manual buttons for convenience, speed, and reliability.
6. Features a comprehensive hydraulic and lubrication system with high-quality hydraulic pumps and valves, significantly reducing failure rates. The centralized quantitative automatic lubrication system is simple and reliable.
7. Incorporates a Taiwan rotary chuck cylinder and optional automatic chip removal device, greatly reducing operator labor intensity and ensuring safe, efficient production. Functional components are programmable and customizable to meet specific user requirements for special fixtures.
Product Parameters

Item	Unit	ETY1200M
Max. swing diameter over bed	mm	Φ700
Max. processing diameter	mm	Φ520
Max. processing diameter over tool holder	mm	Φ350
Max. processing length	mm	1100
Spindle type	type	A2-8
Max. spindle speed	rpm	2200
Hydraulic Cylinder/Chuck	lnch	10″
Spindle bore diameter	mm	Φ86
Max. bar diameter	mm	Φ76
Spindle motor power	Kw	17/25
Spindle motor torque	Nm	180-400
X/Z travel	mm	310/1200
X/Z axis rail specification	spes	45 roller
X/Z shaft wire specifications	mm	4012
X/Z motor power	kw	3.0
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
X/Z axis rapid speed	m/min	24/24
Power turret type	pcs	BMT65-12T
Power turret motor	KW/Nm	7.5/47.8
Max. power tool holder speed	rpm	6000
External diameter tool holder specification	mm	25X25
Internal diameter tool holder specification	mm	Φ50
Adjacent tool change time	sec	0.2
Hydraulic tailstock	/	Hydraulic tailstock
Max. Tailstock travel	mm	950
Sleeve taper	type	Morse5#
Sleeve diameter	mm	Ф100
Sleeve travel	mm	100
Machine size	mm	3900x2110x2100
Machine weight	kg	7600
Cutting fluid tank volume	L	300
Coolant water pump power	W	750
Hydraulic unit box volume	L	45
Hydraulic pump motor power	kw	1.5
Lubricat tank volume	L	2
Automatic lubrication pump motor power	W	50

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines?
A: Please tell me your specifications, and we will help you select the best model, or you can choose the exact model yourself. Alternatively, you can send us the product drawings, and we will recommend the most suitable machines for your needs.
Q2: What are the main products of your company?
A: We specialize in all kinds of machines, such as CNC Lathe Machine , CNC Milling Machine, CNC Turning Machine, Vertical Machining Center, Horizontal Machining Center, Lathe Machines, Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
A: We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcome to visit us.
Q4. How do you transport it?
A: Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What are the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment
Q6:What's the OMQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1. We strongly suggest you tell us the size, and material of your workpiece for our evaluation, if possible, better to send us a workpiece drawing so that we can recommend you the most suitable model.
2. If need a CIF Price, please kindly tell us the port of destination.

---
