Advanced Qt6-15 Automatic Brick Making Machine for Efficient Production

Product Description

Product Parameters

Overall size	7700x1900x2600mm	Host machine power	30.45KW
Molding period	15-20S	Vibration Frequency	4600-5200time/ min
Pallet Size	900×700×25mm	Pallet quantity	1500pcs
Vibration Force	16-20MPA	Vibration Type	Table vibration
Voltage	As per local condition

Theoretical workshop area : 150m2 , Need about 3-4workers .the office , curing area and stacking area to arrange according your fact status. Product Description

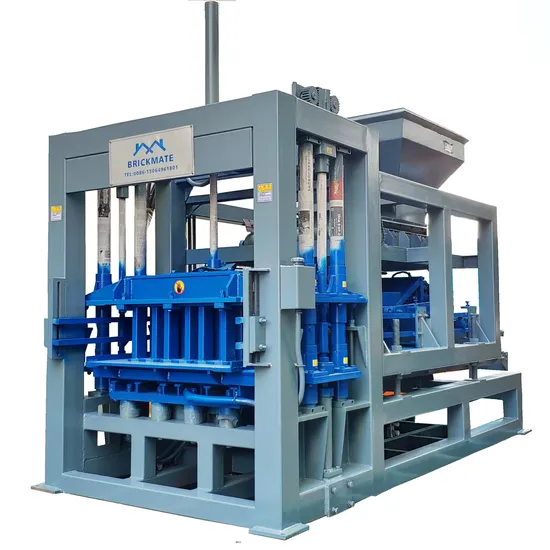

The 1 - QT6 - 15 Fully Automatic Stacking Brick Making Machine Plant is equipped with PLC intelligent control, which creates a highly realistic human - machine interface. The control s ystem features comprehensive logic control, well - defined production programs, a sophisticated malfunction diagnosis system, and a convenient remote control function. This machine is capable of producing paver blocks with or without surface coloring. In case colored blocks are required, a face - color material feeding device should be utilized. Thanks to the mold - releasing oil cylinder, the mold box is firmly locked onto the vibration table with high rigidity, achieving synchronous vibration. As a result, the concrete can be fluidized and the air can be expelled within just two or three seconds, guaranteeing high - density products. It is particularly well - suited for manufacturing standard blocks that can be stacked immediately after production, directly reducing the investment in pallets. The unique forced charging system enables the utilization of a wide range of industrial wastes and materials, including coal ash, cement, sand, stone, slag, etc. This multi - functional machine can produce various types of products, such as standard bricks, concrete blocks, porous blocks, and paving bricks. All it takes is a simple mold change to switch between different product specifications. Detailed Photos

To better adapt to overseas markets and ensure the machine operates more efficiently, we have incorporated numerous components from renowned international brands. The details are as follows:
Switches and Motors: For switches, we will adopt products from well - established Japanese brand Omran and French brand Schineider. As for motors, we will use those from Simens Hydraulic System: The hydraulic spare parts are custom - ordered from Taiwan of China, tailored to the specific characteristics of our block - making machine. Material Feeder: We employ a rotary mixer - type material - feeding cart. This design enables the finished products to achieve higher density and strength. Mould: The latest heat - treatment equipment is utilized to ensure a longer lifespan for the moulds. Spare Parts: Alongside the machine shipment, we will provide appropriate wearing parts. This arrangement ensures a more prompt after - sales service. APPLICATION OF BRICKS

Raw Materials	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products	Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

---
