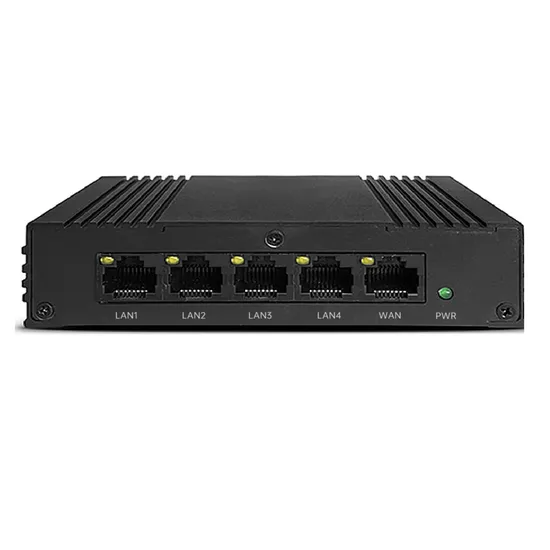

ER205X is an SMB multi-service device with a gigabit network interface that integrates routing, switching, and AC management functions. The whole machine has a standby capacity of 100 people and can manage 64 APs in a unified manner. It provides 5 10/100/1000M adaptive RJ45 ethernet ports, without the need to purchase additional AC or switch equipment. It can be directly paired with AP products to form a wireless network, which is efficient, convenient, and cost-effective.
5*10/100/1000Mbps Base-T Ports NAT accelerate VPN support Manage 64*APs User Capacity 70+ Industrial robust design
Software
|
Status
| Basic device information, operating status, DHCP client list
|
Networking
| WAN:Static IP/Dynamic IP/PPPOE
|
LAN:Port based IP address segment configuration, DHCP server
|
IP group/static routing/port mapping/network diagnostics/static IP allocation
|
AC function
| Radio status/WLAN configuration/wireless user/anti terminal stickiness/wireless optimization/debugging function
|
Authentication
| Local authentication based on IP address segments, local MAC address whitelist/IP address whitelist
|
Local authentication: automatic authentication, Portal authentication
|
MAC address whitelist, MAC address blacklist
|
Web authentication user management
|
Firewall
| User behavior control based on time group and IP group
|
Free of authentication IP/MAC list, Deny of IP/MAC List surf the internet
|
Online upgrade of control logs and behavior management rule library
|
Bandwidth control
| WAN bandwidth configuration
|
IP address and IP address range based bandwidth control
|
VPN
| PPTP/L2TP/IPSec VPN
|
System
| Time zone configuration, login password modification, backup/restore system settings,OTA upgrade
|
