Basic Info.
Structure
Radial Drilling Machine
Controlling Mode
Artificial
Automatic Grade
Automatic
Certification
GS, CE, ISO 9001
Rocker Arm Lifting Distance
580mm
Headstock Horizontal Travel Distance
1250mm
Distance From Spindle End Face to Table
350-1600mm
Transport Package
Plastic Wrap and Wooden Box
Production Capacity
1200/Year
Product Description
Product Description

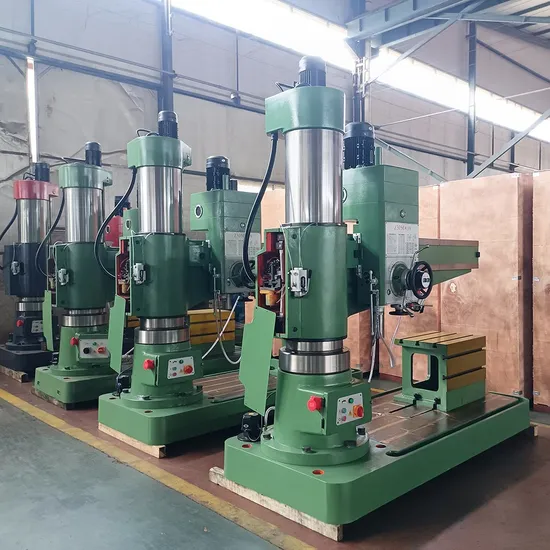

Z3040X13 Z3040×16 Z3050 Z3063 Z3080 Radial Drilling Machine FEATURES:
1. Using the hydraulic gear-change structure can save subsidiary time.
2. The forward rotating of spindle, stop (brake), shift and neutral-gear ect. are all controlled by a single handle, which is very convenient for operation.
3. The clamp structures of headstock, radial arm and internal and external column are controlled by hydraulic-driven rhombic block, which is very dependable.
4. The machine has sound and safety protective installation and external column.
5. We take lines of efficient measures during the structure design and manufacture of this machine to ensure a durable accuracy and longevity of the machine.
6. The electric equipment of this type of machine can make sure the safety of human life; what's more, it is dependable, durable and easy to maintain.
The large weight and stiff construction of the drill ensures stability and vibration free operationThe cube table ensures easy adjustment and filling of the workpieceHeight adjustment of the arm by motorControl panel located on the front of the drill for better performance and ergonomicsThe polished surface of the column ensures easy, free and precise travel of the armDrill equipped with manual blocking of the head and arm of the columnThe large speed range ensures precise and fast processing
Product Parameters
Modle | Unit
| Z3032×10 | Z3040×13 | Z3050X16/1
| Z3063x20/1
| Z3080x25
|
Table SIZE (L*W*H)
| mm
| 630X500X500
| 800X630X500
| 1000X800X560
|
Dimensions of Box Table
| mm
| 630X500
| 800X630
| 1000X800
|
T-slot
| No.
| 5 | 5 | 5
| 7
| 7
|
T Distance between two adjacent T-slots
|
| 150
|
T Width of T-slot
|
| 22
|
Dimensions of base
| mm
| | 2400X1000X200
| 2900X1250X250
| 3530X1400X300
|
Working surface of base
| mm
| | 1560X830
| 1950X1080
| 1200X2380
|
T-slot/Width/Distance
|
| 4/28/180
| 4/28/250
| 4/28/276
|
Distance from spindle axis to column
| mm
| 360-1000 | 360 - 1300 | 350-1600
| 450-2000
| 500-2500
|
Distance from spindle nose to table surface
| mm
| 140-1100 | 260 - 1300 | 320-1220
| 400-1600
| 550-2000
|
spindle head travel(horizontal)
| mm
| 1000 | 1100 | 1250
| 1600
| 2000
|
Spindle taper
|
| MT4 | MT4 | Morse No.5
| Morse No.5
| Morse No.6
|
Quill travel
| mm
| 220/280 | 315
| 400
| 450
|
Max.drilling diameter
| mm
| 35 | 40 | 50
| 63
| 80
|
Speed Range /steps
| rpm
| 75-1220 | 28-1200 | 25-2000(16)
| 20-1600(16)
| 16-1250(16)
|
Max.output torque of spindle
| N.m
| | 500 | 500
| 600
| 1568
|
Spindle feed/steps
| mm/r/step
| 0.1,0.16,0.25 | 0.1-0.25 | 0.04-3.2/16
| 0.04-3.2/16
| 0.04-3.2/16
|
Spindle motor power
| kW
| 4
| 5.5
| 7.5
|
Elevating motor
| kW
| 1.5 | 1.1 | 1.5
| 2.2
| 3
|
Coolant pump
| kW
| 0.09 | 0.09 | 0.09
| 0.125
| 0.125
|
Clamping type
|
| hydraulic
|
Overall dimension (L*W*H)
| mm
| 1500×705×2050 | 1600×700×2050 | 2500X1070X2840
| 3080X1250X3400
| 3730X1400X4025
|
Package dimension (L*W*H)
| cm
| 158×75×213 | 167×77×217 | 258X111X270
| 318X142X309
| 380×147×410 |
Net weight
| kg
| 1100/1200 | 1500 | 3500
| 7000
| 11000
|
Radial drilling machine is a kind of hole processing equipment, which can be used for drilling, reaming, reaming, tapping, end face repair and other forms of processing. According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among all kinds of drilling machines, radial drilling machines are easy to operate, flexible, widely applicable and typical, especially suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general machining workshops.
