Basic Info.
Automatic Grade
Automatic
Max Rubber Sheet Width
800mm
Rubber Sheet Thickness
4-12mm
Machine Speed
5-25m/Min (Adjustable)
Number of Cooling Fans
12 Sets
Distance Between Hanger
127mm
Sheet Hanging Length
1400mm(Adjustable)
Transport Package
PE Film Wraps
Specification
CE, ISO9001
Production Capacity
50set/Year
Product Description
Why Choose Products from Lanhang Machinery
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management

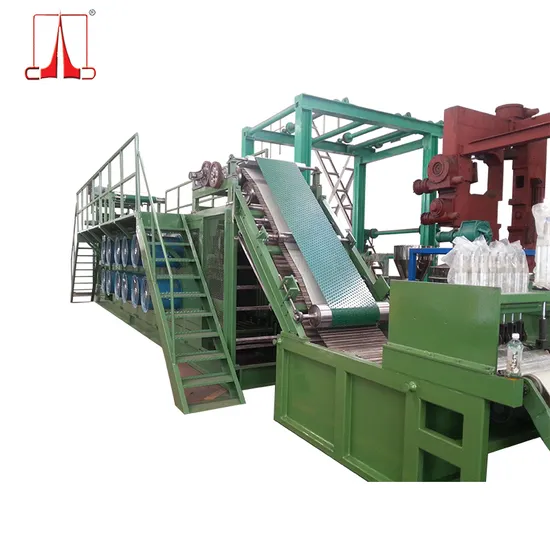

Technical Parameters:
| Model | XPG-600 | XPG-800 | XPG-900 |
| Max. rubber sheet width | mm | 600 | 800 | 900 |
| The thickness of the rubber sheet | mm | 4-10 | 4-10 | 6-12 |
Rubber sheeting temperature
over room temperature after cooling | °C | 10 | 15 | 5 |
| Linear speed of taking-in conveyer | m/min | 3-24 | 3-35 | 4-40 |
| Linear speed of sheet hanging bar | m/min | 1-1.3 | 1-1.3 | 1-1.3 |
| Hanging height of the sheet hanging bar | m | 1000-1500 | 1000-1500 | 1400 |
| Number of cooling fans | Set | 12 | 20-32 | 32-34 |
| Total power | kW | 16 | 25-34 | 34-50 |
Dimensions | L | mm | 14250 | 16800 | 26630-35000 |
| | W | mm | 3300 | 3400 | 3500 |
| | H | mm | 3405 | 3520 | 5630 |
| Gross weight | t | ~11 | ~22 | ~34 |
>>
