US$700.00-900.00
|
5 Sets
(MOQ)
|
Basic Info.
Application Field
Agriculture, Livestock, Aquaculture
Farming Policy
Bed Planting Machinery
Operation
Soil Preparation Machinery, Movable Operation
Arbor Configuration
Horizontal Axis
Transport Package
Steel Crate or Wood Package
Production Capacity
1000 Sets/Year
Packaging & Delivery
Package Size
115.00cm * 65.00cm * 80.00cm
Package Gross Weight
287.000kg
Product Description
Product Description

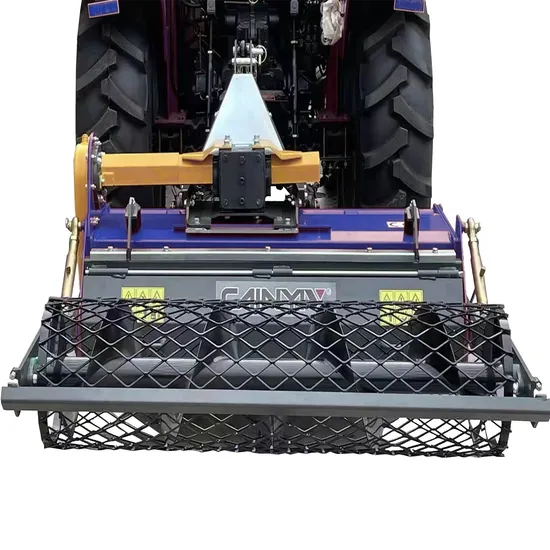

This is a high-quality stone burier for compact tractors with 3-point linkage . It is a more advanced tiller with blades that bury stones and debris at a depth of 4-6 inches and cover them with tilled, fine soil afterwards levelled by the roller. Such well-prepared ground is ready for seeding grass or laying turf rolls. It is also perfect for seeded vegetables and fruits providing well tilled and aerated soil bed at one pass of the machine. Doing all three activities at one pass provides savings on time and fuel.
MODEL | SB 105 | SB 125 | SB 145 | SB 165 |
Structure Weight | 330kg | 355kg | 380kg | 405kg |
Tilling Width | 950mm | 1150mm | 1350mm | 1550mm |
Tilling Depth | 120mm | 120mm | 120mm | 120mm |
No. of Blade | 16 | 20 | 24 | 28 |
PTO Turning Speed | 540r/min | 540r/min | 540r/min | 540r/min |
Tractor HP | 20-28hp | 25-30hp | 28-40hp | 35-45hp |
Detailed Photos
Packaging & Shipping
Installation Instructions
Company Profile
Changzhou Qianyi Machinery Technology Co.,Ltd existing staff 50 people, in 2021 passed the ISO9001 quality system certification and passed CE certification.
Accumulated after years of development, we have many advanced equipment, like Germany fast Trulaser3030 laser cutting ,machine, CNC punch press TruPunch1000, CNC shearing machine, CNC lathe, bending machine, seam welding machine and more than one formula 1-160-1 high-end mechanical production equipment.
We provide good design, to help customers reduce costs of development and improve production efficiency. With complete testing equipment, strict quality control and abundant technical force, our machines are mainly exported to European, North American and Southeast Asian countries.
All of our machines are with one year warranty. We often insist on one principle"Better quality!Better service!Better price!"
>>
