CE Eac Saso Glass Sightseeing Elevator Panoramic Elevator Lift

US$10,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

TWJ

Type

without Machine Room

Speed

1.00 - 2.00m/s

Capacity

500-1000kg

Persons

11 - 19

Shape

360 Degree Circular

Number of Sides

Four

Driving Type

AC Elevator

Control Mode

Collective Selective Control

Elevator Door

Center Opening Door

Door Knife

Single

Certificate

CE, ISO, Eac, Saso

Control System

Monarch, Step, Customization

Motor

Gearless Permanent Magnet Synchronous Motor

Traction Ratio

2:1

Door

Center Opening, Side Opening

Transport Package

Wooden Box

Trademark

MACRO

Origin

China

HS Code

8428101090

Production Capacity

2000

Product Description

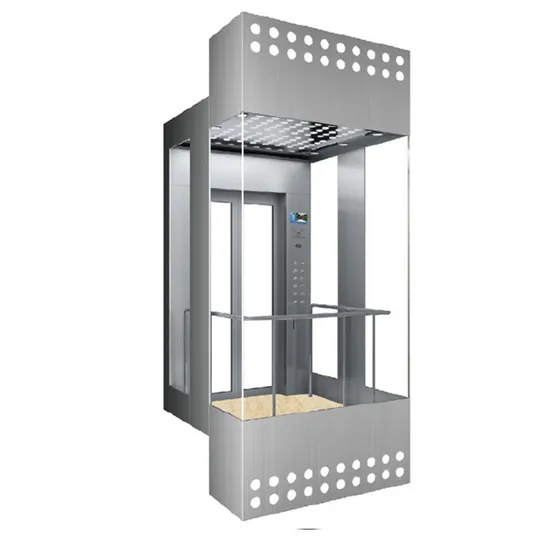

Panoramic Elevator
Brighten your building with its noble and elegant appearance. Widen passengers' vision But allowing passengers to appreciate the landscape outside the elevator from multiple angle. MACRO panoramic elevator gives the build personality and vitality. Whether is outdoor or indoor, panoramic elevator is the focus of everyone's attention. Passenger riding in it can easily enjoy the architecture art style and the surrounding scenery. The dynamic and colorful style becomes a flowing scenery in the building.
Semicircle sightseeing elevator shaft layout
Square sightseeing elevator shaft layout
Technical specifications

Load Capacity (kg)	Speed (m/s)	CWCDCH (mm)	OP*OPH (mm)	HW*HD (mm)	OH (mm)	PH (mm)
630	1.0	110014002500	700*2100	1900*1800	4300	1500
	1.5				4400	1600
	1.75				4500	1600
800	1.0	135014002500	800*2100	2150*2050	4400	1500
	1.5				4500	1600
	1.75				4600	1600
1000	1.0	160014002500	900*2100	2400*2200	4600	1600
	1.5				4600	1650
	1.75				4700	1700
1150	1.0	140018002500	9000*2100	2300*2200	4600	1600
	1.5				4600	1650
	1.75				4700	1700
1350	1.0	170018002500	1100*2100	2700*2400	4600	1700
	1.5				4700	1750
	1.75				4800	1800
1600	1.0	190018002500	1100*2100	2900*2500	4600	1700
	1.5				4700	1750
	1.75				4800	1800
