Large Diameter Hose for Trenchless Rehabilitation Pipe in Liner 300

US$0.80-8.00 1,000 Meters (MOQ)

Basic Info.

Model NO.

pipe in liner 300

Compound Material

Fabric Reinforced Flexible Plastic Pipes

Material

PE-Al-PE

Installation and Connection

Clamping Type Installation

Technology of Plastic Composite Pipe

Hot Dip

Base Pipe of Plastic Composite Pipe

Welded Steel Pipe

Internal Coating Materials of Plastic Composite Pipe

Polyethylene Coating Steel Pipe

Plastic Composite Pipe Coating Form

Inner Coating

Plastic Composite Pipe Model

GS-—X-SP-T-EP

Steel Skeleton PE Pipe Use

Municipal

Aluminium Plastic Compound Pipe Use

Water Heater Tube

Steel Plastic Composite Pipe Model

GS-—X-SP-T-EP

Aluminium Plastic Compound Pipe Material

Crosslinked Polyethylene Aluminum Composite Pipe

4.0MPa

Transport Package

Cartons

Specification

LINER 300

Trademark

ZYfire

Origin

China

HS Code

40093100

Production Capacity

1000000m/Month

Product Description

Liner 300

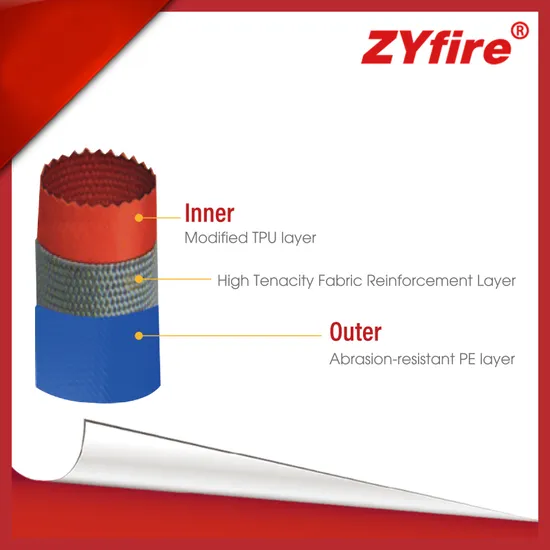

Raw Materials:
High tenacity fabric reinforcement layer,
abrasion resistance PE cover, Modified TPU tube.
Gas Solution

Description	Parameter
Host Pipe ID	80mm ~ 800mm (3" ~ 32")
Max. Operation Pressure	1.0Mpa ~ 8.0Mpa
Max. Bursting Pressure	3.0Mpa ~ 24Mpa
Max. Length of Installation	≥ 4000m (13,200ft)
Wall Thickness	4mm ~ 8mm
Abrasion Resistance (DIN53516)	10.5mm3
Temperature of Media	-40ºC ~ 70ºC
Installation Mode	Fold in U-sharp
Pulling Speed	Up to 400m/h
Service Life Duration	50years
**All the above technical parameters are depends on diameter.
