US$88,500.00-92,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Emission Standard
Euro4, Euro5
Chassis Brand
Japan I Suzu
Cabin
Single or Crew Cabin, 2+4 Passengers
Tire
11.00r20, 10 Pieces with One Spare Tyre
Water Tank Capacity
10000 Liters
Foam Tank Capacity
2000 Liters
Water Pump
CB10/60, 60L/S
Fire Monitor Range
More Than 50m
Tool Box
4-5 Set as Optional
Accessories
with Ladder, Alarm Lights
Delivery Time
Within 40 Days
Transport Package
Naked or Waxed Before on Board
Specification
CCC, ISO9001
Production Capacity
1000set/Month
Product Description
HUEBEI CHENGLI SPECIAL AUTOMOBILE CO.,LTD

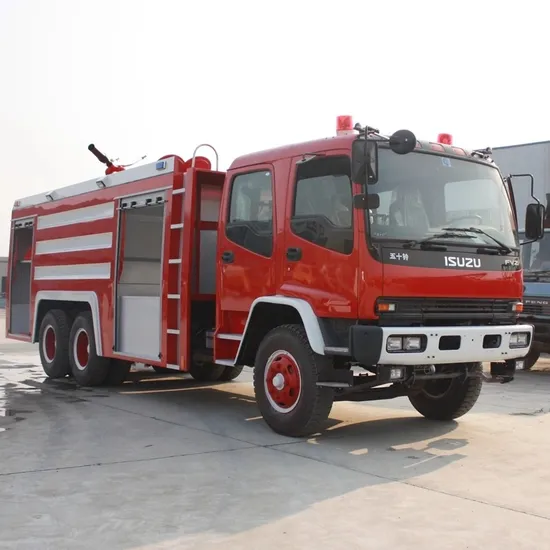

I. Details of 6x4 FVZ large 12ton 3500 gallons 10000l water tank and 2000l foam tank fire truck
Function:
Fire fighting truck (also called fire water truck, fire fighting tanker, water tank fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, fire service truck, fire hydrant and fire water tanker) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire fighting truck can be divided into many types:
1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent, there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.
II. Technical data of 6x4 FVZ large 12ton 3500 gallons 10000l water tank and 2000l foam tank fire truck
Japan FVZ Fire Fighting Truck water foam 8000L 15ton 6 wheels 4X2 fire rescue Fire Truck |
Product Name | Japan double cabin fire truck, fire fighting truck |
Vehicle Brand Series | I SUZU |
Vehicle Model | VLW5250JPXF |
Chassis parameters | Overall dimensions | mm | 9550X2500X3500mm |
Gross weight | kg | 25000 |
Curb weight | 9560 |
Rated payload | 15550 |
Suspension F/R | mm | 1335/2230 |
Wheel base | 4650+1300 |
Driving type | 6*4 |
Chiassis model | QL1250WPFZY |
Number of axles | 3 |
Tire specification | 11.00-20-16PR,11.00R20-16PR,11.00R20-16PR |
Number of Tires | 10+1 |
Passengers in cab | 4+2 |
Engine | Engine model | 6HK1-TCH, 300HP |
Type of fuel | Diesel |
Displacement/power | ml | 7790/177kw |
Max speed | Km/h | 95 |
Emission standard(TAS) | EURO 4 , 5 |
Fire performance | Tank capacity | water tank capacity:10000kg |
foam tank capacity:2000kg |
Fire pump | Brand:Shanghai Rongshen |
Model: CB20.10/30.60 |
Low-pressure:30L/S |
Medium-pressure:60L/S |
Fire monitor | Brand:Zhangqiu |
Model:PL48-64YZ |
Flow:48L/S |
Water jet distance:≥60m |
Foam jet distance:≥55m |
Electronic alarm | LY CJB-100-C24 |
Alarm lamp | LY TBD-XF-168LED |
1. Fire fighting truck chassis Model: JAPAN BRAND,SINOTRUK, SHACMAN, DONGFENG, FOTON, tec.
2. Engine Model: Dongfeng Cummins (260HP-375HP), Yuchai (290HP-375HP), weichai(270HP-380HP).
3. Drive model: 4x2 , 6x4 , 8x4;
4. Engine: EuroII,III,IV,V Emission standard;
5. Right/Left hand drive ;
6. Fire fighting truck type: water tank, water and foam tank,water,foam and powder. III. Fire truck details
IV. FIRE TRUCK ACCESSORIES
V. PRODUCT SHIPPING (RORO OR BULK SHIP)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
VI. COMPANY INFO
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. LPG tank/LPG bobtatil truck/ LPG trailer
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck/Fuel dispenser truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Garbage truck/Compactor garbage truck/ hook lift garbage truck/swing arm garbage truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck/vacuum jetting truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck/Manlift ruck
11. Sweeper truck
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / aluminum trailer, etc. )
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. Can offer the OEM, ODM service.
5. The heart of the service, rational design
After-sale services:
1. One year quality warranty for key parts such as axles, engine, transmission, tracking service is lifelong.
2. Overseas service center to ensure efficiency after-sales service.
3. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
4. Chassis:Please find the local nearest service station for repair or maintenance ,you also can contact us with 24-hour hotline or whatsapp or email.
5. Spare parts: Superstructure spare parts can be sent immediately when the problem occurrs .
Welcome to contact with us for more info. We will offer you the best truck as we can .
Mrs CiciSales DirectorChengli Special Automobile Co., LtdFactory: Chengli Automobile Industry Park,Suizhou, Hubei, ChinaOffice: Block 2,Fengzeyuan Villa,Dongxihu District,Wuhan, China
>>
