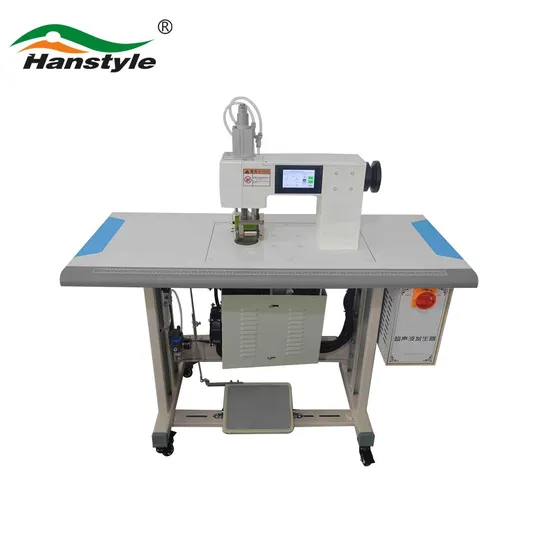

Manufacture Non-Woven Bags High Speed Ultrasonic Sewing Machine Support Different Flower Wheels

US$980.00-5,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
H-US20D
Condition
New
Certification
ISO9001
Application Place
Factory
Applicable Thickness
Middle Thickness Material
Drive
Electric
Thread Number
Single Thread
Needle Number
Single Needle
Stitch Type
Chain Type
Transport Package
Export Stanard Case
Specification
2000W
Trademark
Hanstyle
Origin
China
HS Code
8452290000
Production Capacity
5000PCS/Year

Packaging & Delivery

Package Size
130.00cm * 65.00cm * 120.00cm
Package Gross Weight
150.000kg

Product Description


Manufacture Non-Woven Bags High Speed Ultrasonic Sewing Machine Support Different Flower Wheels
Product Description
Description:Ultrasonic bonding is achieved by transmitting high frequency vibration to the fabric. When synthetic materials or nonwovens pass between the corner and anvil of the ultrasonic equipment, the vibration will be directly transmitted to the fabric, through generating heat rapidly in the fabric. The ultrasonic energy generated by the ultrasonic generator is added to the transducer to generate longitudinal mechanical vibration, which is amplified by the horn and the tool head to obtain uniform and strong ultrasonic on the plane of the tool head (also known as the welding head).
Two groups of adjustable speed motors drive the welding head and the welding roller to rotate respectively. When the roller is pressed down, it contacts with the working surface of the tool head. Under the action of ultrasonic mechanical effect (up and down vibration) and thermal effect, the fabric between the roller and the working surface of the welding head can be cut, perforated, stitched and welded..
Product Specification
Model No:H-US15/18H-US20AH-US20DH-US20RH-US30RH-US35R
Frequency:15KHz / 18KHz20KHz20KHz20KHz30KHz35KHz
Power:2600W / 2200W2000W 2000W 2000W 1000W 800W
Generator: Analog / DigitalAnalogDigital DigitalDigitalDigital
Speed(m/min):0-180-150-1850-6050-6050-60
Melting Width(mm):≤80≤80≤80≤12≤12≤12
Type:Manual / PneumaticPneumaticPneumaticPneumaticPneumaticPneumatic
Motor control mode:Speed board / Frequency converterSpeed board Frequency converterFrequency converterFrequency converterFrequency converter
Number of Motors:Single / DoubleSingle / DoubleSingle / DoubleDoubleDoubleDouble
Horn Shape:Round / SquareRound / SquareRound / SquareRotaryRotaryRotary
Horn Material:SteelSteelSteelHigh Speed SteelHigh Speed SteelHigh Speed Steel
Power:2600W/2200W 2000W 2000W 2000W 1000W 800W
Power supply:220V/50Hz220V/50Hz220V/50Hz220V/50Hz220V/50Hz220V/50Hz
Dimensions: 1280*600*1300mm1280*600*1300mm1280*600*1300mm1280*600*1300mm1280*600*1300mm1280*600*1300mm

Product Advantage
1. Using ultrasonic and special steel wheel processing, the edge of the seal does not crack, does not damage the edge of cloth, and there is no burr, curl phenomenon.2. It's easy to operate. It's not much different from the traditional sewing machine. Ordinary sewing workers can operate it.3. Low cost, 5 to 6 times faster than traditional machines, high efficiency.4.The flower wheel is designed according to the pattern to enhance the strength and beauty of the processed products.5.Short welding time, ultrasonic automatic sewing without needle and thread, save the trouble of frequently changing needle and thread, the sewing speed is 5 to 10 times of the traditional sewing machine, and the width is determined by the customer.
Product Application
Ultrasonic sewing machine is based on the principle of ultrasonic welding. It is used for chemical fiber cloth, nylon cloth, knitted cloth, non-woven fabric, glue spraying cotton, PE paper, PE + aluminum, PE + cloth composite materials; it is suitable for clothing, jewelry series, Christmas ornaments, bedding, car cover, non-woven fabric, leather lace, pajamas, underwear, pillowcase, bed quilt cover, skirt head flower, hairpin ornaments, ribbon slitting, gift wrapping belt, composite cloth, mouth cloth, chopsticks cover Seat covers, coasters, curtains, raincoats, PVE handbags, umbrellas, food packaging bags, tents, shoes and hats products, disposable surgical clothing, masks, surgical caps, medical eye masks, etc. It has the advantages of one-time fusing molding, no burr, convenient wheel replacement, various styles, fast speed, no preheating and no temperature debugging.
