Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Certification
CE, ISO9001:2008
Output(Dry Cycle)
320 PC/Hr
Die Head Option
Accumulator Head
Transparent Line
Available
Production Usage
Toys, Auto Parts, Drum, etc
Transport Package
Film Packing with Wooden Bottom
Specification
Max capacity 120L
Product Description

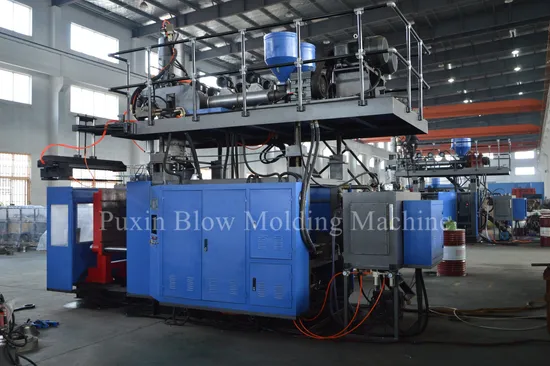

PXB100B
90L-120L Blow Molding Machine
- Double Drawbar clamping mechanism
- Perfect Usage for Chemical Drum, Road barrier, ABS car bumper
- High clamping force with short production cycle
- Patented Technology Die head system
- Optional Transparent line
Configuration List
PLC | MITSUBISHI | Japan |
Touch Screen | HITECH | Taiwan |
Inverter | MITSUBISHI | Japan |
Power Supply | MEAN WELL | Taiwan |
Relay | OMRON | Japan |
Hydraulic Valves | YUKEN | Japan |
Hydraulic Pump | YUKEN | Japan |
Contactors | LS(LG) | Korea |
Solid relay | FOTEK | Japan |
Breaker | LS(LG) | Korea |
Temperature Control Module | MITSUBISHI | Japan |
Oil Sealing | DZ | Taiwan |
Oil Tube | LIEBAO | Taiwan |
Transducer | GEFRAN | Italy |
Proximity Switch | SONON | China |
Motor | SIEMENS | China |
Air Valve | FESTO | Germany |
Parison Controller | Moog | Japan |
Servo Valve | Moog | Japan |
Parameters:
Material | | PE,PP,ABS... |
Max container capacity | L | 120 |
Output(dry cycle) | pc/hr | 320 |
Machine dimension(L×W×H) | M | 6.2×2.8×4.6 |
Machine weight | T | 15 |
Clamping Unit | | |
Clamping force | kn | 450 |
Mold platen size(W×H) | mm | 1200×1200 |
Platen opening stroke | mm | 600-1400 |
Platen moving stroke | mm | 700 |
Max mold size(W×H) | mm | 900×1400 |
Mold thickness | mm | 510-650 |
Power | | |
Servo oil pump motor power | KW | 18.5 |
Servo pump displacement | L/MIN | 120 |
Blow pressure | MPA | 1 |
Air consumption | M3/MIN | 1.8 |
Cooling water pressure | mpa | 0.4 |
Water consumption | L/min | 180 |
Average energy consumption | KW | 52-60 |
Extruder unit | | |
Screw diameter | mm | 100 |
Screw L/D ratio | L/D | 24 |
HDPE Melting capacit for HDPE | kg/hr | 160-200 |
Number of heating zone | zone | 5 |
Screw heating power | kw | 25.1 |
Screw fan power | KW | 0.6 |
Extruder motor power | kw | 55 |
Die head | | |
Number of heating zone for single die head | zone | 5 |
Heating power for single die head | kw | 26 |
Max die-pin diameter | mm | 450 |
Accumulator capacity | L | 12(15) |
(HDPE) Accumulator weight(HDPE) | KG | 9(11) |
Delivery Time:
- No later than 65 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
>>
