CNC Lathe Machining Aluminum Part Mini Lathe Machine Metal

US$7,000.00
1-999 Pieces
US$6,000.00
1,000+ Pieces

Basic Info.

Model NO.
SZGH-36J
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Keywords
Turning-Milling Center
Performance Classification
Economical CNC Machine Tools
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventio
Processing Precision
0.01~0.02(mm), 0.09~0.1(mm)
Max. Length of Workpiece
230mm
Spindle Nose Taper
A2-4
Spindle Motor Power
3.7kw Servo Motor
Collet Type
Hydraulic Collet
Gang Type Tool
5 Gang Type Tool Holders
Transport Package
Wooden Box
Specification
1750*1400*1800
Trademark
SZGHTECH
Origin
China
HS Code
8458110090
Production Capacity
50000

Product Description

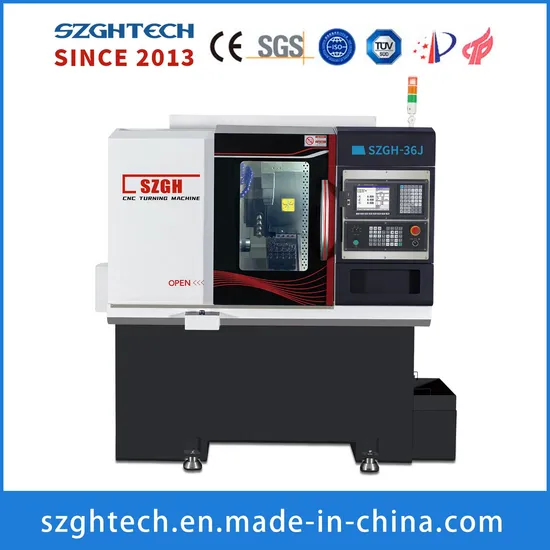

SZGH CE Approved China High-Quality Metal Processing Automatic CNC Turning Lathe CNC Machine
It is suitable for batch production of copper, iron, aluminum and stainless steel bars within 35mm, and batch production of open-type forged parts with automatic feeding of pellets within 50mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 2mm, precision tolerance within ±0.01mm, and smoothness within 1.6.It is widely used in hard rail CNC lathes, replaced by 46 large CNC lathes with small parts, etc., to achieve the effect of improving efficiency and cost-benefit ratio.
SZGH-36J lathe is suitable for batch production of copper, iron, aluminum and stainless steel bars within 35mm, and batch production of open-type forged parts with automatic feeding of pellets within 50mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 2mm, precision tolerance within ±0.01mm, and smoothness within 1.6.It is widely used in hard rail CNC lathes, replaced by 46 large CNC lathes with small parts, etc., to achieve the effect of improving efficiency and cost-benefit ratio.
Project
Unit
Standard value
Max value






Processing capacity
Max. diameter of bar bore/ bar capacity
mm
35
-
Max. particle diameter (disk type)
mm
250
300
Max. length of workpiece
mm
210
230
Cutting amount of stainless steel on one side
mm
2
3
Machining accuracy of the workpiece
mm
±0.01
-
Surface roughness
Ra
1.6
-
the height of center tool holder
mm
40
-
Turning Diameter
mm
350
-
Square Knife Specifications
mm
16
-
Travels
X-axis effective travel (diameter)
mm
600
-
Z-axis effective travel
mm
230
-


Feed
X-axis rapid traverse
m/min
25
30
Z-axis rapid traverse
m/min
25
30
X-axis servo-motor power
kW
1.3
-
Z-axis servo-motor power
kW
1.3
-


Spindle
Max.Spindle Speed
rpm
3500
4000
Spindle Motor Power
kW
3
-
Spindle nose taper
-
A2-4
-
Support hydraulic chuck size
inch
6
8
Dimensions
Dimensions
mm
1750*1400*1800
-
Total Weight
kg
1800
-

Machine tool specifications and component items
Specification
Standard
Optional





Part Specifications
Screw
25mm
Taiwan ball grinding precision grade
-
Guide rail
25mm
Taiwan H-class linear guide rail
-
Bearing
-
Wuxi two-axis Harbin high-speed angular joint fusion bearing
Spindle motor
3kW
Variable frequency drive type
3.7kW servo spindle
Feed servo
1.3kW
SZGH Speed Servo
-
CNC Control
-
SZGH
SZGH


Machine specifications
Bed Type
30°
Slant Bed
-

Base form
-
Heavy-duty anti-deformation patented base
-
Clamping method
-
Hydraulic clamping


The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.
The machine include 3 Axis standard type Lathe CNC Controller ,with 8.4 inches display(800x600) ,2 analog spindle,2ms interpolation in high speed, support ATC , PLC and macro function. which obviously improve the efficiency, precision and surface quality of parts processing. New USB interface,it supports the file operation and program running in flash disk
Controller System
1)2-5 Axis Fully English Type CNC lathe controller; 2) 800x600 8.4 inch real color LCD displayer;
3) Electric Turret & Binary code turret,Max: 99 pcs tools;
4) Support ATC , Macro function and PLC function;
5) Max speed is 60m/min, feeding speed is 24m/min;
6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing;
7) High anti-jamming switch power(100V-240VAC 50Hz/60Hz -> 24VDC);
8) 64MB Memory , 56Mb user store room;
9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade;
10) Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V;
11) 32 bits ARM microprocessor+FPGA Technology;
12) Basic I/O: 36X36, can be edited freely;
13) Cutter offset : C;
14) Installing dimension, electric interfaces, instruction system and operating windows being compatible with those of GSK980TDb Turning CNC System

FAQ

1:How can I choose the most suitable machines ?Please tell me your specifications,we can choose the best model for you , or you can choose the exact model.
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,Lathe Machines,Drilling Machine , Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3. When is the delivery time?If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What are your trade terms?FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?1 set .(Only some low cost machines will be more than 1 set )7.How to guarantee precision?In order to guarantee high precision, we use integrated bed, and imported accessories, such as ball screw rods,Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm
