Full Automatic Paper Car Air Freshener Stringer Machine

Product Description

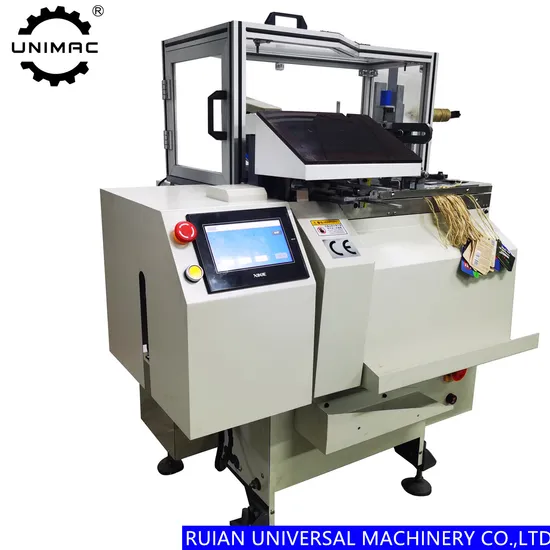

Full automatic elastic string tag threader machine (TL-LY8-U2)
Description:
The machine is currently the first, and the only one can do elastic string of the machine. Can also do a variety of other non-elastic string. Automatic punching, threading, knotting, counting. Debugging and maintenance is simple, easy to learn, the main whole mechanical structure, not the design of complex circuits, the use of inverter control the main motor drive all mechanical structures.

Specification:

Model:	TL-LY8-U2
Speed:	3600 to 4000 pcs/hour
Tag size:	30*35mm to 95*150mmTag
Tag place the height:	230mm
String diameter:	0.3-1.2mm
String length:	80-200mm
Tag hole diameter:	3mm, 4mm, 5mm (can change the mould)
Knot length:	15-18mm
Tag thickness:	150-700g
Machine dimension:	1300*1000*1300mm
Machine weight:	550kgs
Voltage:	380V or 220V, 50HZ
Power:	750KW

sample show:
