Deatailed information:

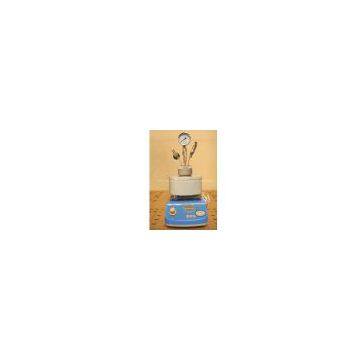

1.Matierial: body : pure titanium/or 316L stainless steel , operating table :316L stainless steel, Pressure resistance:6Mpa.
2.Heating:heat around the reactor directly,easy to operate,heating up fast,easy to use.
3.Working temperature:below 400℃
4.Heating power:300W-500W, temperature control precision: ±1℃
5.The valve pipe are imported from US,and the mouth are standard equipped.
6.stirring speed,digital temperature display:0-1500RPM,stirring speed precision: ±1RPM
Technical Highlights:
1.Make the cubersome experiment simplistic,the counter in the same operation can be realized in different environment or with different environment temperature/pressure diversified series of different experiments.
2.Through the RS232 communication interface with a computer connected to print and able to show the historical value of a user needs and the actual curve,real-time monitoring the software as a whole.
Application:
Catalysis,high temperature and pressure synthesis,dynamics testing,Fischer-Tropsch,and hydrogenation reaction.
Technical Parameters:
model
| TCGF-100ml
|
Materiral
| Titanium/316L stainless steel
|
Working temperature
| Below 400°C
|
Heating power
| 300W-500W
|
Temperature accuracy
| ±1°C
|
size
| φ80*120
|
Working temperature
| 6MPa
|
Stirring speed
| 0-1500RPM
|
Speed accuracy
| ±1RPM
|
Valve pipe
| Original German import
|
Can be customized
|
>>
