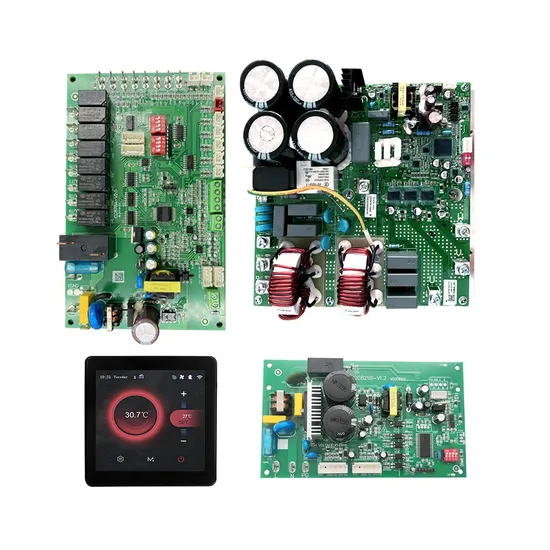

Commercial Air Source Heating Cooling Hot Water Heater DC Inverter Heat Pump Controller PCB Board PCBA

Product Description

Product Description Commercial Multifunctional heating cooling hot water heater Inverter Heat Pump Controller
CCHW004 Inverter Heat Pump Controller is designed for controlling commercial commercial Heating & cooling & hot water heat pump with DC inverter compressor driver control board.
Our heat pump control board are suitable for home and commercial hot water heater machines, pool machines, air-conditioning cooling and heating, chiller,and so on. Different application may need different technical data, please send us an inquiry with specific requirements, we will contact you immediately. The biggest advantage of ELECHICO is our ability to customize products for our customers to meet their diverse requirements. Because we have experience in R&D and manufacture of heat pump controller for more than 20 years. Our chief engineer had 20 year thermostat developing experience. Therfore, we are mainly exporting OEM/ODM services.
Founded in Foshan, China in 2003, Guangdong Chico Electronic Inc. is an advanced technology manufacturer and specializes in solution for intelligent control system in multiple industries.We operate two quality certified factories in both Foshan and Heyuan,China and have introduced a series of advanced equipment including automated AOI machine, SMT machine, automated assembly machine, FCT machine and so on.
* One-stop service from designing, manufacturing and testing.
* The competitive quality, the moderate price and the promptest delivery.
* A talented team of 60 experienced engineers continually raises the bar for the future, dedicating millions of RMB annually to research and development.
Detailed Photos

Product Parameters

Working mode	Heating, Cooling, Hot water
Hot water setting temperature	28ºC-60ºC
Cooling setting temperature	7ºC-30ºC
Heating setting temperature	15ºC-50ºC
Temperature range	-30~99ºC
Inverter frequency range	20HZ-120HZ
Accuracy	-30°C~50°C,±1°C±0.5dig; others, ±2°C±0.5dig
Power supply	220±10%(VAC) or 380±10%(VAC), 50/60Hz
Power consumption	<12W
Storage temperature	-25°C~50°C
Sensor type	NTC(5KΩ/25°C,B value 3470K)
Relay output capacity	Water pump(30A/250VAC), Others(10A/250VAC)
Nine control output	Water pump, Fan 1, Fan 2, Electric chassis heating, Electric crankshaft heating, Waterway electric Heating, Three-way valve, Four-way valve, Solenoid valve
Five switch input	Compressor high pressure switch, Compressor low pressure switch, Water flow switch, Emergency switch, Air Conditioning Demand Switch
Eight temperature sensor input	Water inlet temperature, Water outlet temperature, Return gas temperature, Exhaust gas temperature, Ambient temperature, Evaporator coil temperature, Cooling coil temperature, Water tank temperature
Two pressure sensor input	High pressure sensor, Low pressure sensor

Product Features * TFT touch screen display, quick parameter setting, easy operation.* Intelligent defrost control mode, more stable and energy saving.* Remote control of the device through mobile APP.* Power off memory function.* EEV and EVI control function,* Fan optional: AC fan/DC fan.
Wiring Diagram

Packaging & Shipping
Company Profile
FAQ 1. Q: What is delivery time?A: Within 15 working days for order less than 100pcs. Other Order Quantity can be delivered within 25-35 days.2. Q: What is warranty of products?A: All products are with 1 year guarantee.3. Q: Does your company accept custom made in OEM/ODM mode?A: Yes, we have a strong R&D team that can undertake OEM & ODM service.4. Q: How do you control your product quality?A: Firstly, our products are strictly in accordance with the ISO quality and CE system requirement. Secondly, each production procedure is designated by a particular engineer. Thirdly, we have a professional QC team.5. Q: Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.

---
