Multilink Low Pressure Filter Press / Pressure Filter

Product Description

1. Introduction
Model SD Multilink Low Pressure Filter Press is the most effective means of determining filtration properties of drilling fluids and cement slurries. All Multilink Low Pressure Filter Press assemblies consist of these items: mud reservoir mounted in a frame pressure assembly and regulator filter paper 25 ml graduated cylinder Measuring filtration behavior and wall-cake building characteristics of a mud is essential to drilling fluid control and treatment. The characteristics of filtrate, such as oil, water, or emulsion content are also important. The types and quantities of solids in the fluid and their physical and chemical interactions affect these characteristics. Temperature and pressure affect the physical and chemical interactions. Performing tests at both low pressure/low temperature and high pressure/high temperature is necessary, and these testing conditions require different equipment and techniques.
The basic filter press has a cell assembly constructed of stainless steel or aluminum material and includes the required screens and gaskets.
Working pressure is 0.69MPa and the filtering area is 45.6cm², as specified in API standard.

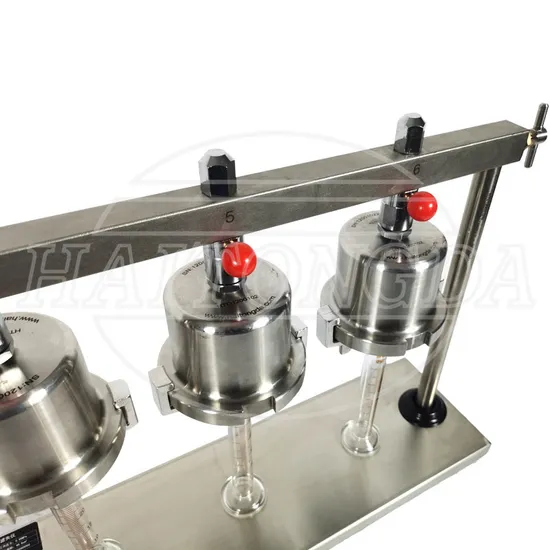

Multiple Unit Filter Press assemblies permit simultaneous running of three to six filtration tests. Each one of the assemblies consists of a frame with the indicated number of complete Stainless Steel filter cells. Manifolds are complete with air hoses, cut-offs and bleeder valves.

Compressed oxygen should not be used as a pressure source. Fire and explosion hazards exist when using oxygen.

2. Type Specification

Model	Name	Configuration
SD3/3B	3-Unit Low Pressure Filter Press	3-Unit aluminum /stainless steel drilling fluid cup
SD4/4B	4-Unit Low Pressure Filter Press	4-Unit aluminum/stainless steel drilling fluid cup
SD6/6B	6-Unit Low Pressure Filter Press	6-Unit aluminum/stainless steel drilling fluid cup

3. Technical Specification

No.	Technical Specification	Model
		SD3/3B	SD4/4B	SD6/6B
1	Work stress	0.69MPa
2	Maximum cup pressure	1.0MPa
3	Maximum drilling fluid injection	240ml×3	240ml×4	240ml×6
4	Effective filtration loss area	45.6cm ²
5	Net weight / Gross weight	7.88kg/9.74kg	11.3kg/14.5kg	13.54kg/28.34kg
		11.36kg/13.22kg	13.76kg/16.96kg	17.5kg/33.26kg
6	Overall dimensions	510×150×360mm	640×150×360mm	910×150×360mm
7	Packing size	560×425×265mm	720×420×230mm	1310×440×290mm

HOT SALES:
Certification:
Team:
Workshop:
Warehouse:
Transportation:
FAQ:
Q1 : Are you a manufacturer or a trading company ?
A1: We are manufacturer.
Q2: What is your main brand?
A2: Our brand is Haitongda, which is famous in China and other nation. Also we do OEM.
Q3: What are your business scope and product classification?
A3:Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.
Product classification: including drilling fluid analysis instrument, oil well cement testing instrument and field overall solution, including 22 small categories and over 120 products.
Q4: What is your MOQ for the order?
A4: Testers per 1 set.
Q5: What is the warranty period of your instrument?
A5: One year.
Q6: Can I get better offer if our order can be bigger?
A6: Certainly. We will give you better prices based on the quantity for your order.
Q7:What certificate do you have for your instrument?
Q7: ISO, SGS and so on
Q8: What is your lead time for our order?
A8: For new order: 3 weeks;
For stock order: 3 working days after T/T. Based on FOB Qingdao.
Q9: What is your advantage of your factory?
A9: We are the original oil ministry designated drilling fluid analysis equipment manufacturer in China, which was founded in 1968.
Q10: What is the process to become an agency?
A10: Please send us mail enquiry, then we will reply you as soon as possible.
