Product Description

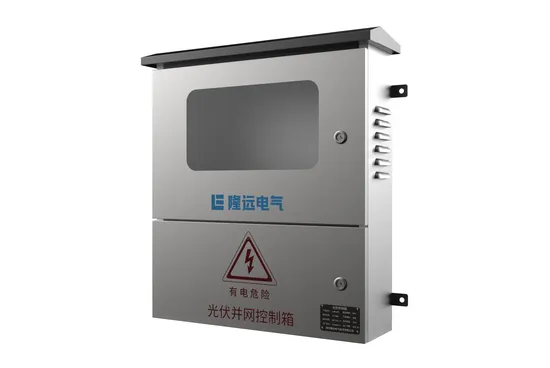

201 material photovoltaic grid connected box body 1.Product profile
Small distributed photovoltaic power stations generally have a capacity of less than 60kW and are directly installed on the user's roof. They adopt a mode of full grid connection, self use, and surplus grid connection, with grid voltage of AC220V or AC 380V, mainly for household photovoltaic use.
Photovoltaic grid connected cages are mainly used for grid protection of distributed photovoltaic power stations (especially household photovoltaic systems), generally connected to the output terminal of group inverters, to protect the entire line from overvoltage, undervoltage, short circuit, overload, leakage, and islanding. According to the State Grid's management measures for distributed photovoltaic grid connection, grid connection is a necessary configuration for household photovoltaic systems, mainly playing the roles of line electrical protection, energy metering, overvoltage and undervoltage protection, and automatic reclosing with voltage detection. 2.Technical indicators
performance parameter | Performance index |
Electrical parameters | Geopotential | AC 800V |
Applicable installed capacity | 3-60kW |
Applicable circuit | Single phase, three phase |
Number of input and output current paths | Input 1-2 channels, output 1 channel. |
rated voltage | AC 230V,AC 400V |
rated current | 6-100A |
Breaking capacity of circuit breaker | 6kA,10KA |
Input inverter power | 3kW-60kW |
Safety protection | surge protection | have |
Short circuit protection | have |
overpower protection | have |
earth leakage protection | Yes, optional |
Solitary disk protection | have |
Check for pressure coincidence | Yes (special integrated or self-assembled overvoltage and undervoltage combination for pressure detection) |
environmental conditions | Working temperature | -25ºC-50ºC |
storage temperature | -40ºC-70ºC |
altitude | ≤2000m (capacity reduction is required above 2000m) |
Salt spray resistance | Salt spray test 168h (customizable) |
case | Overall dimensions, height, width and depth mm | Single phase: 550 * 450 * 200 Three phase: 750 * 550 * 200 |
(The actual situation is slightly different according to different configurations) |
texture of wood | Plating front steel plate, cold rolled steel plate, 304 stainless steel, 201 stainless steel. |
Installation mode | Whole hanging installation |
the protection grades | IP65 |
