OEM Customized Automatic Finger Joint Timber Stacking Machine Wood Lumber Stacker

Product Description

Product Parameters

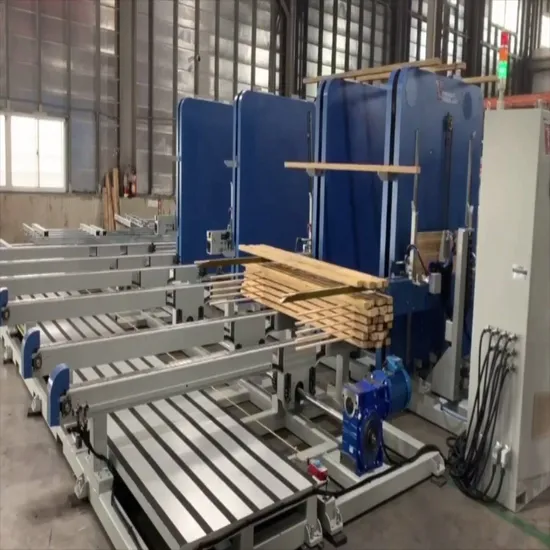

Automatic Finger Joint Board Stacking Stacker Machine

Model	ATS-2	ATS-3	ATS-4
Stacking Plate Length	800-3000mm	800-4000mm	800-5000mm
Stacking Plate Width	30-300mm	30-300mm	30-300mm
Stacking Plate Thickness	10-80mm	10-80mm	10-80mm
Number Of Units	2p	3p	4p
Motor Power	6.7kW	9.8kW	13.3kW
Stacking Width	1000mm	1000mm	1000mm
Stacking Height	1200mm	1200mm	1200mm
Weight	2800kg	4000kg	5200kg

Detailed Photos

Related Machines
CNC cutting saw
Furniture factories, sofa factories, tray factories, packaging factories, wooden house factories, etc
Automatically cut head and tail.Cut according to the set size.
Touch screen operation, simple and safe to operate
Servo motor feeding for more precise cutting
Precision rack and pinion transmission with high precision
Large sawing size, capable of sawing multiple wooden strips at once

MODEL	WS-4000D	WS-6000D
Feeding Speed	1-90m/min	1-90m/min
Feed length	450mm-4000mm	450mm-6000mm
Maximum sawing cross-section	300mm*120mm	300mm*120mm
error range	<0.4MM	<0.4MM
Spec.of Saw blades	Φ500MM	Φ500MM
Saw blade motor	5.5 kw	5.5 kw
Total power	8kw	8kw
pressure	0.6 mpa	0.6 mpa
Number of vacuum cleaners	2	2
Diameter of vacuum cleaners	Φ100mm. Φ150mm.	Φ100mm.Φ150mm.
voltage	380V/ 50Hz	380V/ 50Hz
With Intelligent speed control	YES	YES
Detection Switch	Omron, Japan	Omron, Japan
Overall dimensions (mm)	7600*1400*1700mm	9600*1400*1700mm
Weight (kg)	2000KG	2400KG

High Speed Crosscut Saw

MODEL	WS-400J	WS-500J
Feeding Speed	1-150m	1-150m
Feed length	450mm-6000mm	450mm-6000mm
Maximum sawing cross-section	120*10-80*40mm	230*85---250*75mm
Blade speeds	1-5 times/second	1-5 times/second
Spec.of Saw blades	400MM	500MM
Total power	9kw	11kw
pressure	0.6 mpa	0.6 mpa
Number of vacuum cleaners	3	3
Diameter of vacuum cleaners	Φ100mm	Φ100mm
voltage	380V/ 50Hz	380V/ 50Hz
With Intelligent speed control	YES	YES
Color code recognizer	Germany Sick	Germany Sick
Detection Switch	Omron, Japan	Omron, Japan
Overall dimensions (mm)	6200*1300*1600mm	6300*1400*1700mm
Weight (kg)	1800KG	2300KG
Automatically cut off both end Cut off defects after marking Fixed length sawing Prioritize sawing the longest dimension Zero waste
Manually keep away from the saw blade to avoid personal injury; Improve the precision of scar cutting and reduce material waste; Easy to operate, easy to learn and understand Processing 1200-1700 meters of wooden strips per hour; Save labor and reduce labor costs;

Optimizing Cross-cut Saw
Mainly used in wood processing plants and furniture factories for material preparation.
German Sick detection system.
The front end of the machine is equipped with a marking table, and the worker only needs to mark the position of the strip scar, and the machine will automatically identify the line and accurately cut it off.
It can optimize the combination and sawing of the non-defective parts according to the set size, improving the wood yield and production efficiency.

Model	WS-500YZ
Maximum feeding length	6m
Maximum truncation	100*80mm
Maximum truncation	30*10mm
Maximum feeding speed	200m/min
Raising speed	4-15 times/second
Saw axis speed	3500rpm
Diameter	450mm
main motor power	5.5kw
Servo motor power	4.78KW*2
Total power	16kw
Tilt angle	30°
Number of sorted kick legs	6
Compressed air pressure	0.4-0.8MPA
Optimize size quantity	1-80 pcs
Weight	4000kg
External dimensions(LWH)	18000m*1200m*1600mm
Feed table+host+discharge sorting platform+electric control box
Save labor and facilitate management.
Improve wood yield and production efficiency.
Manually keep away from the saw blade, safe and risk-free.

Automatic Comb Tenon Machine

MODEL	WS-600sc
Max working width	600mm
Min working thickness	120mm
Max.working length	800mm
Cutter speed	6000r/min
Draw saw speed	5600r/min
Triming saw speed	5000r/min
Tenoner cutter dia.	160mm
Tenoner cut-off saw dia.	70mm
Cutter motor power	11kw*2
Saw motor power	7.5kw*2
Feeder motor power	0.55kw*5
Working air pressure	0.5-0.8Mpa
Net weight	3600kg
Overall	dimensions 5000x5000x1400mm
With automatic gluing	YES
The material of the glue roller	Precision machined aluminum rollers
Automatically Trimming Comb on both ends, Automatically Gluing One worker operate only for loading the wood squares. Servo Motor with fast running speed,smooth and stable movements.

Finger Joint Machine (2 .5m DOUBLE UNIT)

Function	Extend the wooden strip after combing the teeth.
MODEL	WS2500	WS3000	WS6000
Processing length	2500mm	3000mm	6000
processing width	35-150	35-150	35-150
processing thickness	15-50mm	15-50mm	20-80mm
Size of working table	2600x500mm	3100*500mm	6000*500mm
saw blade Motor	2.2kw	2.2kw	2.2KW
Oil pump motor power	2.2kw	2.2kw	5.5KW
Max.thrust for oil pressure	4000kg	6000kg	7000KG
Feeding motor power	0.75kw	0.75kw	0.75 kw
Production speed	30m/min	30m/min	30m/min
Overall dimensions	4370x1100x1500mm	4870x1100x1500mm	7900x1500x1500mm
Weight	1000kg	1300kg	2000kg
Total power	5.7kw	5.7kw	9kw
Only one worker is needed for feeding, automatically squeezes and connects, saws and cuts, and discharges materials at a fast speed. The teeth are intact and without gaps.

Full Automatic Wooden Board Jointing Machine

MODEL	WS18PBZ	WSZ24PBZ	WS24PBZ*3M
Total length of equipment	19	24m	24m
Total width of equipment	6m	6m	7m
Maximum machining width	1.6m	1.6m	1.6m
maximum processing thickness	35mm	40mm	40mm
Maximum processing length	2500mm	2500mm	3000mm
Power of hydraulic station	18kw	20KW	20kw
Cutting edge saw power	3KW*2	3KW*2	3KW*2
Power of heating system	9KW	18KW	18kw
Intelligent thickness adjustment	YES	YES	YES
Material pressing method	Cylinder	Cylinder	Cylinder
Thermal insulation system	YES	YES	YES
Operator	1 person	1 person	1 person
production	50 sheets/hour	60 sheets/hour	60 sheets/hour
weight	1100KG	1300KG	1800KG
Automatic gluing - automatic extrusion - automatic edge cutting - automatic drying - automatic sawing - automatic elevator - automatic palletizing The equipment only requires one worker to feed the material in front, and the rest of the actions are automatically completed by the equipment.
Loading rack, gluing machine, machine head, hydraulic station, machine body, edge cutting saw, tail cutting saw, automatic stacking elevator, electric control cabinet

Sand planer

MODEL	WS1300
Motor power	1#:22kw,2#:37kw,3#:22kw
Conveying power	4kw
Elevator power	0.55kw
Processing width	1300mm
Processing thickness	1-110mm
Processing length	>=580mm
Belt length	1330*2200mm
Working air pressure	0.8mpa
Conveying speed	2-25 meters per minute
Weight	4000kg
First process planer diameter	180mm
Second sand frame steel roller diameter	240mm
Third sand frame rubber roller diameter	210mm

Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our finger joint machine including:
Multiple Ripsaw Cutting Machine
Single Blade Rip Saw Cutting Machine
Four Side Moulder
High Speed Cut Off Saw
Automatic Comb Tenon Machine
Automatic Finger Jointer Machine
Automatic Timber Stacker
High Frequency Wood Board Joining Machine
Planer Sander (Auto In Feeding,Up/Down Table,Turn Over,Stacking)
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!

---
