Plastic Injection Manufacturers Automatic Plastic Injection Molding Machine 120t

Product Description

#1	Machine Technical Parameter
	Model SZ-12500A Screw diameter mm 120 130 140 / Screw L/D ratio L/D 24 22.2 20.6 Max. Theoretical injection capacity cm3 6333 7433 8616 Shot weight(PS) g 5763 6764 7844 Max. injection pressure kg/cm2 1730 1480 1270 Max. injection speed g/sec 956 1122 1302 Max. plasticizing capacity g/sec 128 145 175 Screw stroke mm 590 Screw speed range r.p.m 0-95 Heating power Kw 85 Heating number qty 8 Clamping force MT 1250 Max. opening stroke mm 1300 / Mould height mm 550-1300 Distance between mould platens mm 2600 (×) space between tie bars(V×H) mm 1260×1260 (×) Mould platen size(W×H) mm 1870×1870 / Ejetor force/stroke ton/mm 26/400 Ejector number pcs 1 or 21 Oil pump power Kw 55+55 Pump P. max. MPa 16 (××) Machine size (L×W×H) m 14.9×3.60×3.5 Net weight ton 65

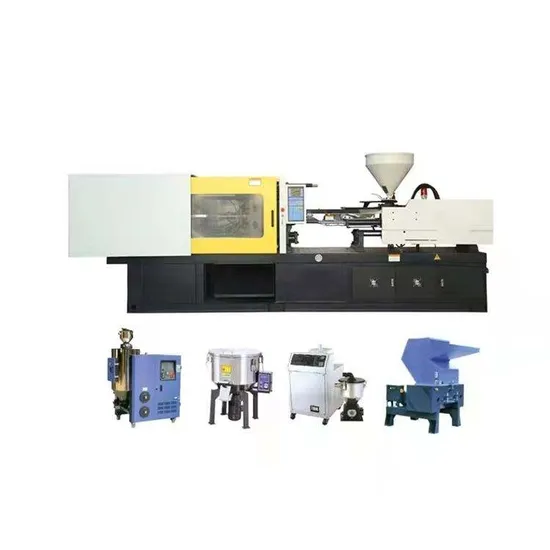

#2	Machine Photo

CLAMPING UNIT New type 5-point toggle device with the advantage of stable movement curve and gentle shock High-quality mould platen with enough intensity to ensure no out of shape if high-pressure clamping Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability Wear-resistant guide for moving platen Transducer control clamping stroke Many step control for speed and pressure of clamping and opening Ejection device offer dwell, single, more, vibration function Differential high speed clamping Low pressure mould protection function Hydraulic mould height adjustment drived by gear with rough and fine operation Mechanical and electrical dual safety interlock
Automatic centralized lubrication system with far pressure detector
INJECTION UNIT nitrided screw and barrel with long service life Smelted screw with big L/D ratio to the result
of high quality plasticizing and color-fixing. Double injection cylinder device featured compact
construction and good equilibrant. Transducer control injection stroke The speed of low speed and large torque hydraulic
motor can be freely adjusted. Screw back pressure control and nozzle anti-leakage
control Movable hopper for easy remove material Injection carriage can be generally used with the
function of slacking, re-feeding or fixed-feeding Many steps speed and pressure of injecting and
holding are controlled by time or position or both Equipped with reverse device to be easily removed and cleaned HYDRAULIC UNIT proportional pressure and flow control with the advantage of fine adjustment and high precision know-how manifold design, compact, reasonable and fast respond imported world famous hydraulic valves imported world famous hydraulic sealing rings import technology hydraulic hose and fittings low noise hydraulic system oil tank with inner stainless steel container precision oil filter oil cooler CONTROL UNIT The computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English language to display World famous electrical components Close-loop PID temperature control with the advantage of high precision. Deviation preset between high and low temperature. And break control for temperature sensor. Alarming system in case of cold start and no material in hopper Transducer control the injection and opening stroke to accuracy of ±0.05mm 99 steps speed control for increasing and reducing to suit for different technology demands Self-diagnostic and trouble alarm function Parameters lock function to avoid being changed 100 sets of production parameters can be stored into the computer memorial software Machine can record the quantity of products and automatically stop if up to the required quantity. Emergency stop device Company Profile
Certifications
Exhibition
Customer Photos

---
