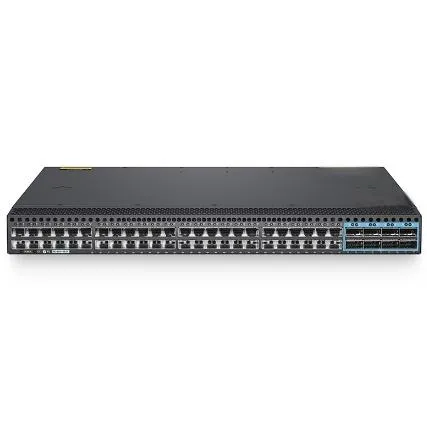

Kexint N5860-48sc, 48-Port Ethernet L3 Data Center Switch, Broadcom Chip

Product Description

Product Description N5860-48SC, 48-Port Ethernet L3 Data Center Switch, 48 x 10Gb SFP+, with 8 x 100Gb QSFP28, Support MLAG/Stacking, Broadcom Chip, FSOS Installed N5860-48SC is ideal for all sizes data centers and cloud computer services. It is a ToR high density switch in a compact 1U form factor with full line rate 48 1/10GbE and 8 40/100GbE ports, combining advantages of zero packet loss, low latency, and non-blocking performance for lossless Ethernet.
The layer 3 switch incorporates rich features, including industry-leading Broadcom chip, redundant hot-swappable power supplies and fans, EVPN-VXLAN, MLAG, Stacking, PFC, ECN, RDMA, etc. for scalable and flexible data center leaf-spine designs.

Product Spotlights Flexible 1/10/25/40/100GbE Interface Speeds Support MLAG/Stacking, BGP4/BGP4+, EVPN-VXLAN, REUP, GR, BFD Enable RDMA over Converged Ethernet Lossless (with PFC and ECN) 1+1 Hot-swappable AC Power Supplies, 3+1 Smart Fans Support Ansible, OpenFlow, NETCONF, etc. Configuration and Automation Tools Support SPAN/RSPAN/ERSPAN and In-band Network Telemetry (INT) for Visibility Support ACL, RADIUS, TACACS+, DHCP Snooping, etc. for Security Support SNMP v1/v2c/v3, CLI, Telnet, SSH Specification

Ports	48x 10G SFP+| 8x 100G QSFP28	Switch Chip	BCM56873
Max. 100G Ports	Cavium CN7130 (Quad-core, 1.2 GHz)	Switching Capacity	4K
Max. 40G Ports	2.56 Tbps	Forwarding Rate	96K
SDRAM	1920 Mpps	Number of VLAN	9216
Flash Memory	4GB	MAC Address	100000
Packet Buffer	8GB	Jumbo Frame	128,000/64,000
Hot-swappable Power Supplies	32MB	IPv4/IPv6 Routes	<1μs
Hot-swappable Fans	2 (1+1 Redundancy)	MTBF (Hours)	<300W
Max. Power Consumption	4 (3+1 Redundancy), Front-to-Back	Latency	330,000 Hours
Dimensions (HxWxD)	1.73"x 17.4"x 15.2" (44x 442x 387mm)	Battery Type	Lithium Metal

Software Spotlights High Availability and Multi-Service Support Support stacking links
Support IPv4/IPv6 Dual Protocol Stack
Support static Unicast Routes
Support IEEE 802.1p COS
Support GVRP, QinQ
Support SNMP over IPv6

Error-Free Network Configuration Support Syslog, Web-based management, Telnet, SSH
Support IPv4/IPv6/MAC/ARP ACL
Support ERPS
Support LLDP (802.1ab)
Support ACL Ingress/Egress
Support SNMP V1/V2/V3, RMON (group 1, 2, 3 and 9)

Secure and Simplified Access for Users and IoT Support Local/Radius Authentication
Support Port-based Authentication
Support Mac-based Authentication HTTPS and SSL (v3)
Support DHCP snooping
Support IP Source guard
Support DoS Protection

Connectivity Solutions
