Basic Info.
Model NO.
450, 550, 560, 680, 850, 880
Automatic Grade
Automatic
Energy Saving
Energy Saving
Product Name
Biomass Pellet Machine
Function
Making Biomass Pellets
Suitable Material
Hard Wood Briquette
Installation
Installation Video
Transport Package
Container
Specification
2200*900*1600mm
Production Capacity
3000set/Year
Packaging & Delivery
Package Size
220.00cm * 90.00cm * 160.00cm
Package Gross Weight
3000.000kg
Product Description
Product Description
wood straw pellet making machine ring and flat die biomass pellet mill

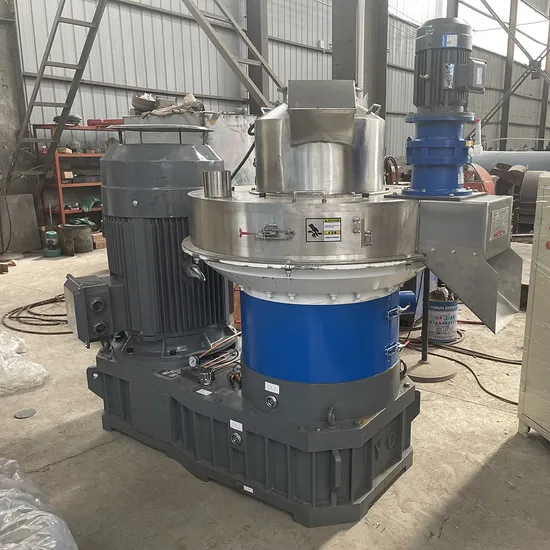

Biomass pellet machine is a kind of biomass energy pretreatment equipment. It mainly uses agricultural and forestry processing waste such as wood chips, straw, rice husk, bark and other biomass as raw materials, and solidifies it into high-density pellet fuel through pretreatment and processing. Biomass pellet machine is divided into flat die biomass pellet machine and ring die biomass pellet machine. Product Parameters
Model | MX-1600 | MX-900 | MX-750 | MX-550 | MX-450 |
power/KW | Main Machine | 160 | 90 | 75 | 55 | 45 |
| Pellet Pusher | 1.5 Spindle drive |
| Electric Grease Pump | 0.37 |
Rotation Speed/(r/min) | 1450 |
Voltage/V | 380, 3phase or customized |
Pellet Size/(mm) | 4-12 |
Pelletizing Temperature/(ÂșC) | 80-100 |
Raw Material Moisture Content/(%) | 15-25 |
Machine Weight/(t) | 7.6 | 6.8 | 5.6 | 3.6 | 2.9 |
Mould Diameter/(mm) | 580 | 560 | 500 | 450 | 400 |
Capacity/(t/h) | 2 | 1.5 | 1.2 | 0.8 | 0.6 |
Vacuum quenching process, making ring mold more wear-resistant
Double-layer mold, one set of mold can produce two kinds of pellets of different specifications, which can effectively reduce the cost. The ring die is made of 42CrMo material, which is more durable than alloy steel or carbon steel ring die
304 stainless steel shell
Prevent the water vapor corroded machine shell due to the high temperature evaporate of raw materials during the pellets making process.MINGXIN, choose 304 stainless steel to make the shell, to protect machine for long service life.
24 hours continuous work
Automatic lubrication system to ensure 24-hour uninterrupted work, thereby increasing production
30% reduction in failure
The main shaft is thickened by 15% and adopts a high-strength bearing structure to reduce the failure rate.
Application
1. Use Wood Chipper, Wood Crusher to make wood logs, chips (or other materials) smaller. 2. Use Dryer (rotary drum dryer / Air-flow dryer) or add water to the sawdust(or other materials) till its moisture content between 8-15%, which is the best moisture content for pelletizing. 3. Put the sawdust into the pellet machine gradually. Large scale pellet production need a screw feeder to make sure stable feeding of raw material. 4. After pelletized, the pellets are of high temperature that is not suitable for direct packing. So they should be cooled by pellet cooler. Then, pellets go through a vibrating sieve, where good pellets will be left, while broken ones or powder will be collected for reproduction. 5. After all the above procedures, pellets can be packed with a pellet packing machine.
Uses of biomass pellets:
1) Feed for livestock in large farms, easy to store and transport;
2) Civil heating and domestic energy, clean, pollution-free, easy to store and transport;
3) Fuel for industrial boilers and kilns, replacing coal and gas, and solving environmental pollution;
4) It can be used as a fuel for gasification power generation and thermal power generation to solve the problem of shutting down small thermal power plants.
Raw Material
Rice husks, sunflower seed husks, peanut shells, and other melon and fruit husks; branches, bark and other wood scraps; various crop straws, such as: wheat straw, corn straw, reed straw, rice straw,cotton Rods, etc.; various chemical raw materials such as rubber, cement, ash and slag.
1. Raw materials diameter requirement: 3-5mm(If large ,crusher machine should be used)
2. Raw materials moisture: 15-25%.(If beyond the scope,dryer machine should be used )
Packaging & Shipping
Inner packing: we can use plastic packing if the client needs
Outer packing: usually wooden case or the container
We can also pack the machine according to the client's need.
Delivery method: by sea
Delivery time: We respect the contract, and will deliver the goods on time as agreed for customized order. For normal products, we have stocks for immediate delivery.
Company Profile
Henan Mingxin Machinery Co. Ltd is a company that integrates science,industryand trade. The company mainly sells mechanical equipment and accessories, pipeline equipment,refractorymaterials, abrasive materials, water purification equipment, wire and cable. Our company follows thehuman-oriented, honest, pioneering entrepreneurial spirit with scientific and technological innovation.We have always regarded the technology as the motive force, the market as the orientation to makethe products first-class.
Our company insists on the professional development based on the principle of innovation and honesty. We win the market with our advanced skills, high-quality products and considerate services.The products in our company have been exported to the South Africa, Pakistan, Vietnam and other counties with the advanced technology, reliable quality and reasonable price. We have also got the good reputations from customers at home and abroad.
FAQ
Q: How about the quality of your products?
A:We put the quality in the first place based on the honesty. Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before the delivery.
Q: How about the price?
A: We pursue small profits but quick turnover, and we can give you lower price than other trading companies. If the product is really suitable and can benefit you, the price is negotiable.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly
>>
