US$32,500.00-89,900.00
|
1 Set
(MOQ)
|
Basic Info.
Computerized
Computerized
Application
PP PE Plastic Film
Degassing
Two(One Vacuum, One Nature)
Screw and Barrel
38crmoala, Nitrogen, Bimetallic
Deliverying Time
45 Working Days
Speed Control
by Inverter
Transport Package
Film Packing and Wood Case or Wood Base
Specification
Pellets size: 2.5*3 mm
Production Capacity
10sets/Year
Product Description
Brand Jorbin Machinery Origin Zhangjiagang City/Jiangsu Province/China |
Automatic Plastic Film/ Woven Bags/ Jump Bags Granulating Recycling System
ML series single screw single stage/double stage extruder is mainly composed of screw and barrel ,momentum driving system,heating,cooling and electric controllers etc.It is mainly used in plasticizing and extruding of PE,PP,EVA,CPP,BOPP,PS,PPS,EPS,ABS,PA,PLA film,bags,woven bags,raffia,bubble film,nonwoven fabric,filament and other plastic products.
Features
1. Low energy consumption and high output;
2. Practical and reliable;
3. Water recycling, green and environmental protection;
4. Working 24 hours a day, greatly improving production efficiency;
5. The program has a high degree of automation, simple operation and stable performance;
6. Adapt to a wider range of materials;
7. Frequency conversion control;
High quality Plastic pelletizer machine
Raw material: PE PE CPP BOPP PS PPS EPS ABS PA PLA soft plastic recycling material;
Output:150-800kg/h;
screw:single screw;
Stage:single stage/double stage;
Cutting type: water ring;
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)
-Machine layout-
- Product Parameter -
Recycling material of this machine
Material | PE,HDPE,LDPE,LLDPE,PP,CPP,BOPP,EPS etc. |
Shape | Film,bags,woven bags,raffia,bubble film,nonwoven fabric,filament |
Type | Loose,Bundle,Roll,Scrap |
Origin | Off cut,Agglomerator film,In house waste,Regrind |
Can be customized
The main design output is between 150 ~ 1000kg/h, according to the different needs of customers to determine the yield.
Type Configuration |
Single stage | L/D | Capacity | Single Stage Motor | Double Stage | L/D | Capacity | Single Stage Motor | Second Stage Motor |
ML85 | 85mm | 150-200kg/h | 55kw | ML85-85 | 28-10 | 150-200kg/h | 55kw | 22kw |
ML90 | | | | ML90-90 | | | | |
ML100 | 100mm | 250-300kg/h | 75/90kw | ML100-100 | 28-10 | 250-300kg/h | 75/90kw | 37kw |
ML110 | | | | ML110-110 | | | | |
ML120 | | | | ML120-120 | | | | |
ML130 | 130mm | 450-500kg/h | 110/132kw | ML130-130 | 28-10 | 450-500kg/h | 110/132kw | 55kw |
ML140 | | | | ML140-140 | | | | |
ML150 | | | | ML150-150 | | | | |
ML160 | 160mm | 550-650kg/h | 160kw | ML160-160 | 28-10 | 550-650kg/h | 160kw | 75kw |
ML170 | | | | ML170-170 | | | | |
ML180 | 180mm | 800-1000kg/h | 185/200kw | ML180-180 | 28-10 | 800-1000kg/h | 185/200kw | 90kw |
- Product Information -

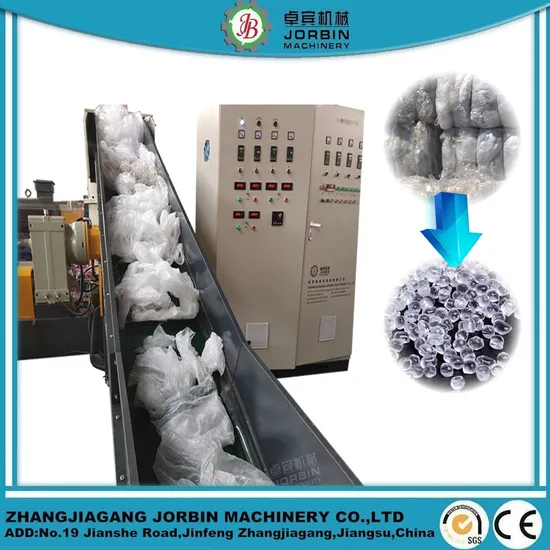

1,Convey belt:
Function:Feeding the materials into compactor;
Features:Speed possible controlled by inverter;
The material of convey belt is SS304;
2,Compactor:
Function:After platicizing,feed the material into the extruder equally.
Features:There is sight glass on the compactor,so that the material can be seen how much is in the compactor;
The material of compactor is SS304;
3,Extruder:(This machine uses single screw double stage;)
Function:Material come from the first stage into the second stage through the die, extruding, plasticizing, and heating different materials in order to make the materials come out of the mold more stable, which can determine the production capacity of the entire machine;
Gear box:high torque,low noise,external connect with cooling recycling system;
Hard teeth face reducer;
The advantages of twin stage machine:
1. two screen changers can filter more impurity, the pressure can be reduced;
2. the capacity can be improved;
3. Material come out from the die will be much more stable, won't be broken down;
4,Hydraulic screen changer system
Function: filter imputies;
Features:Double positions hydraulic screen changing system, screen net 200mm;
No material leaking;
5,Water-ring rubs surface hot cutting system
Function: Cutting Particles;
Features:Speed controlling by frequency conversion;
Quenching and tempering treatment;
Water ring cover, pipe material: stainless steel;
Containing:hot cutting die head,diffluence strick,water-ring cover,knife rest,cutterhead,toolbar,ect;
6,Various auxiliary machines
Function:Cool down and spin-dry the pellets,then load the dried pellets into the silo.
Features:
Chute:bracket jointing by Q235,the others are stainless steel;
Centrifugal Dewatering:With the under water drainage function;
Helix screw, shaking screen, dewatering frame where meet;
Wind transmission system:pipe line,tee joint T,silo are made by stainless steel;the bracket is made of carbon steel;
Slio:Material is stainless steel and Bracket is Steel;
Electric control box:
RKC Temperature controlling system and inverter control the belt conveyer, the speed of main machine and pelletizing system;
Display and protect the pressure of machine head;
SCHNEIDER Contractor, DELIXI low pressure electric equipment,pressure sensor,etc;
American CRYDOM solid-state relay;
Supply the line which connect the main machine and cabinet;
-Our Company-
We are professional manufacturer.We have made the extruder machine with 15 years of strong experience.
Our Company is special in producting plastic recycling granulating machine and extrusion machine etc.In the field of plastic recycling, Jorbin Machinery can provide you with a series of high-quality recycling production lines for recycling various plastics.
At present,some of our products are in the factory,you are welcome to visit our factory anytime!
Our machine have been sold to all of the world like Russia, Poland, Dubai, Malysia, Taland, India, Mexico, Ecuador and so on.
Welcome to receive your inquiry!
We supply below necessary documents with the machine:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book
>>
