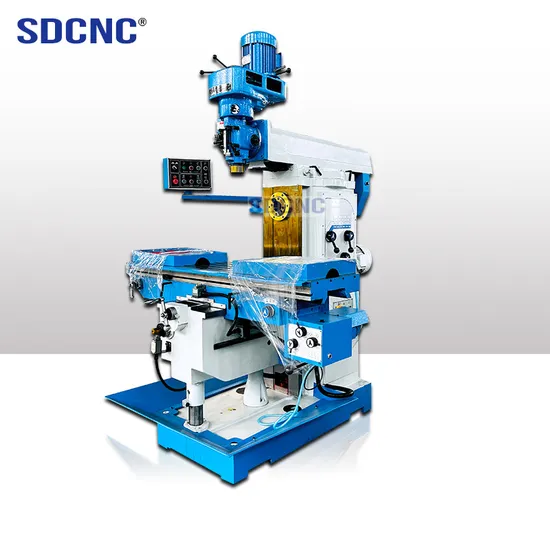

X6336 CNC Milling Universal Horizontal Cutter Manual Vertical Gantry Turret Milling Machine

US$6,500.00-6,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6336
Type
Knee-and-Column Milling Machine
Object
Gear
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1500*360mm
Table Travel
1000/320/450mm
Spindle Taper
ISO40(V) ISO50(H)
Spindle Travel
127mm
Transport Package
Wood Packaging
Specification
2600*2200*2550
Trademark
SDCNC
Origin
Shandong China

Packaging & Delivery

Package Size
220.00cm * 260.00cm * 255.00cm
Package Gross Weight
2400.000kg

Product Description


Detailed Photos

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's
Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign
trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining
center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling
machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine
series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed
and other machine tools.
Product Parameters
Specifications Units X6336
Table size mm 1500×360
Table travel mm 1000/320/450
T slot(number-width-pitch) mm 3-18-80
Spindle taper ISO40 7:24 (V)
ISO50 7:24 (H)
Spindle speed range rpm (V) 50HZ:65-4500 ,
60HZ:80-5440,16 steps;
Optional:variable 65-4000
(H) 60-1800,12 steps
Spindle travel mm 127
Spindle feed range mm 0.04,0.08,0.15
(3 steps)
Distance between spindle nose and table surface mm 140-590
Distance between spindle axis and table surface mm 0-450
Main motor power kw 3.7(V);
4(H)
Head rotation (left - right ) ° ±90°
Head rotation (front - rear) ° ±45°
Weight kg 2400
Overall dimension mm 2600×2200×2550

The main performance characteristics:
X, Y, Z axis super audio hardened guide rail and high precision grinding
Manual lubricating device can be used to lubricate the lead screw and guide rail.
Special accessories: vertical milling head, it can achieve the function of vertical milling.
Product main technical parameters:
