22 Tons Small Digger Machine Crawler Excavator for Earth-Moving

US$65,400.00
1-2 Unit
US$64,400.00
3-4 Unit
US$63,400.00
5+ Unit

Basic Info.

Model NO.
22 tons
Type
Crawler Excavator
Usage
Special Excavator, Mining Excavator, GM Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Max.Digging Height
10000mm
Max.Dumping Height
7110mm
Max.Digging Depth
6620mm
Max.Vertical Wall Digging Depth
5980mm
Max.Digging Reach
9875mm
Min.Swing Radiusmm
3040mm
Max.Height at Min.Swing Radius
8060mm
Transport Package
Nude Packing
Specification
9425*2980*2970mm
Trademark
Jiubang
Origin
China
Production Capacity
6000units/Year

Product Description

Jiubang 22 Tons Small Digger Machine Crawler Excavator for Earth-Moving Product Description
Machine Weight (kg) 22300
Bucket capacity (m ³) 1.0-1.2
Rated Power (KW/rpm) 124/2050
Travel speed(H/L) (km/h) 5.5/3.3
Swing speed (rpm) 11.0
Gradeability (35°) 70%
Ground pressure (kpa) 48.6
Bucket digging force (KN) 150
Arm digging force (KN) 109

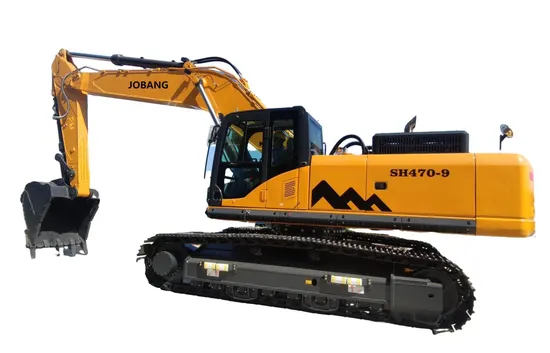

Product Show
Company Profile

Jiubang Heavy Industry, located in Jining, Shandong, China, is a well-known enterprise in the heavy machinery manufacturing industry and a national high-tech enterprise. The company started in 2010. The new factory covers an area of more than 60,000 square meters, with 370 employees and more than 350 after-sales outlets. An enterprise integrating industry and trade, focusing on the research and development, design, production and sales of aerial work vehicles, suspension cranes, folding arm cranes, spider crawler cranes, forklift trucks, new energy engineering vehicles, laser screed machines and other products. With laser cutting machines, bending machines, fully automatic digital processing equipment, and a number of technical patents, it provides better products and services for global customers. The products are exported to more than 20 countries and regions including Russia, Southeast Asia, Kazakhstan, the Middle East, and Africa. We sincerely invite businessmen from all over the world to develop together.
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Can you meet my special requirements?
A: Yes, we accept customization.
3: What about the delivery time?
A: Generally, it will take 3 days after payment arrived.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
