CNC Busbar Cutting Punching Bending Machine 3in1-CNC Copper Processing for Copper

US$7,000.00 1 Set (MOQ)

Basic Info.

Model NO.
GY-CNC B001
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools, Bending Machine Tools, Punching Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Punching Power
From 50kn to 90 Kn
Voltage
220V/380V/415V/440V
Using Area
Copper
Transport Package
Wooden Case
Specification
Different models
Trademark
GEYIN
Origin
Made in China

Packaging & Delivery

Package Size
2200.00cm * 1600.00cm * 1500.00cm
Package Gross Weight
2200.000kg

Product Description

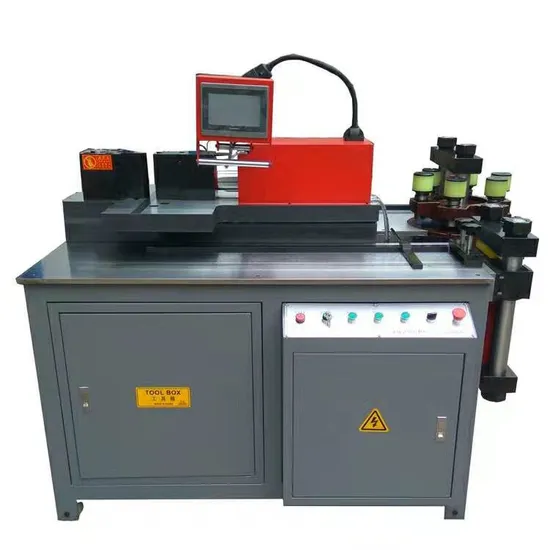

CNC busbar processing machine
A.Product Introduction
This machine is equipped with three processing stations: punching, cutting, and bending. It is controlled by Siemens PLC in Germany and its main function is to process copper and aluminum busbars of different specifications. When working, it is only necessary to select the corresponding processing station to cut and punch (round hole, oblong hole), bend horizontally, bend vertically, U-bend, emboss, flatten, twist Fried Dough Twists, press cable joints and other different processes conveniently and quickly. The cutting, punching, and bending stations use 45 # forging material II Main features:
1. The shear station adopts a double column shear structure, with a flat cross-section, no waste, burrs, or collapse angles.
2. The punching station is a six position rotary table, made of ductile iron material technology, without the need for mold replacement, reducing misoperation caused by frequent mold replacement and reducing the rate of mold damage. The turntable is an integral machined part, ensuring absolute alignment between the upper and lower molds, improving the concentricity of the mold, and greatly improving its service life.
3. The bending station adopts a closed bending structure, making it more uniform when processing flat bending and embossing. Greatly improves the accuracy of repeated positioning during batch production.
4. The bending station adopts a double-layer workbench, achieving a true sense of simultaneous operation of three stations without affecting each other.
5. It adopts German Siemens PLC control, bending angle CNC control, and has storage and memory function. Each workstation can be set with automatic shutdown time, saving a lot of electricity expenses for enterprises. The system comes with fine-tuning function, making it more convenient to use.
6. The hydraulic oil tank is welded with 3mm thick steel plates and has undergone phosphating treatment to ensure that the hydraulic oil will not deteriorate after long-term use.
B.Parameter list
Name unit ZMX30-3BK ZMX50-3BK ZMX80-3BK

Punching
Max(KN) 350KN 550KN 850KN
Punching range(mm) ф4.3~ф34 ф4.3~ф34 ф4.3~ф36
Max thick(mm) 15mm 18mm 20mm
Max width(mm) 160mm 260mm 300mm
Cutting Max thick(mm) 12mm 18mm 20mm
Max width(mm) 160mm 260mm 300mm

Bending
Max bend 350KN 550KN 850KN
Max thick(mm) 15mm 18mm 20mm
Max width(mm) 160mm 260mm 300mm
Vertical Bending Max bend width 100mm 120mm 150mm
Min bend angle 90° 90° 90°
Out size MM 1750×1350×1500 1920mm×1550×1500 1950×1700×1500
Working table 1st layer size(mm) 1500mm×1300mm 1600mm×1400mm 1950×1700mm
2ND layer size(mm) 940mm×420mm 1020mm×500mm 1100×500mm
Motor kw 3×4KW 3×5.5KW 3×7.5KW
Weight KG 1370KG 2050KG 2500KG
Voltage V/hz 380V/50HZ 380V/50HZ 380V/50HZ
CNC spec. Bending angle CNC German Siemens (Panasonic) PLC control direct input angle, accuracy ± 1 °
Cut, fold, and can work simultaneously. You can also input the height and side length to directly process the required workpiece (Z-bend). 2022 Technical Improvement Three Station Fully CNC Bus Processing Machine (to be customized)

1.Oil pump: Taiwan 2.Overflow valve YUYAAN
3.Relay: Schneider 4.Contactor: Schneider
5. Button switch: Schneider 6.Motor: juli
7.Touch screen: Taiwan Xinjie 8.Encoder: Guangyu
7.PLC Encoder: Siemens, Germany (Panasonic, Japan)
