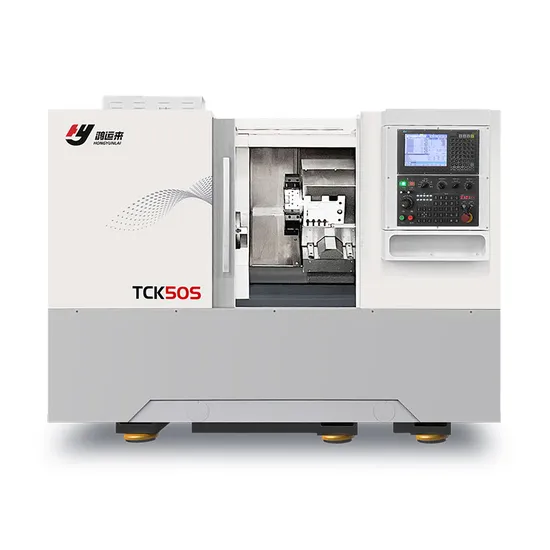

High Quality CNC Flat Bed Lathe Tck50s for Metal Cutting CNC Machine Tools

US$15,337.00
1-4 Pieces
US$13,420.00
5+ Pieces

Basic Info.

Model NO.
TCK50S
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
ISO 9001
Condition
New
Application Type
Metal-Cutting
Applicable Countries
All Countries
Machining Accuracy
It6
Repeatability
0.003mm
Transport Package
Container
Specification
2300× 1700× 1930
Trademark
hong yun lai
Origin
China
HS Code
8458110090

Product Description

High Quality CNC flat Bed Lathe TCK50S for Metal Cutting Cnc Machine Tools
Product Description

1. HT300 one-piece casting bed, with high tensile and shock resistance.
2. Compact structure design, small footprint, saving land cost.
3. Larger chip diameter, can achieve 500mm cutting outer diameter.
4. Adopt 12-station 125mm center height large turret, turret span is larger, single tool 12mm cutting.
5. The lathe is small, single structure is compact, the overall weight reaches 4 tons, and the cutting is more stable.
Product Parameters
item Units Specifications Remarks
Maximum rotation diameter on the bed mm 560
Maximum cutting length mm 550
Maximum cutting diameter mm 500 12 stations (diameter of the opposite side of the cutter head is 400, the center height of the turret is 100)
Maximum turning diameter on the slide mm 400
Spindle end type and code A2-6
Spindle hole diameter mm 65
Maximum passing bar diameter mm 50
Single spindle Headstock Spindle speed range/spindle maximum output torque r/min/Nm 50-4500/136
Main motor
Output Power
power kW 11/15
Standard chuck Chuck diameter inch 8″(optional 10″)
X-axis fast moving speed m/min 15
Z-axis fast moving speed m/min 15
X-axis travel mm 280
Z-axis travel mm 670
Standard tool holder Horizontal 12-station servo turret
Tailstock travel mm 600
Tailstock spindle taper Mohs 5#
Tool size External circular knife mm 25×25
Boring bar diameter mm φ32/φ25/φ20
End tool holder mm 25×25
Can I choose the knife nearby Can
Machine gross weight Total weight kg
weight capacity Disk Parts kg 200 (including chuck and other machine tool accessories)
Shaft parts kg 500 (including chuck and other machine tool accessories)
Machine tool dimensions (length × width × height) mm 3240×1940×1965 Without chip conveyor

Machine structure
1.Integrated casting bed body, resistant to tension and earthquake resistance.
2.30 ° inclined bed for more convenient chip removal.

Servo Turret
1. Standard: Horizontal 12''inch servo turret
2. Optional: Live turret
Hydraulic chuck
1.Standard: 10'' inch hydraulic chuck
2. Optional: 12'' inch
Hard rail tailstock
1. High stability,
2. Strong rigidity
3. Helps improve processing accuracy
4. Increase load capacity
5. Long service life
Company Profile

Certifications

Packaging & Shipping

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems.
