US$5,750.00-10,550.00
|
1 Set
(MOQ)
|
Basic Info.
Computerized
Non-Computerized
Certification
ISO9001:2008, CE
Transport Package
Wooden Package
Production Capacity
50sets/Month
Product Description
Product Description

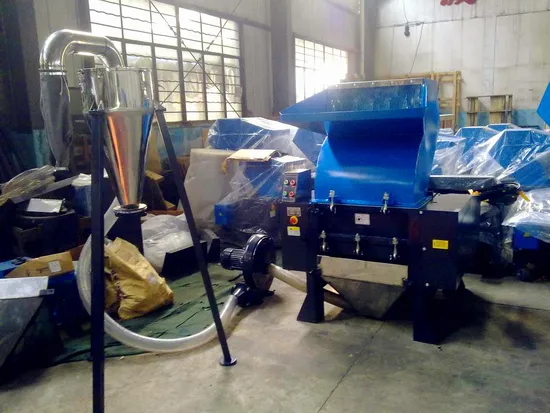

Standard blade bed is suitable to crush normal board marterial; Tube material; Form marterial and plastic material such as packaging box and wrapping.
The knife tool is refined with imported special tool-steel, the clearance between Knife tools are adjustable, when it becomes blunt by using, it can be dismounted Repeatedly, it is durable.
Use high-intensity steel screws to fasten the knife leaf and knife seat, having strong Bearing capacity.
All walls of crushing chamber are treated by sound-proof, so having extra-low noise.
A discount-type designed, the bunker, main body, screen can be dismounted for cleaning Easily.
The electric motor has over-loading protection with power source interlock protection Device. Double-safety protection for operators and electric motor.
Step-type motion knife design with strong breaking capacity.
Model | XFS-800 | XFS-1000 | XFS-1200 |
Power(kw) | 22 | 30 | 45 |
Quantity of rotating blades | 24 | 30 | 36 |
Quantity of fixed blades | 4 | 4 | 4 |
Screen size(mm) | Φ 12 | Φ 14 | Φ 14 |
Weight(kg) | 1880 | 2220 | 3300 |
Max. breaking capacity (kg/hr) | 700-900 | 800-1000 | 1000-1600 |
Size of feeding inlet(mm) | 800× 400 | 1000× 400 | 1200× 400 |
External size(mm) | 2000×1400 × 2100 | 2000× 1600 × 2100 | 2340× 2020 × 2100 |
Hot Product
Company Profile
Packaging & Shipping
FAQ
Q: About your factory ?
A: Our engineers have 20 years of industry experience , committed to injection molding peripheral and refrigeration industry automatic integration of Equipment Research and development .
Q: About the product information and whether to support OEM ?
A:We accept OEM of this series of products , please contact me for more product data .
Q: About the warranty on the product ?
A: Our professional engineers communicate with video and offer an one-year warranty (due to product quality issues) .
Q: About time of delivery and mode of delivery ?
A: Delivery Period 10-20 days , support factory delivery and FOB .
Q: About the terms of payment ?
A:Delivery by 100% payment before departure , T / T , L / C , Western Union and other international payment methods .
>>
