Hbt40r Diesel Engine Stationary Concrete Pump

US$24,500.00
1-2 set
US$24,000.00
3-4 set
US$23,500.00
5+ set

Basic Info.

Model NO.
HBT40, HBT40R
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
50m²/h
Feeding Height
1400mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Power Type
Diesel Engine, 85kw
Theoretical Concrete Output
28/40 M³/H
Concrete Outlet Pressure
7/13 MPa
Concrete Slump
120-230 mm
Max. Aggregate Size
Pebble≤40 mm, Gravel≤30 mm
Distribution Valve
S Tube Valve
Delivery Steel Pipe Diameter
125mm or 150mm
Speed
2300 R/Min
Concrete Cylinder Diameter * Stroke
D100*1200 mm
Conveying Cylinder Diameter * Stroke
D180*1200 mm
Oil Tank Capacity
250 L
Hopper Capacity
0.8 M³
Maximum Conveying Distance (Horizontal
300/100m
Pipe Cleaning Mode
High Pressure Water Washing
Overall Dimension
5000×2000×2200 mm
Transport Package
Nude Package and Packaged in Container
Specification
HBT40, HBT40R
Trademark
RUNSUN
Origin
Hebei
HS Code
8413400000
Production Capacity
150 Sets/Month

Product Description

Technical Parameters
Model HBT40 HBT40R
Max Theoretical Concrete Output
(Low/High pressure) (m³/h)
28/40 28/40
Max Concrete Pumping Pressure
(Low/High pressure) (Mpa)
7/13 7/13
Concrete Slump 120-230 120-230
Aggregate Size (mm) pebble≤40 gravel≤30
Power (KW) Electric motor 55 Diesel Engine 85
Speed (r/min) 1480 2300
Conveying Cylinder Diameter (mm) Ø 100/1000 Ø 100/1200
Concrete Cylinder Diameter (mm) Ø 180/1200 Ø 180/1200
Hydraulic Oil Tank Capacity (L) 250 250
Hopper Capacity (m³) 0.8 0.8
Fuel Tank Capacity (L) 150
Filling Height (mm) 1400 1400
Maximum Conveying Distance
(Horizontal Distance/Vertical Height) (m)
200/80 300/100
Pipe Cleaning Mode High Pressure Water Washing
Overall Dimension (mm) 5000×2000×2200 5500×1800×2100
Total Weight (kg) 4300 4200

Main Components' Brand or Manufacturer:
HBT40 CONCRETE PUMP (Electric Motor)
Item Brand or Manufacturer Place of Origin
Electric Motor Jiangsu lideer China
Main Oil Pump KAWASAKI140 Korea
PLC Mitsubishi Japan
Oil Cylinder Hunan XIELI China
Concrete Cylinder Wuxi Shuangyu China
Hydraulic hose Manuli Italy
Main Valve BolSeen Germany
Hydraulic oil - HML-46 Beijing CHANGCHENG China
S Valve RUNSUN China
Glass Plate & Cutting Ring Zhuzhou ZHENXIANG China

HBT40R CONCRETE PUMP (Diesel Engine)
Item Brand or Manufacturer Place of Origin
Diesel Engine Yuchai China
Main Oil Pump KAWASAKI140 Korea
PLC Mitsubishi Japan
Oil Cylinder Hunan XIELI China
Concrete Cylinder Wuxi Shuangyu China
Hydraulic hose Manuli Italy
Main Valve BolSeen Germany
Hydraulic oil - HML-46 Beijing CHANGCHENG China
S Valve RUNSUN China
Glass Plate & Cutting Ring Zhuzhou ZHENXIANG China

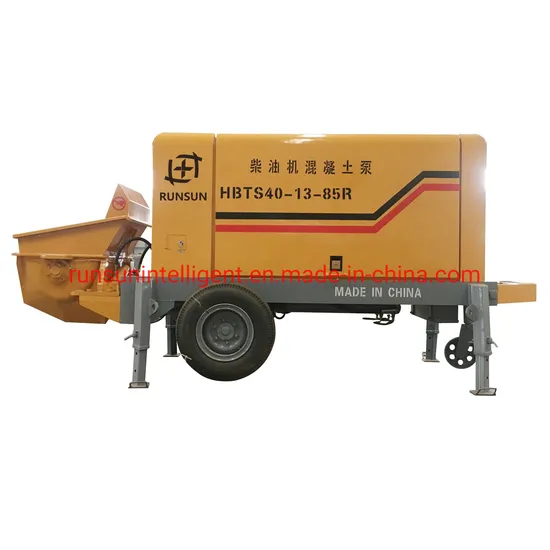

HBT40R Diesel Engine Stationary Concrete Pump
Runsun Intelligent Technology Co.,ltd is a specialized manufacturer of various mortar and concrete machine. such as mortar mixer, concrete mixer, mortar grout pump, mortar spraying machine, concrete pump, fine stone shotcrete pump, concrete mixer pump and so on. We have more than 30 years' experience in designing and manufacturing mortar and concrete machine. Our machine exported more than 300 sets different types of the concrete pump (Driven by Diesel Engine and Electric Motor, Discharging Volume from 12 m3/h to 90 m3/h) to over 72 countries. Our main customers are from Australia, Colombia, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc. Widely used in used in high-rise building, high-speed railway, bridges, tunnels and so on.
Technical Advantages
1) High quality concrete pump trailer equipped with high efficiency concrete pumping system.
2) Hydraulic double-cylinder piston system, more stable flow, more uniform and stable spraying.
3)Dual-piston alternately working, manual and automatic hydraulic synchronous lubrication system, longer mortar piston life.
4) Advanced hydraulic system.

5) Further optimized pumping flow path to reduce the pumping resistance and the probability of tube block. Mortar stop pressure relief valve, pumping cleaning ball washing, more secure and faster cleaning operation.
Working Applications Fields:
