US$2,000.00-80,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
2200mm Cut to Length Line
Silicon Steel
Silicon Steel Cut to Length Line
Refurbishment
Refurbishment Machinery
Maintenance
Maintenance Machinery
Used
Used Cut to Lenght Linee
Second Hand
Second Hand Made in China Machinery
Transport Package
Wooden Package
Specification
80 * 6 meters, 100 tons
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
100.000kg
Product Description
Product Description Basic Info.
Model NO. | 2200mm Used Cut to length Line | Application | Industry |
Type | Cut to length Line | Product Name | China Factory Price Cut to length Line |
Usage | Stainless steel, Plain carbon steel,silicon steel | Total weight of equipment | About 155 ton |
Coil width | Max2200 mm | Coil thickness | 3-14 mm |
Coil Weight | 32 ton | Eqipment status | Refurbishment and maintenance |
Origin | China | Export Port | Jiujiang |
Characteristic | with cutting edgy | Machine Color | Green |
HS Code | 8462329000 | Production Capacity | |

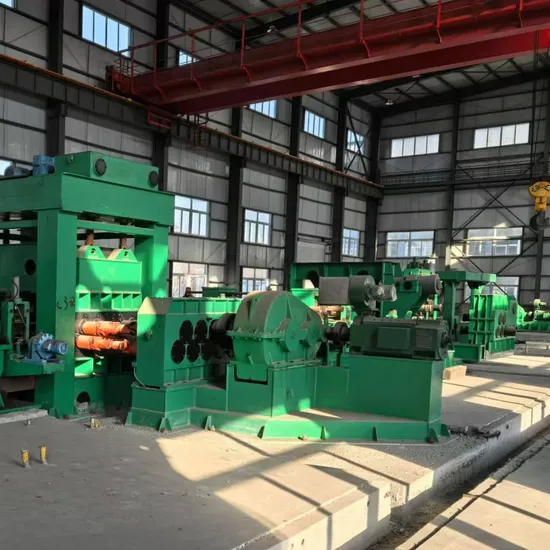

Cut to length line series
A cut to length line is a comprehensive system designed to uncoil, straighten, measure, cross-cut to the desired length, and stack various materials. This versatile machine expertly handles cold or hot rolling carbon steel, tinplate, stainless steel, and various other metals with coated surfaces, ensuring they meet precise specifications.
Configuration |
No. | Item | Detailed introduction | Quantity |
1 | Uncoiler | Double cone Uncoiler | 1 |
2 | seeker | Gantry straight head seeker | 1 |
3 | Feeding device | 2+2 roller feeding | 1 |
4 | blade shaft | Φ320 diameter cut to length blade shaft | 1 |
5 | motor | 132kw | 1 |
6 | leveler | 11roller fine leveler | 1 |
7 | roller diameter | 250mm | 1 |
8 | motor | 200kw | 1 |
9 | steel plate Shear machine | 25*2500 Hydraulic shear machine(hydraulic system) | 1 |
10 | run out table | 8m Gantry run out table | 1 |
11 | Hydraulic System | | 1 |
12 | Electrical system | | 1 |
Features of Cut to Length Line:
1. Our cut to length line is powered by a state-of-the-art roll feeding mechanism, driven by an AC servo for optimal precision.
2. It boasts a fully digital length control system, ensuring rapid positioning with minimal margin for error, providing unparalleled accuracy.
3. Built for durability, it features a hard chrome-plated surface that resists wear and abrasion, promising long-lasting performance.
4. For swift and efficient shearing, it integrates seamlessly with a hydraulic or air-clutch shear, offering effortless clearance adjustments.
5. This system excels at processing hot rolling carbon steel, tinplate, stainless steel, and metals with a protective coating, across a wide range of applications.
Advantage:
1. Enjoy a high degree of automation for effortless, reliable operation, streamlining your production process.
2. Achieve remarkable length precision and impeccable sheet flatness, ensuring superior quality.
3. Experience optimal order stacking for organized and efficient production flow.
Uncoiling Unit
The uncoiling unit in our cut to length line is engineered to accommodate multiple coil stocks on its loading station. Flexibility is key, with options for single or double heads to cater to specific needs.
Leveler
Our cut to length line's leveler is versatile, offering designs ranging from 2H to 6H, with flexible controls for superior plate leveling. Featuring roll steel with a chromed surface, it promises excellent wear resistance and an extended lifespan.
Feeder and Shear
This system employs one or two pairs of feed rolls, precisely guided by an AC servo motor, to deliver strips to exact lengths. These rolls efficiently pair with hydraulic or air-clutch shears for rapid shearing, while allowing easy clearance adjustments. Options for a roll or belt-type conveyor add to its versatility.
Stacking Unit
Our cut to length line can feature a pneumatic or electromagnetic stacking unit, capable of both longitudinal and transverse stacking, catering to diverse stacking needs efficiently.
Our products find extensive application across industries such as transformers, motors, household appliances, automobiles, hardware, and steel sectors. They adeptly process a variety of metals, including cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper, ensuring versatility and reliability in meeting diverse industrial demands.
Company Profile
Foshan Shunde Jinyujie mechanical and Electrical Equipment Co., Ltd. (hereinafter referred to as Jinyujie Mechanical and Electrical Equipment Co., Ltd.): Established in 2001, Jinyujie Mechanical and Electrical Equipment Co., Ltd. has been a trailblazer in the acquisition and transfer of second-hand welded pipe units, offering a complete suite of services including installation, commissioning, maintenance, customization, and more. With an unwavering dedication to the high-frequency welded pipe industry, our company boasts an impressive 30 years of industry-focused expertise and 17 years of exceptional high-frequency manufacturing and service experience. Over these years, we have empowered more than 2000 enterprises with top-tier products and comprehensive one-stop service support, becoming a trusted partner for second-hand welded pipe production equipment and accessories, leveraging our talent and technological prowess.
We possess an abundant inventory of authentic second-hand sources, skillfully integrating complete second-hand welded pipe production lines. Our installation and commissioning services are available both domestically and internationally, ensuring the swift production of high-quality steel pipes. By fostering long-term collaborations with numerous welded pipe equipment manufacturers, we maintain a comprehensive stock of spare parts. Anchored by our development philosophy of 'honesty, pragmatism, and creating value for customers,' we are steadfastly committed to delivering valuable services that amplify customer success.
Packing and Shipment
Our customer and partner
After Sales Service
The Sample Service
1. We can provide you with a detailed video showcasing the seamless operation of our machine.
2. You are cordially invited to visit our state-of-the-art factory and witness the machine in action.
Customized Service
1. We can tailor the machines to your precise specifications, while offering our expert recommendations. With years of industry experience, we ensure you receive the best possible solution.
After-Sales Service
1. We promise prompt delivery of your machine along with all essential documentation, ensuring swift receipt and setup.
2. We regularly seek your valuable feedback and extend our support long after the machine is operational in your facility.
3. Enjoy a 12-month warranty coupled with lifelong technical support to keep your operations running smoothly.
4. Our proficient and seasoned team is ready to address all your inquiries in both English and Chinese.
5. Engineers are available around the clock to respond to your needs swiftly and efficiently.
6. We guarantee total confidentiality for your business relationship with us, safeguarding your interests.
7. We are committed to providing exceptional after-sale service. Contact us with any questions you may have.
Quality Control
Our skilled engineers rigorously test the machine to guarantee its flawless performance and reliability.
>>
