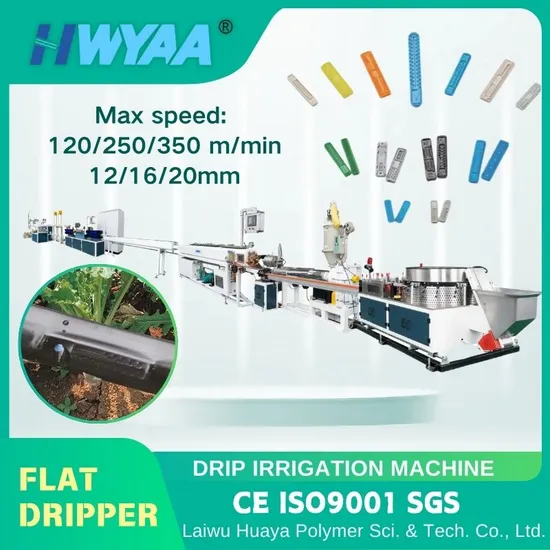

Hwyaa Hot Selling Flat Emitter Drip Irrigation Tape/Pipe Making Machine for Agriculture Farm 16mm Tape

Product Description

Product Description
The flat drip irrigation belt is a drip or drip irrigation belt that enters through a very small outflow orifice, evenly and slowly dropping water drop by drop into the soil near the root of the crop. The patch drip irrigation belt belongs to the whole pipeline water conveyance and local micro irrigation. The patch drip irrigation belt reduces the leakage and loss of water to a minimum. At the same time, due to the timely supply of water required by the crop root zone, there is no problem of peripheral water loss, and the utilization efficiency of water is greatly improved.

No	Items	Specifications
1	Tape Diameter	Φ16mm
2	Tape Wall Thickness	0.15-0.3mm
3	Single Screw Extruder	SJ-75/36
4	Design production Speed	300m/min (300mm spacing distance)
5	Central Line Height	1000mm
6	Dripper Identifying Speed	3000 pcs/min
7	Dripper Spacing	100mm-1000mm
8	Punching Speed	2000 pcs/min
9	Punching Method	Mechanical puching
10	Number Of Punching Sets	4sets
11	Tape Roll Length	500m-2500m
12	Total Installed Power	85 Kw
13	Max Extruding Capacity	160Kg
14	Size of the Line (L×W×H)	25m*2.2m*3m
15	Total Line Weight	About 6000kg

Detailed Photos
Flat Emitter Conveyor

Items	Specification
Dripper identify	Photoelectric probe
Spacing Set Range	100mm-1000mm
Feeding device motor	0.55kw
Dripper select motor	1.5kw Frequency Control
Transport motor	0.75Kw servo motor Siemens
Dripper transport speed	2500 pcs/min

Extruder and Pipe Extruding Nose

Item	Sub-item	Specification
Screw	Diameter	75mm
	L/D Ratio	36/1
	Revolving Speed	93r/min
	Material	38CrMoAlA
	Brand	FIVE STAR
	Surface Hardness	700-940Hv
Barrel	Heating Zones for Barrel	4 heating zones
	Material	38CrMoAla
	Brand	FIVE STAR
	Surface Hardness	940Hv
Gear Box	Material	20CrMnTi
	Processing Technique	Forging,carburizing,quenching,gear grinding
	Surface Hardness	HRC58-62
Power	Power of Main Motor	45Kw
	Heating Power for Barrel	20Kw
	Power for Cooling Fan	4x0.24Kw
Capacity	Extruder Output	160Kg/h
Feeding machine	Vacuum feeding machine	300Kg/h
	Drying hopper	4.8kw
Filter change	Hydraulic filter	Hydraulic filter
Co-extruder Die Head	Material for Die Head	40Cr
	Structure of Die Head	right-angle
	Diameter of Die Head	250mm
	Heater for Die Head	1650w

Vacuum Calibrator

Items	Specifications
Size of Tank	4000mm
Material for Sizing Adjustment	copper alloy
Sizing Method	vacuum
Tank Movement Method	Manual
Dripper Sticking	Rubber wheel pressure
Drive motor	400w servo motor Siemens
Vacuum pump	1.5kw
Water pump	0.75kw
shaping box material	Stainless steel

Water Cooling Tank

Item	Specification
Tank Material	Stainless steel
Tank Size	3000mm
Cooling Method	Water immersion
Water removal device	High pressure air drying
Water pump	0.75kw

Haul-off Unit

Items	Specification
Max. Traction speed	300m/min
Drive Motor Power	2.5Kw servo motor siemens
Haul-off Roller Pattern	Roller

Punching Device

Items	Specification
Punch way	Mechanical track punching
speed	2500 pcs
triggered	the wheeled trigger
Punch space	100-1000mm
Punch motor	1.0w servo motor Siemens
Control method	PLC Siemens

Double station automatic winder

Items	Specification
Winder Style	Double station automatic winding
Winding speed	300m/min
Drive Motor Power	2X1.5Kw Frequency Control
Roll Change method	Automatic roll change
Roll-changing motor	0.75Kw
Cable way	Ball screw line,
Cable motor	400w servo motor Siemens
Tension control	Automatic control of tension
Meter	Electronic meter, automatic fixed-length roll cut off
Control method	PLC Siemens

Application
Certifications
Packaging & Shipping
Company Profile
Laiwu Huaya Polymer Sci.& Tech. Co., Ltd.is located in the Laiwu High-Tech Development Zone in Jinan, Shandong Province. The proximity of our new factory to the Laiwu East Expressway exit of the Beijing-Shanghai Expressway facilitates transportation. The Company covers an area of more than 18,000 square meters, and has a young and professional R&D service team, including one doctor degree holder, three master degree holders and senior engineers. Higher educated talents account for forty percent of the company's whole staff.
Since its founding more than a decade ago, Huaya has been cultivating the international market based on the domestic market. We are primarily involved in the manufacturing of plastic pipe equipment, profile equipment, high-end packaging film blowing machines, and recycling granulation equipment. Particularly, we have made significant strides in the production of ultra-high molecular weight polyethylene wear-resistant pipe equipment, profile equipment, water-saving irrigation pipe equipment, and high-end packaging film equipment, with nearly 30 technical achievements that have been granted national technical patents.
Through long-term collaboration with the Shanghai Branch of the Chinese Academy of Sciences, the Shanghai Research Institute of Chemical Industry, and other institutions, we have always been a top dog in our neck of the technological research and development. Our products are exported to a variety of countries and regions, including the Middle East, South America, Africa, and Southeast Asia, and have received universal client appreciation. To race ahead of rivals in product competitiveness, we are devoted to establishing warehouses abroad.
With the mission of "market-oriented and client-centered", we consistently pursue perfection and excellence to provide products of the highest quality. For that purpose, every Huaya member will surge ahead with enterprise and fortitude.
Our Advantages
FAQ
1) Do we manufacture or trade with a company? We are a manufacturer with 24 years of experience in this field. 2) What machines do we produce? Our factory produces machines for the production of plastic pipes, machines for plastic recycling. 3) What payment methods do we accept? Payment terms such as T/T, L/C.44) how long do we need to produce machines? According to different machine models and configurations, we need different times, for example from 40 days to 2 months. 5) Will the car be delivered on time? Of course, we will deliver your car to get the payment balance. 6) What about the quality of the machine? The quality of our machine is reliable. We strictly select all the parts on the machine, and the production and installation are carried out by professional workers. We check every step of the production for the best machine. 7) What about the price? You know, the goods are calculated by the price. We choose the best machine raw materials such as Siemens Electrics, Schneidr and ABB etc. We will provide you the best machine at the best price. 8) How long does your machine guarantee the time? One year9) What can you provide for after-sales service? We can send engineers to your factory for installation and training. Also 24 hours online you were satisfied with the service.

---
