US$305.00
|
100 Pieces
(MOQ)
|
Basic Info.
Frequency Characteristics
Intermediate Frequency
Frequency
Intermediate Frequency
Power Source
Switching Regulated Power Supply
Application Range
Industrial and Mining Enterprises
Cetificate
CE, Soncap, ISO:9001...
Popular Market
Russia, Parkistan, Afganistan
Input Voltage
150-260V /120-240V/100-240V
Package in One Carton
1PCS
Protection
Overpressure/Over Load/Over Temperature
Waveform Distortion
No Additional Wave Form Distortion
Transport Package
to Be Packed in Standard Exporting Carton
Specification
CE, ISO: 9001, SONCAP
Origin
Wenzhou, Zhejiang, China
Production Capacity
40000PCS/Month
Product Description
Our Advantages
I. Advantages of our products
1. High technology: programmed control computerized
2.Unique design: LED display which can show all protection functions.
3.Quality ensurance: every spareparts is made by ourself,for example,transforma,PCB.
4.Perfect protection function:over/low voltage protection,over-heat,over-load protection
5.High efficiency:more than 90%
6.experienced manufactory: more than 20 years
Product Parameters Feature:

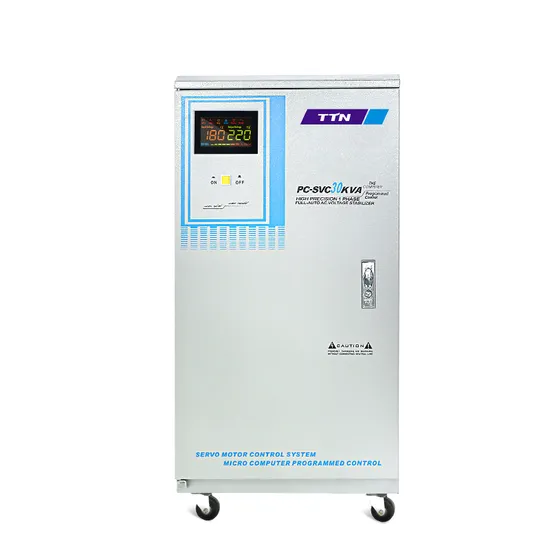

Model: PC-SVS Series Servo Control single phase
Capacity: 10KVA~30KVA
Input voltage: AC150V~260V or customize
Output voltage: 220V+/-3%
Remark: pls kindly check the detail information in following chart
| Model | PC-SVC10000VA | PC-SVC15000A | PC-SVC20000VA | PC-SVC30000VA |
| Technology | Servo Motor Control Control System+Micro Computer Programmed Control |
| Led Display | Info | Input voltage/output voltage/Load Usage/Time Delay/Normal Working/Protection | | |
| Protection | Over voltage | output voltage>=243±4v |
| Low voltage | output voltage<=188±4v |
| Over loading | More than 120% |
| Over temperature | 120°±10% |
| Delay time | Short Time (5 seconds) |
| Circuit beaker | Regulator/bypass |
| Language | English/Russian/Chinese |
| Input Voltage | AC150-260V/120-240V/100-240V |
| Output Voltage | 220V±3% |
| Frequency | 50/60 HZ |
| Phase | Single Phase |
| Efficiency | >=90% |
| Ambient Temperature | -15°-45° |
| Relative Humidity | <95% |
| Waveform Distortion | no additional wave form distortion |
| Insulating Resistance | normal more than 2MΩ |
| Specification |
| Power | 10000va | 15000va | 20000va | 30000va |
| Package Size(cm) | 43.0*45.0*72.0 | 42.0*47.5*83.5 | 42.0*47.5*83.5 | 50.5*50.0*85.0 |
| Package(pcs) | 1 | 1 | 1 | 1 |
| G.M.(kgs) | 54 | 66.8 | 72 | 105.9 |
SERVICE OCCASIONS:
Computer
Test equipment
Lighting equipment
Alarm and security system
X-ray equipment
Medical equipment
Duplicator
Broadcasting equipment
Numeric control machine tool
Industrial robot
Photographic processing equipment
Laboratory instrument
Hi-Fi equipment
