50t Single Acting Aluminum Hydraulic Cylinder Jack

Product Description

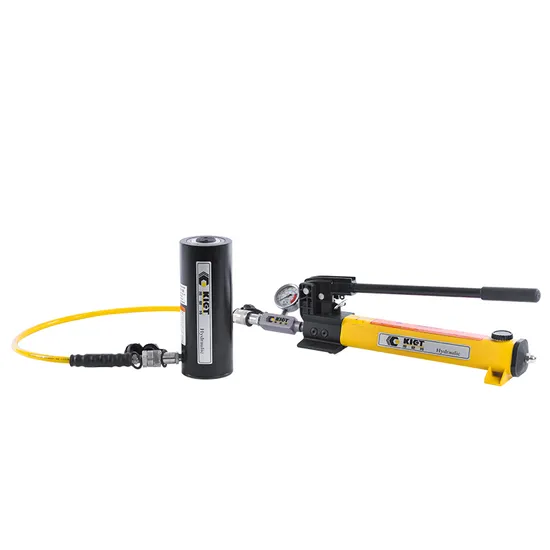

Single Acting Aluminum Hydraulic Cylinder
Product Description
Single-acting aluminum hydraulic cylinders have a wear-resistant oxide, strong coating surface, and a steel base to protect from damage when working on rough surfaces; a single-acting structure is suitable for shipyards, steel plants, construction, power plants, oil and gas fields, and other industries.
Product Parameters

MODEL	CAPACITY (T)	MAX. WORKING PRESSURE (MPA)	CLOSED HEIGHT (MM)	STROKE (MM)	EFFECTIVE AREA (CM²)	OIL CAPACITY (CM³)	OUTSIDE DIAMETER (MM)	WEIGHT (KGS)
KET-RAC-202	20	70	174	50	31.2	156	85	3.6
KET-RAC-204			224	100		312		4.1
KET-RAC-206			274	150		468		4.6
KET-RAC-302	30	70	181	50	44.2	221	100	4.5
KET-RAC-304			231	100		442		5.2
KET-RAC-306			281	150		663		5.9
KET-RAC-502	50	70	186	50	70.9	354	130	8.5
KET-RAC-504			236	100		709		9.8
KET-RAC-506			286	150		1063		11.1
KET-RAC-1004	100	70	271	100	143.1	1431	180	19.6
KET-RAC-1006			321	150		2147		21.9
KET-RAC-1008			371	200		2863		24.2
KET-RAC-1506	150	70	343	150	227	3405	230	33.3

Company Profile
Jiangsu Canete Machinery Manufacturing Co., Ltd. designs and manufactures hydraulic cylinders(capacity covers 10- 1000 tons), synchronous PLC hydraulic systems, hydraulic pumps, hydraulic torque wrenches, electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and CE has consecutively approved our factory, ISO9001:2015. Our customers include many big Chinese industrial companies, such as China Petroleum, Baosteel, China State Grid, Jiangnan Shipyards, and China Railway Construction Corporation. Our synchronous PLC hydraulic system has played a great role in constructing China's high-speed railways. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial areas and construction fields.
We are a manufacturer of hydraulic tools, such as:
• Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting, and tank welding supporting)
• Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial fields such as steel plants, the cement industry, chemical and refinery, bridges, railway construction, and maintenance.
Our Customers
Certifications
Packaging & Shipping
FAQ

1. What's your delivery lead time? For stock items, delivery lead time is within 5 days. For items without stock, delivery lead time is usually within 15-30 days. 2. What's your warranty? The normal warranty is 1 year, but artificial damage and incorrect use are not included. We also offer life-long maintenance. 3. Do you accept customer logos and customization? Yes. We can do OEM & ODM. 4. Are you a manufacturer or trading company? We have been a leading manufacturer of hydraulic tools for over 20 years in China. 5. Can you offer site service? Yes. We offer chargeable site service.

---
